5. About the engine
79
DV2213063A
1) Loosen the fixing bolts(A).
2) Remove the inlet pipe(B).

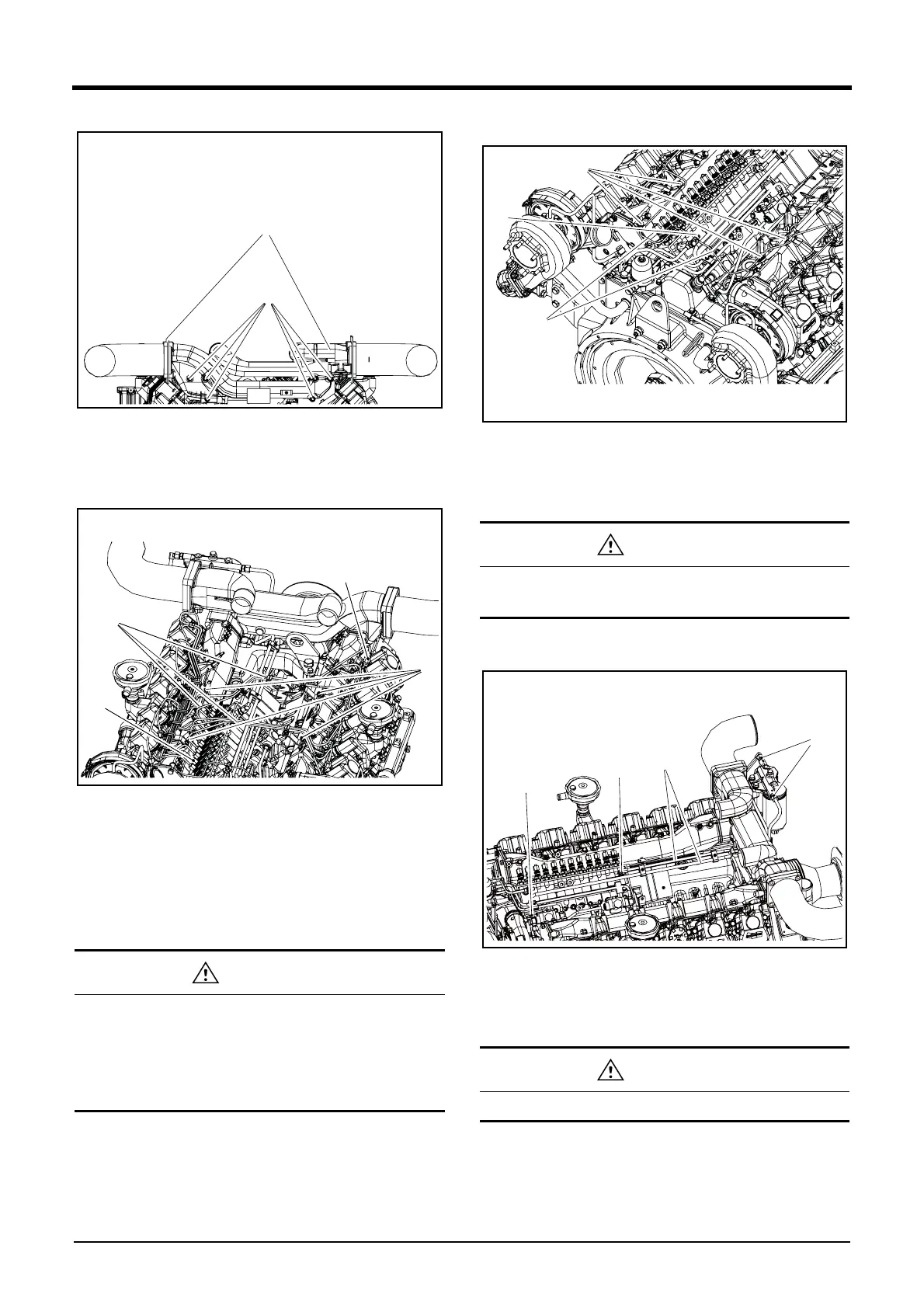

16. Remove the fuel injection pipe assembly.
DV2213064A
1) Loosen the fixing bolts(A).
2) Loosen 12 fuel injection pipe nuts(B) connected the
injector.
3) Loosen 12 fuel injection pipe nuts(C) connected the fuel
injection pump.
4) Remove 3 fuel injection pipe asseblies.
17. Remove the fuel pipe.
DV2213067A
1) Loosen the fixing bolts(A).
2) Loosen the hollow screw(B).
3) Remove the fuel pipes(C).
18. Remove the fuel pipe.
DV2213068A
1) Loosen the fixing nuts(A).
2) Loosen the fixing nuts(B) and (C).
3) Remove the fuel pipe(C)
19. Remove the fuel and oil hoses.
CAUTION
• Be careful not to damage the fuel injection pipes.
• Be careful not to let dust inside the fuel injeciton
pipes.
• Be careful not to let dust inside the fuel injeciton
pipes.
A
B
A
B
C
D
CAUTION
• Be careful not to loss the O-ring.
• Be careful not to damage the fuel pipes.
CAUTION
Be careful not to damage the fuel pipes.
A
B
C
D
B
A
C
