5. About the engine
80
DV2213070A

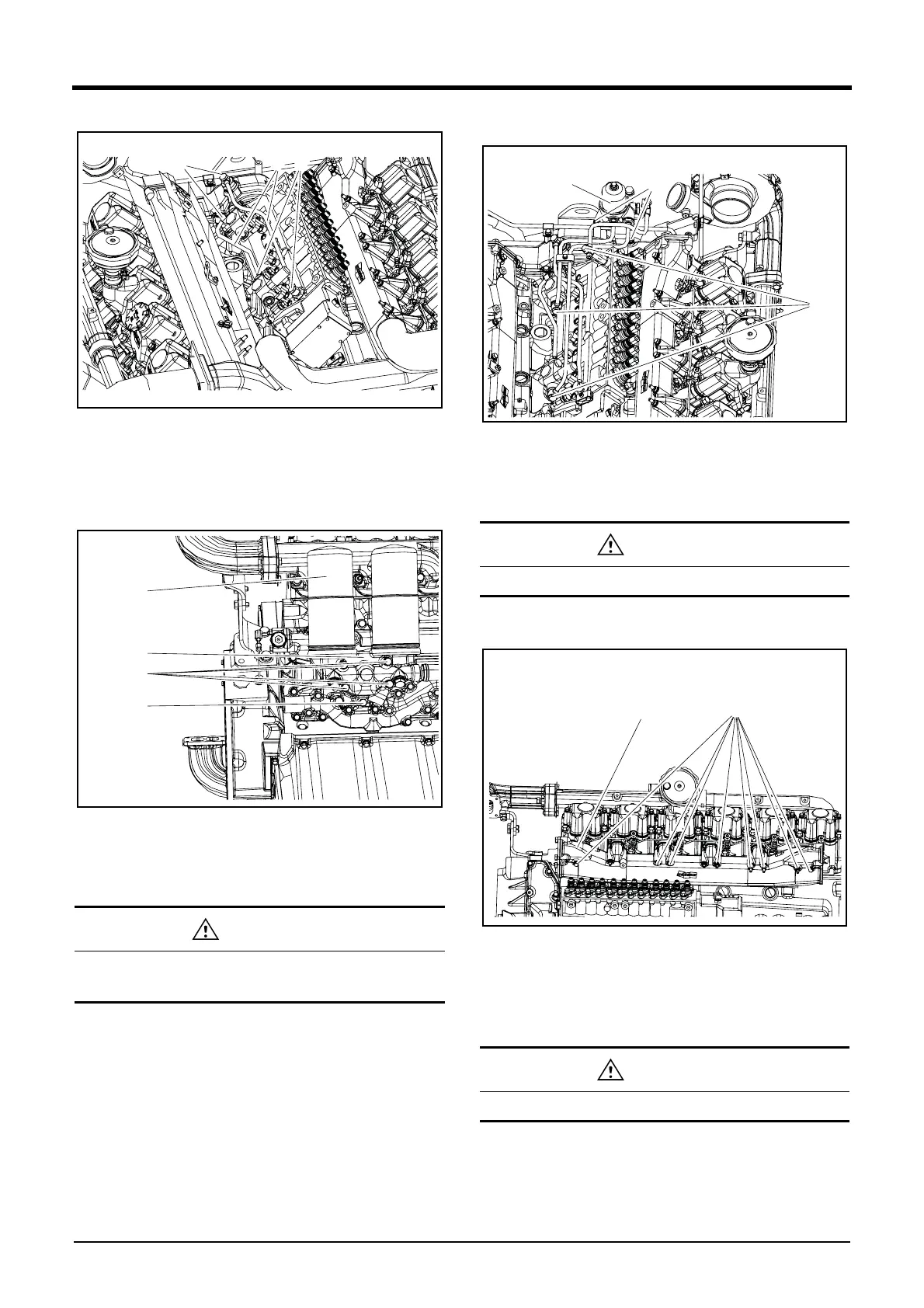

1) Loosen the fixing bolts(A).
2) Loosen the hollow scres(B).
3) Remove the fuel and oil hoses(C).
20. Remove the oil filter assembly.
DV2213082A
1) Remove the oil filter with the chain plier(EF.200-038).
2) Loosen the fixing bolt(B) and (C).
3) Remove the oil filter housing.
21. Remove the fuel pre-filter.
DV2213065A
1) Loosen the hollow screws(A).
2) Loosen the fixing bolts(B).
3) Remove the fuel return pipe and fuel pre-filter.
22. Remove the intake manifold.
DV2213066A
1) Loosen the fixing bolts(A).
2) Remove the intake manifold(B).
3) Remove the other side intake manifold as the same
procedure.
CAUTION
• Be careful not to lose the gasket.
• Be careful not to run down oil.
A
C
B
A
D
B
C
CAUTION
Be careful not to damage the fuel injection pipes.
CAUTION
Be careful not to mix the fixing bolts each other.
C
B
A
A
B
