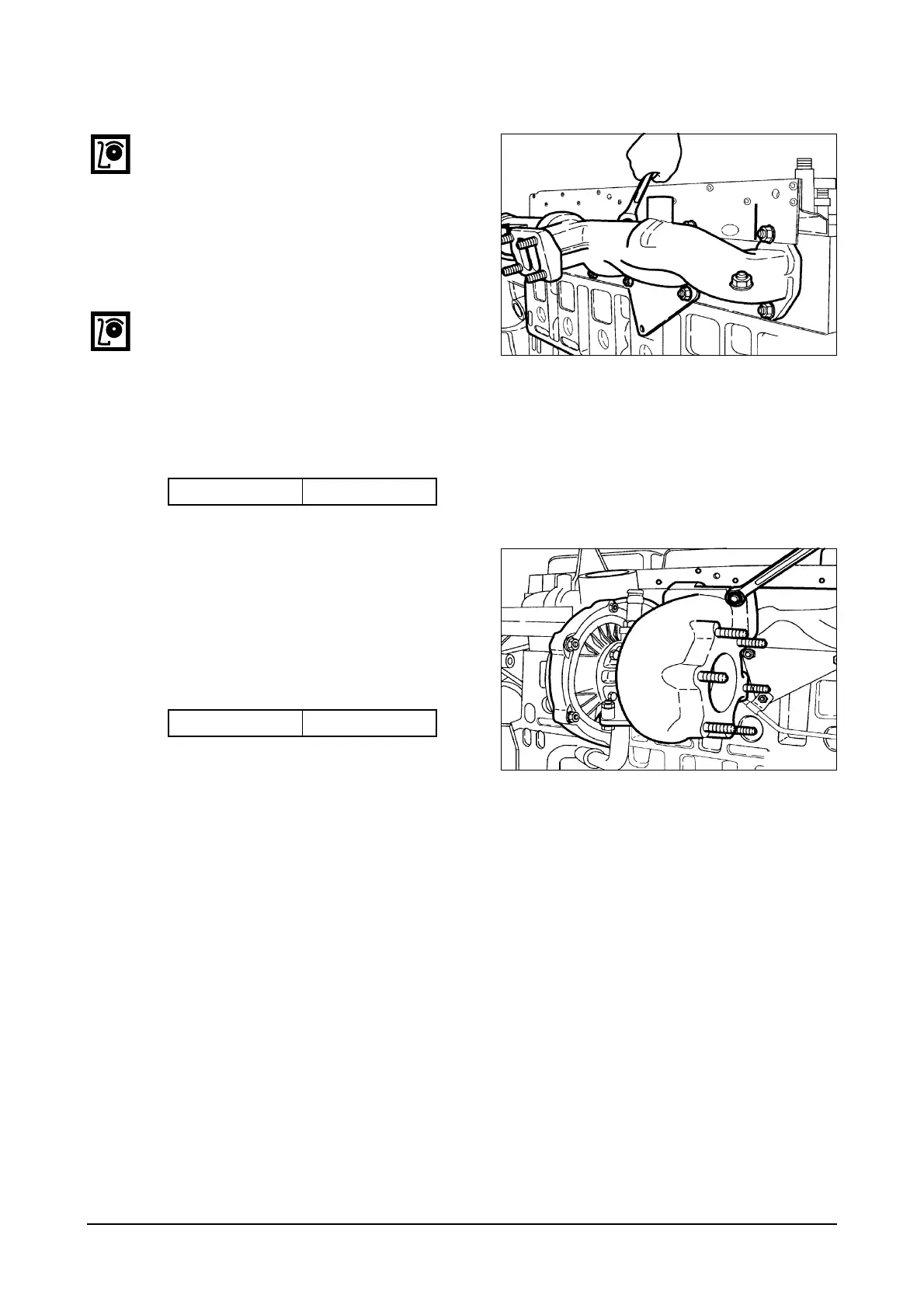

3.3.31. Exhaust manifold
Install the exhaust manifold gasket over
the stud bolts by aligning the gasket
with the exhaust port on the cylinder
head so that the face and back of the
gasket can be positioned correctly.
Semi-assemble the exhaust manifold
and install the heat resisting plate.
Assemble them by tightening the
assembling bolts. The tightening order
of bolts is from the middle to left and
right alternately.
For upper and lower bolts differ in the
length, so use the correct bolts.
3.3.32. Turbocharger
Fit a new gasket over the stud bolts of
the exhaust manifold before tightening
those turbocharger fixing nuts.
Install the oil supply pipe and return pipe.
Tighten the clamps of rubber hose that
is connected air pipe to the intercooler.
Torque 6.2 kg
•
m
Torque 4.4 kg
•
m
