3.5. Electrical System
3.5.1. Electrical component of engine
1) Bus engine

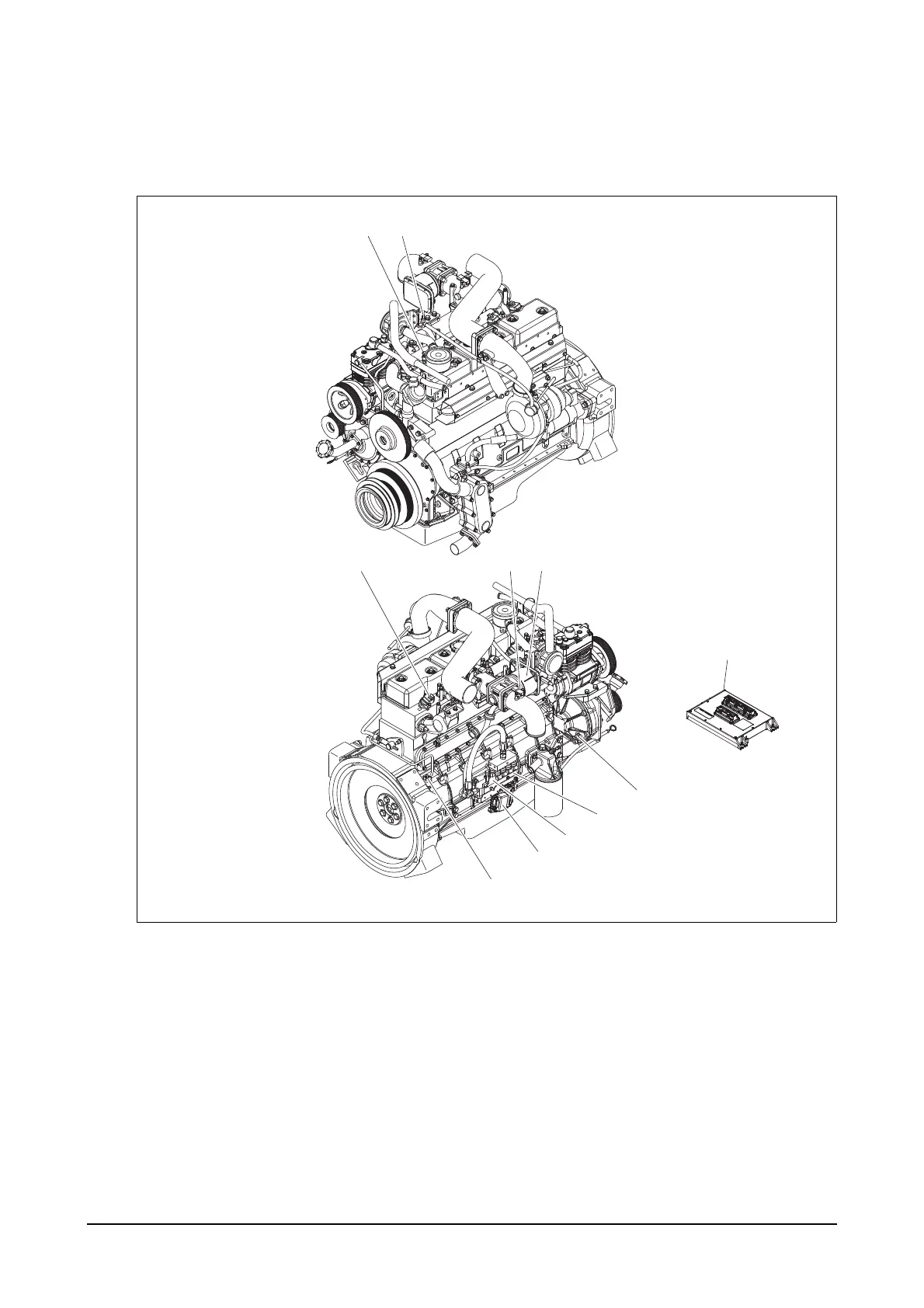

EJ3OM022
78
932
6
11
5
4
10
1
1.
Oil pressure sensor
7.
Turbocharger solenoid valve
2.
Throttle valve
8.
Cooling water temperaature sensor
3.
Pre throttle pressure sensor (PTP)
9.
Ignition coil
4.
Gas Pressure and temperature sensor
10.
Ignition conotrol module (ICM)
5.
Fuel metering valve
11.
Engine control module (ECM)
6.
Ingintion timing sensor
