1.5. Engine Assembly

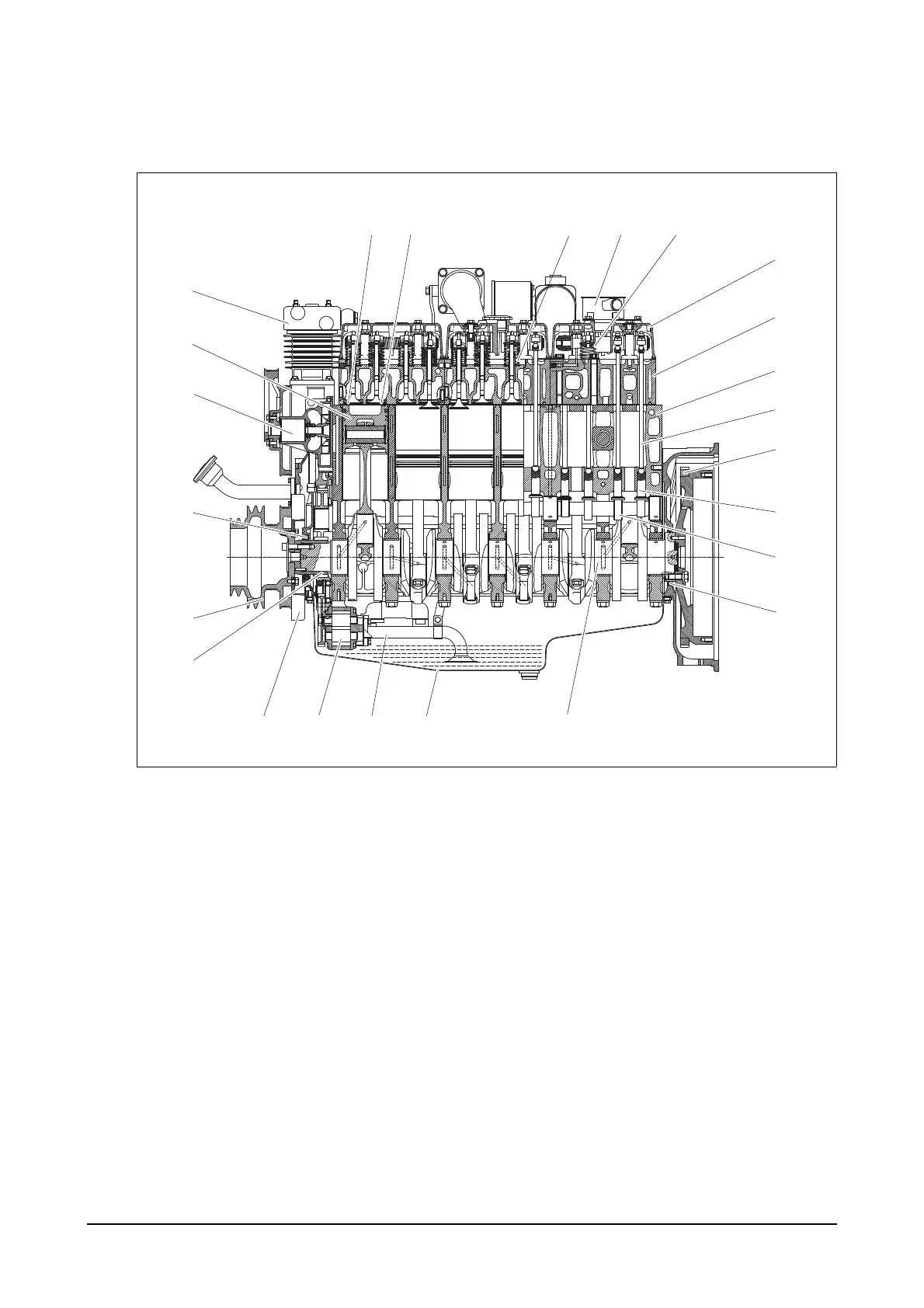

1.5.1. Engine sectional view (longitudinal)
1. Cooling water pump 13. Ring gear
2. Piston 14. Tappet
3. Air compressor 15. Camshaft
4. Intake valve 16. Oil seal(rear)
5. Exhaust valve 17. Oil seal(rear)
6.
Intake valve spring 18. Crank shaft pulley
7. Breather 19. Crank gear
8. Exhaust valve spring 20. Vibration damper
9. Cylinder head cover 21. Oil pump
10. Cylinder head 22. Oil suction pipe
11. Cylinder block 23. Oil pan
12. Push rod 24. Crank shaft
1
2
3
45
67
8
9
10
11
12
13
14
15
16
17
18
19
20 21 22 23
24
EB8O1003
