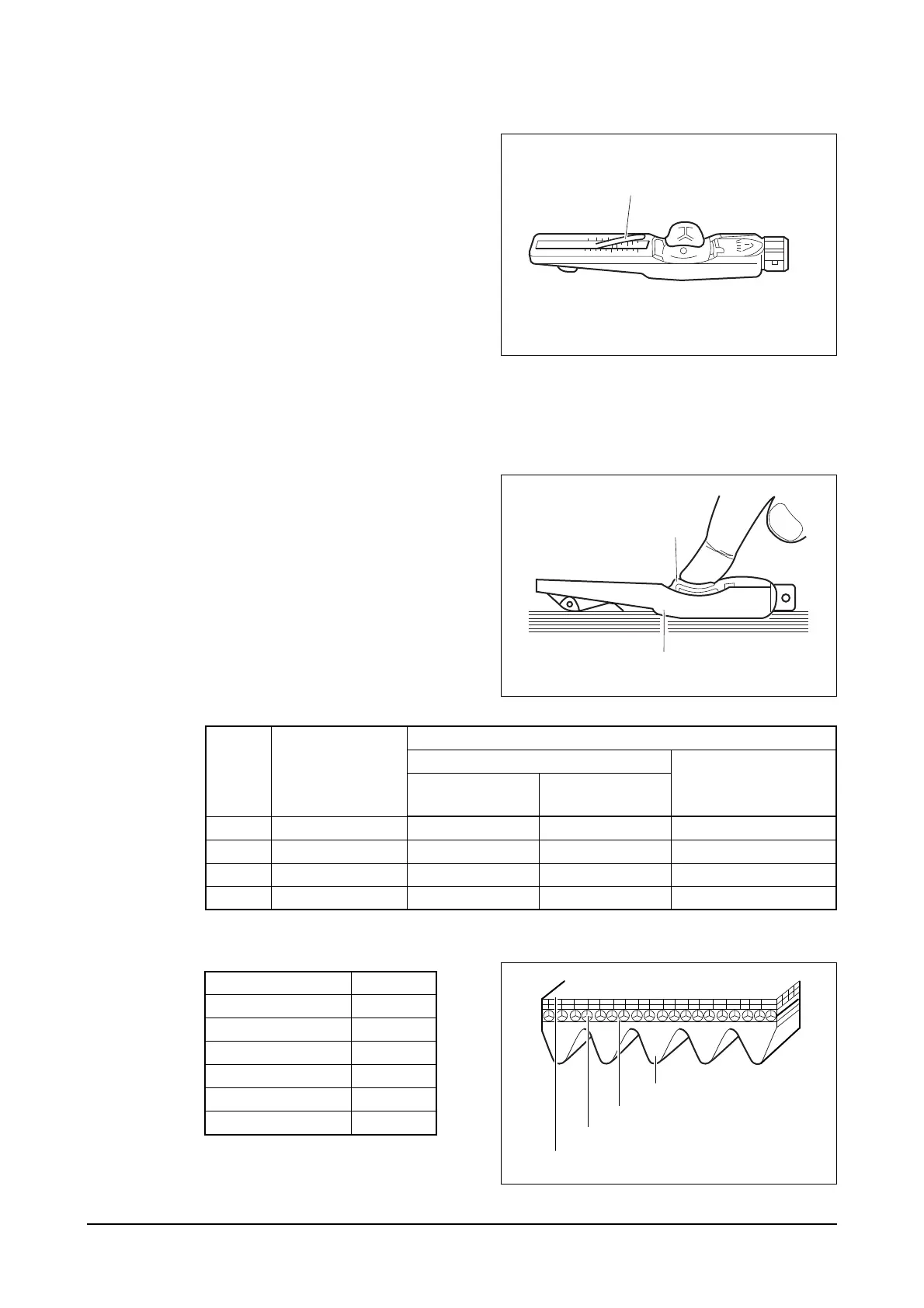

Maintenance of Major Components
- 168 -
4) Measuring tension
(1) Lower indicator arm (1) into the scale.
Apply tester to belt at a point
midway between two pulleys so
that edge of contact surface (2) is
flush with the V- belt.
Slowly depress pad (3) until the
spring can be heard to disengage.
This will cause the indicator to
move upwards.
If pressure is maintained after the
spring has disengaged a false
reading will be obtained!
(2) Reading of tension
Read of the tensioning force of the
belt at the point where the top
surface of the indicator arm (1)
intersects with the scale.
Before taking readings make ensure
that the indicator arm remains in its
position.
V-belt tension
Poly belt tension
Type Drive belt width
Tensioning forces on the tester
new installation
When servicing after
long runing time
Installation
After 10 min.
running time
M
9.5 mm 50 kg 45 kg 40 kg
A
11.8 mm 55 kg 50 kg 45 kg
B
15.5 mm 75 kg 70 kg 60 kg
C
20.2 mm 75 kg 70 kg 60 kg
ED4OM044
No of rib(Rubber)
Oil and heat resistant insulation
Stretch resistant tension member
Oil and abrasion resistant backing
No of rib (PK type) Force(kgf)
320 - 27
427 - 36
534 - 45
641 - 57
748 - 66
859 - 73
