2.3.16. Turbocharger
The exhaust gases of the engine are
passed through the turbine rotor of the
turbocharger.
Air compressor impeller mounted on the
same shaft draws in fresh air and delivers
it at a higher pressure to the cylinders.
The turbocharger is naturally air-cooled.
Lubrication of the main bearing is by oil
under pressure from the engine
lubricating system.
2.3.17. Intercooler
The intercooler is air to air type and has a large cooling fan capacity.
The intercooler life and performance depends on the intake air condition greatly.
Fouled air pollutes and clogs the air fins of intercooler.
As a result of this, the engine output is decreased and engine malfunction is occurred.
So you always check whether the intake air systems like air filter element are worn or polluted.
In order to maintain the heat transfer efficiency of the intercooler, it is necessary to clean it at
regular intervals.

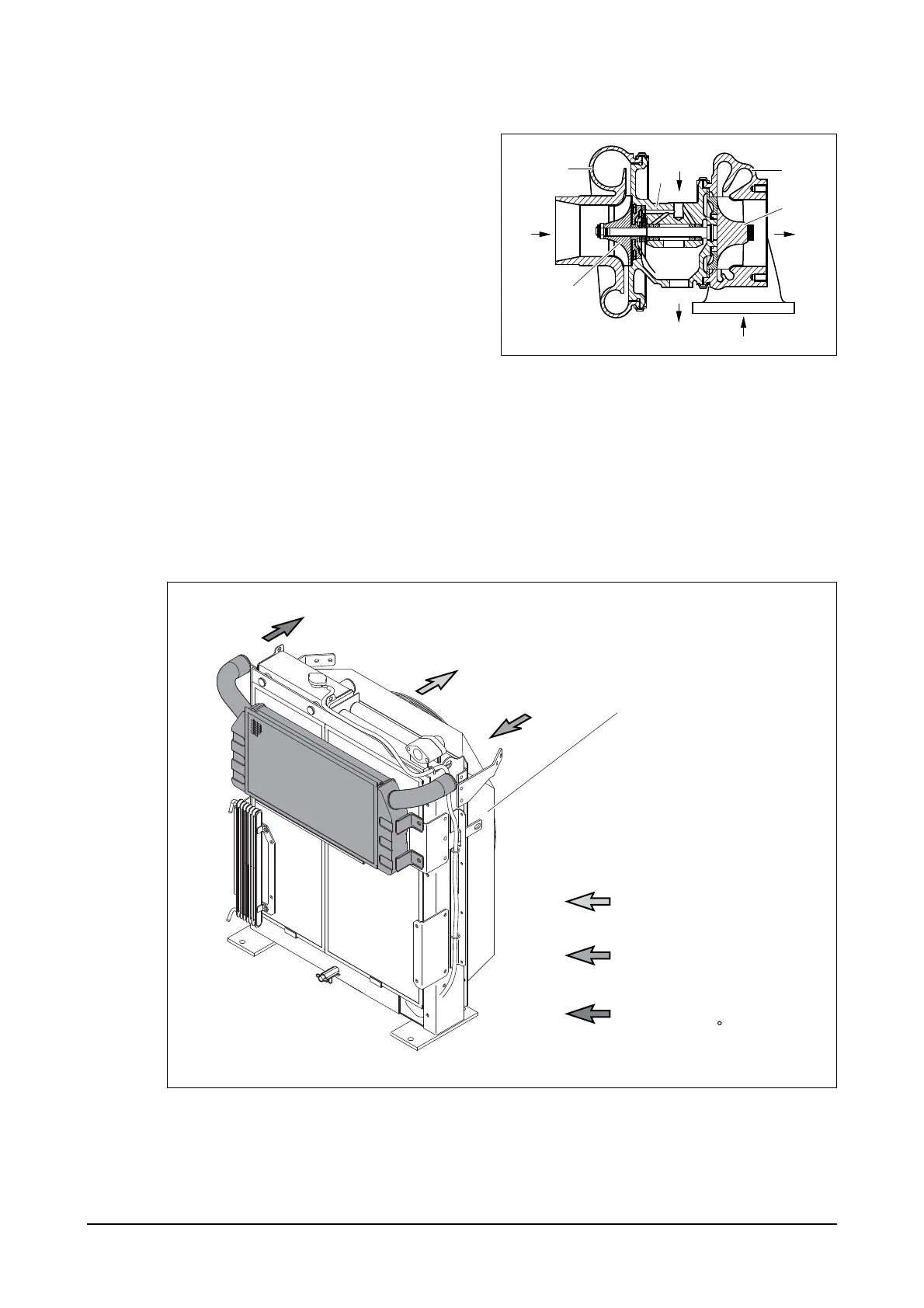

EG9OM025
Air/air intercooler with radiator
(combined radiator)
Air flow by cooling fan
Hot air by turbo charger
compressor
Cooled air to intake
manifold (max. 50 C)
