Maintenance - 49 -

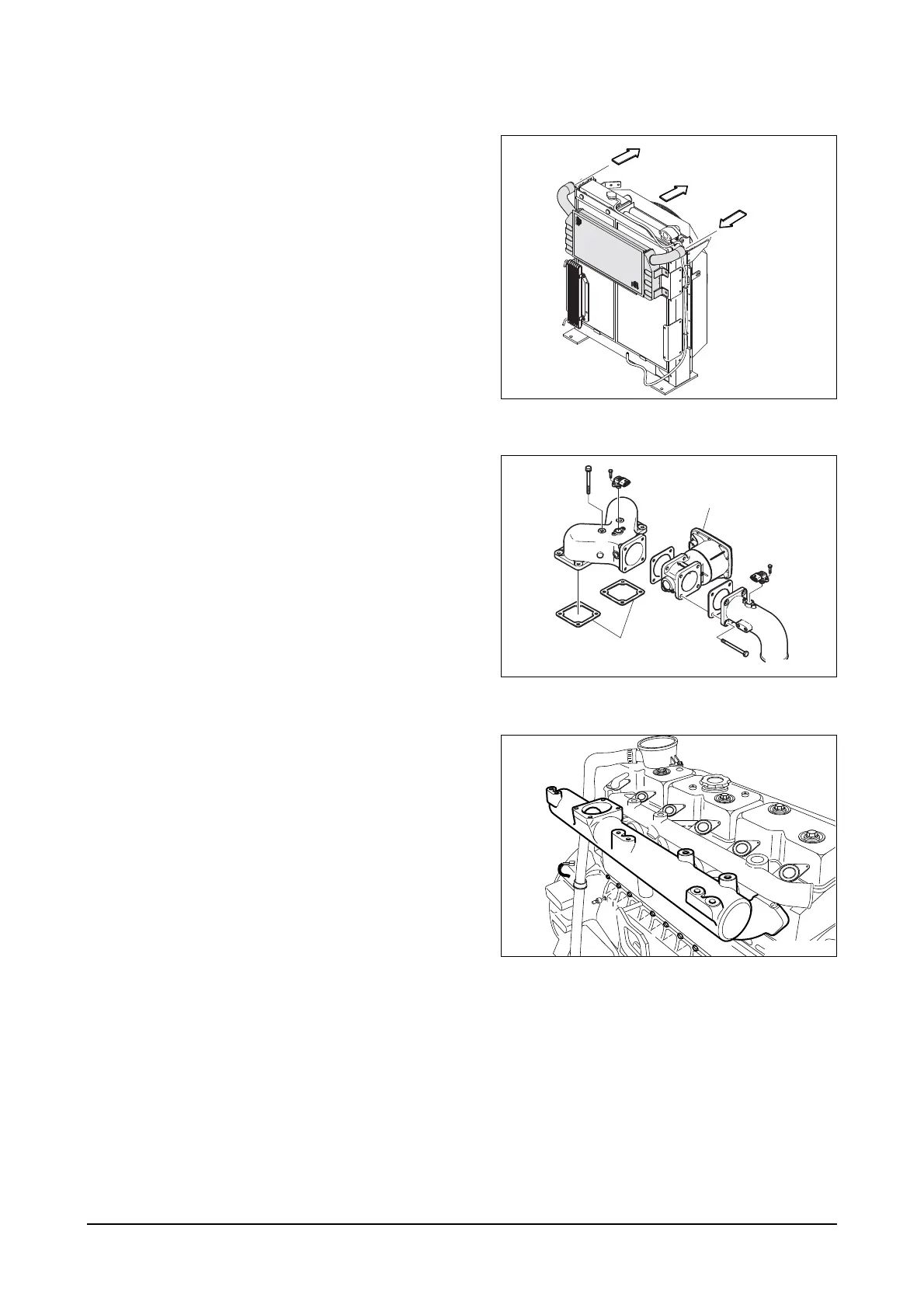

3.1.12. Intercooler
 Tear down the various hoses and air
pipes from the inter cooler.
 Remove the intercooler fixing bolts and
tear it down.
3.1.13. Throttle valve
 Unscrew throttle valve fixing bolts and
remove the throttle valve with gasket on
the intake manifold
3.1.14. Intake manifold
 Unscrew the intake manifold fixing bolts
and remove the intake manfold from the
cylinder head.
 Disassemble the intake manifold gasket
and discard it.
EG9OM040
Air outlet
Air flow
Air inlet
EJ2OM012
Throttle Valve
Gasket
EB8M3003
