WN 800.52.791.6.32
9 12/11 / 006151
7
6
AGILE 150 Wandmontage
wall assembly

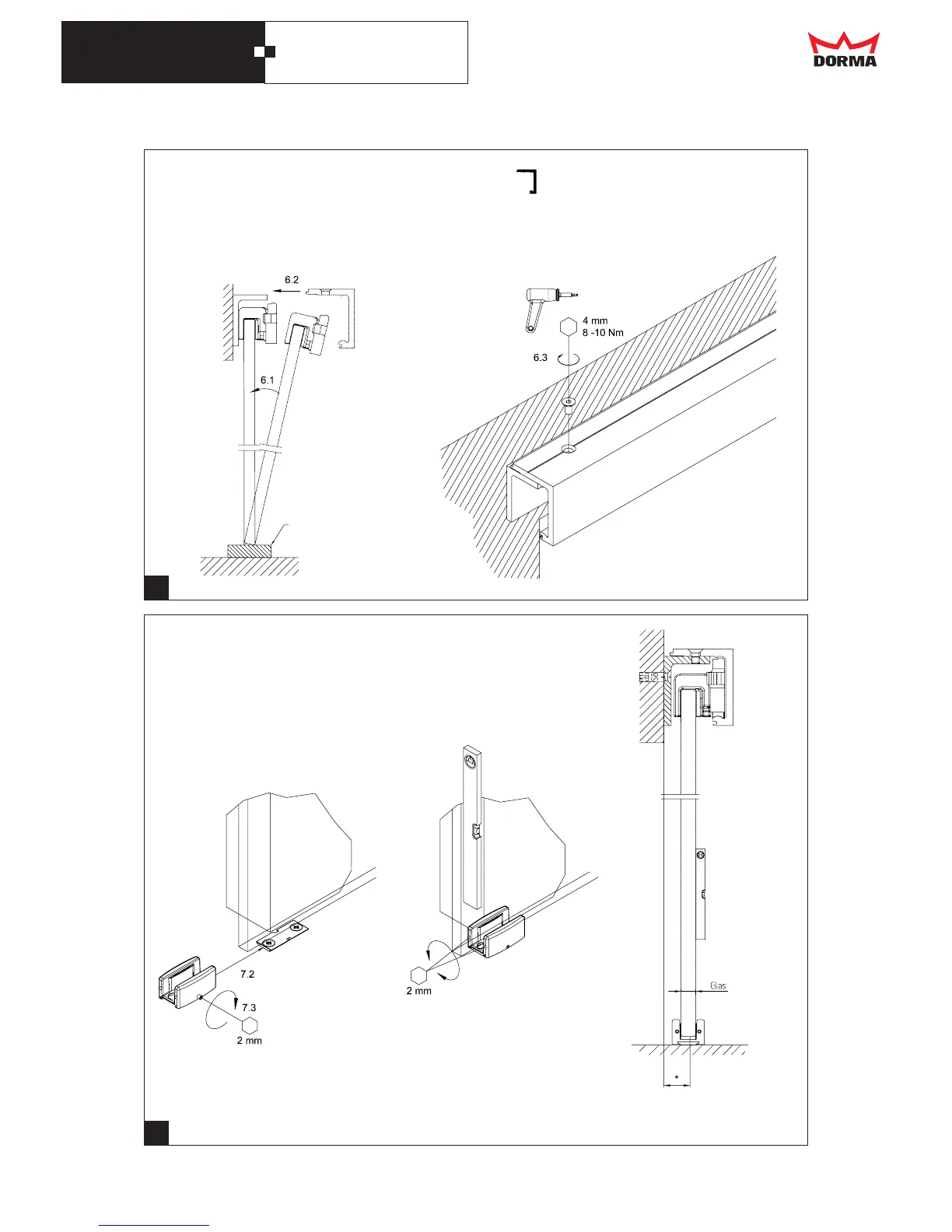

6. Einhängen der Schiebetür und Befestigen der Laufschiene:
6. Fitting of sliding door and fixing of track:
7. Endmontage der Bodenführung:
7. Final installation of floor guide:
6.1 Scheibe auf Klötze stellen. Tür einschwenken und an das Winkelprofil lehnen!
6.1 Position glass onto blocks. Align the door and lean the door against the angle profile!
7.1 Tür vorsichtig öffnen.
7.1 Open the door carefully.
7.4 Einstellen der benötigten Glasdicke
7.4 Adjustment of required glass thickness
Klötze / blocks
* 15 + (Glasdicke / 2)
15 + (glass thickness / 2)
