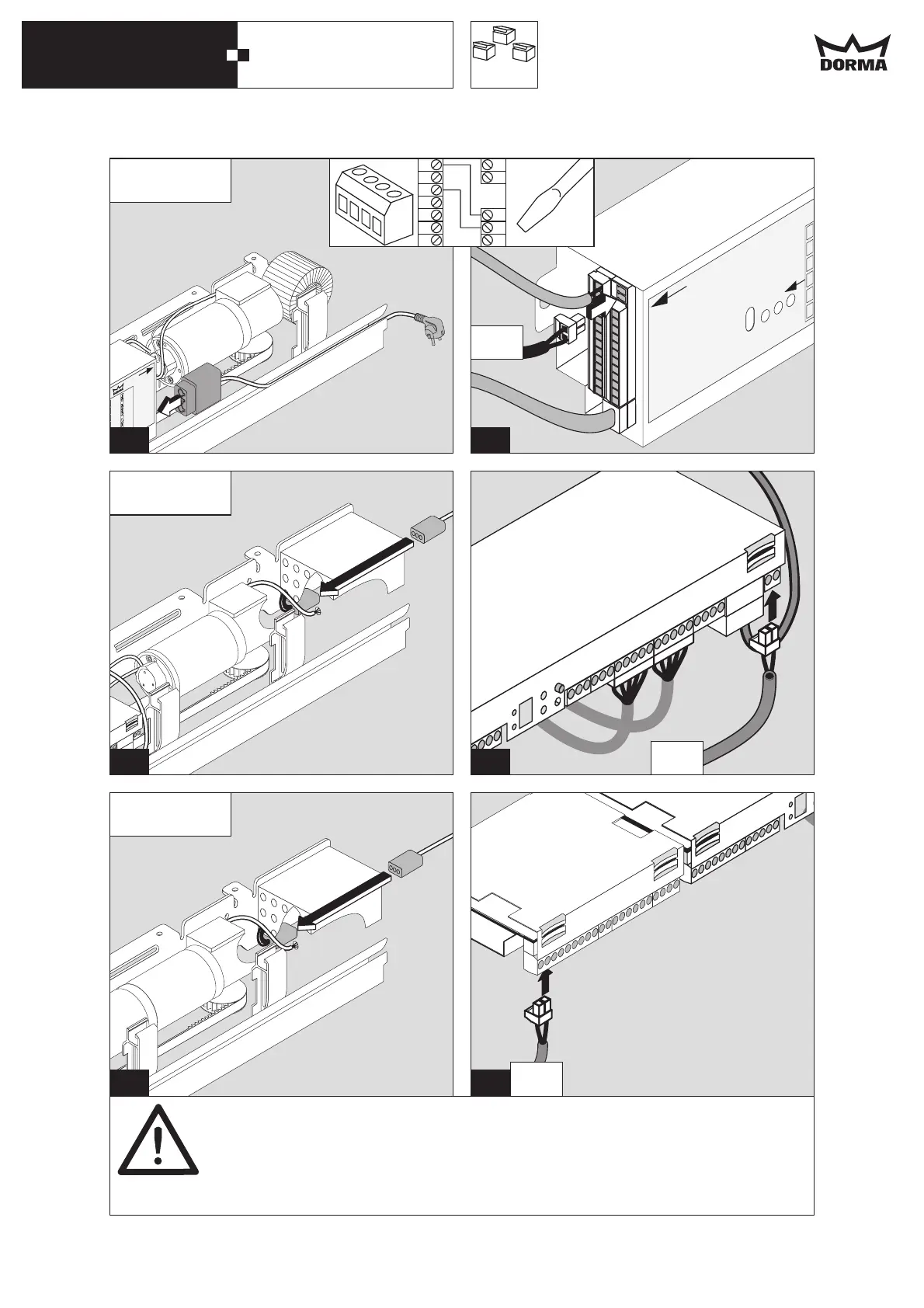

Akku, wenn vorhanden, zum Testbetrieb anschließen.
Ist die Anlage noch nicht an die bauseitige Stromversorgung
angeschlossen: Akku nach dem Testbetrieb abklemmen.
Connect rechargeable battery pack, if available, for testing purposes.
In case the system has not yet been connected to the power supply (by
others): Disconnect rechargeable battery pack following system test.
30V
Drive
Emergency
OFF
After Hour
GND
Partitial
open
Continious
open
Exit
only
Automatic
OFF/LOCK
Program
mswitch
Transform
er seco
ndary side
1 = 28V AC /5A
2 =
Power supply connector
Transformer output
28V AC /5A
Transform
er primary side
Transformer input
1 = 230V
AC
2 = 230V AC
Power supply 230V AC
connector 3 pole
Standard Display
Closing speed
Opening speed
Standardised
operation
Number of
door panels
Motor type
Hold open time
Night-bank
Hold open time
Back up
accu operation
locking in
position Exit only
Mode Australia
Error list
255107-01-1-50
Light barrier
1= +24VDC
2 = GND
3 = Light barrier 1
4=
5=
6=
8=
Power-Off switch
7=
9 = Power Off
Programm switch
10 =
12 = Automatic
14 = Exit
16 = Partial open
18 = Permanent open
20 = GND
Light barrier 2
Light barrier 2
Light barrier 1
+24V DC
GND
Off
Night Bank
11 = +24V DC
13 = GND
Interlocking
15 = Unlocked
17 = Locked
19=+24VDC
Detector
21 = GND
22 = Imp. generator 2
(Int. detector)
23 = 24V DC
24 = Imp. generator 1
(Ext. detector)
Accu
25 = Accu GND
27 =
Motor
26 =
28 =
Accu +24V DC
Motor
Motor
-
+
Select
d
M
34c
33c
34a
33a
34b
33b
Akku
Battery
Akku
Battery
ES 200 Easy
Akku
Battery
ES 200
ES 200-2D
