Dormakaba BTS80 - Templates; Closer Template

dormakaba BTS80, 80F Installation Instructions
08076346 12-2019BTS80 Closers
4
Templates

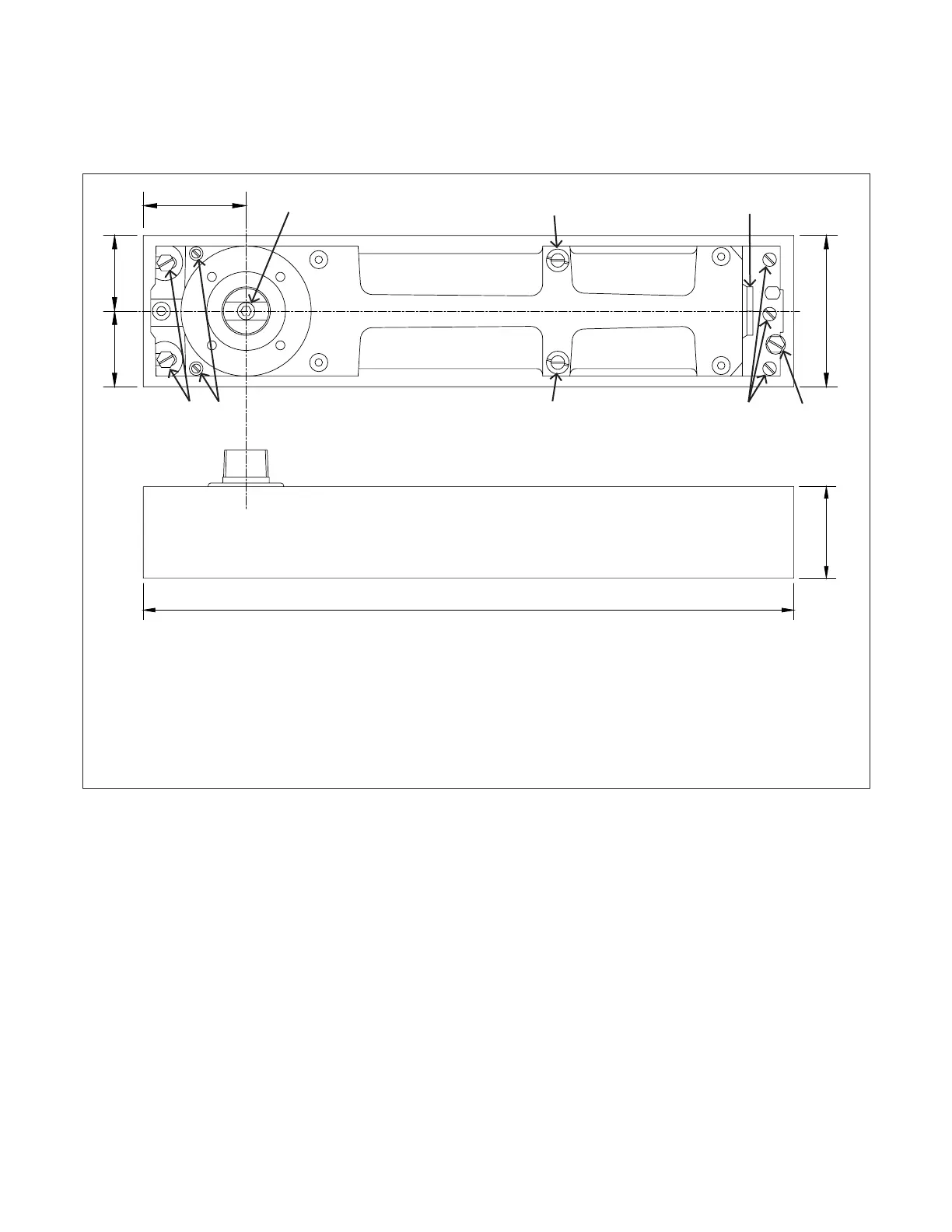

Fig.
. Closer template
2 Templates
2-1/8” + 1/8”
[54 + 3]
1. Do not scale drawing.
2. Dimensions are in inches (mm).
1-9/16” + 1/8”
[39 + 3]
1-9/16” + 1/8”
[39 + 3]
3-1/8”
[78]
13-7/16”
[341]
2-3/8”
[60]
A
F
E
D
B A
C
B
BTS80
A - Fastening screws
B - Height adjustment screws
C - Regulator for start of hold-open (75° - 105°).
D - Closing speed adjustment valve (80° - 0°).
E - Closing speed adjustment valve (180° - 80°), delayed
action, and hold-open valve.
F - Spindle screw
BTS80F
A - Fastening screws
B - Height adjustment screws
C - NA
D - Closing speed adjustment valve (180° - 0°).
E - Closing speed adjustment valve (7° - 0°).
F - Spindle screw
