Dormakaba Confidant RFID - Annex A: Standard ASM Mortise Installation; Check Mortise Handing

Confidant RFID ASM Mortise / Tubular Latch PK3692_T 02-19 13
1.1 Check the Mortise Handing

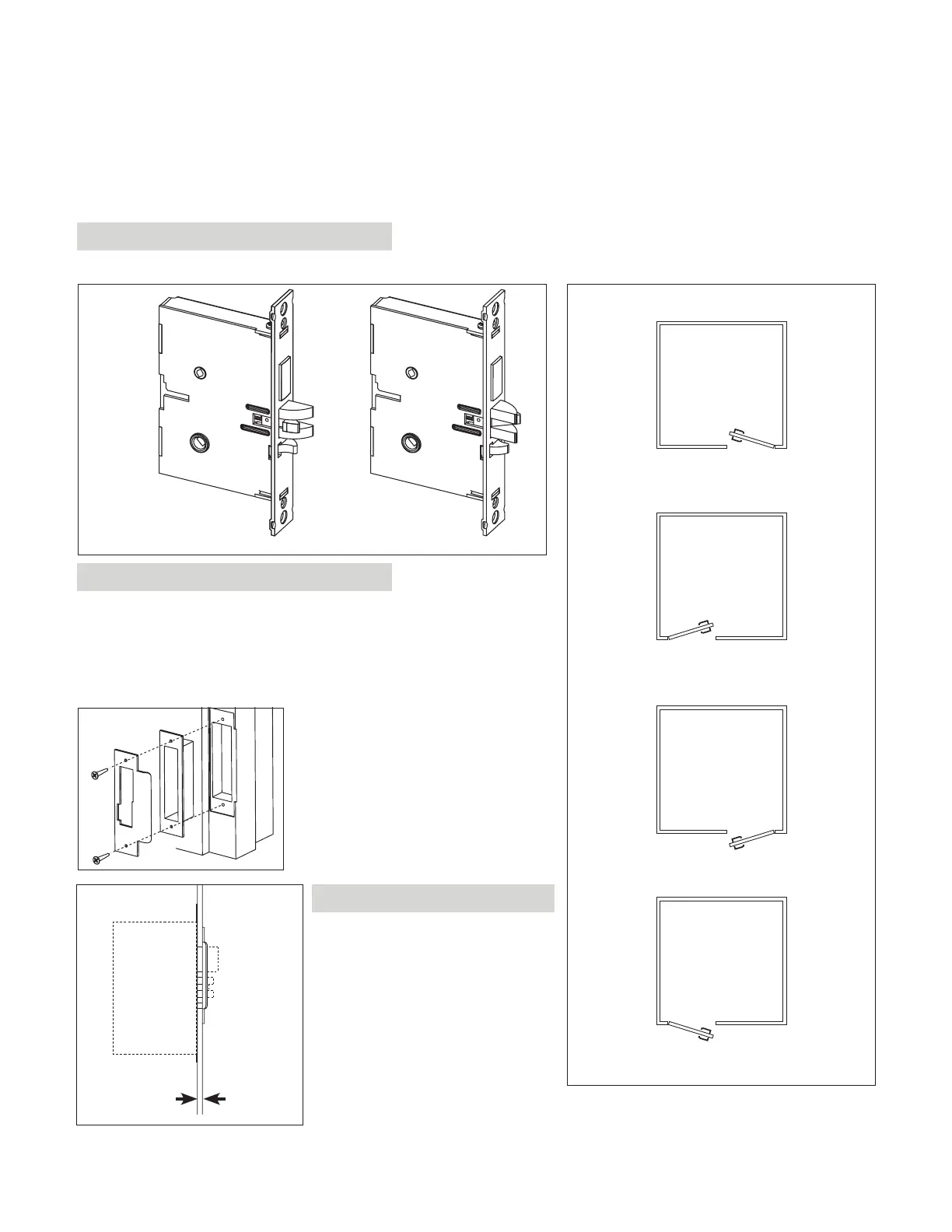

Compare the mortise with the diagram below.
CAUTION
WARNING
IMPORTANT
Refer to 1.2 to change the handing of a field-reversible mortise.
CAUTION
WARNING
IMPORTANT
When strike is installed on wood frames under one inch
thick, wood screws supplied are not adequate. use screws
of efficient lenght to engage the structural stud behind the
frame. Use only the strike and dust box supplied. Use of non-
approved parts may void the warranty.
CAUTION
WARNING
IMPORTANT
For Auto Deadbolt models
the gap between the mortise
front plate and the strike must
not exceed 1/4 “
Annex A- Installation of Standard ASM Mortise
Door Door Frame
Mortise
Max. 1/4"
For LH (left hand) and
RHR (right hand reverse)
For RH (right hand) and
LHR (left hand reverse)
ASM
Door Handing (Top View)
Right Hand (RH)
Left Hand (LH)
Right Hand Reverse (RHR)
Left Hand Reverse (LHR)
