Dormakaba Confidant RFID - Spindle Installation Procedure

6 Confidant RFID ASM Mortise / Tubular Latch PK3621_T 02-19

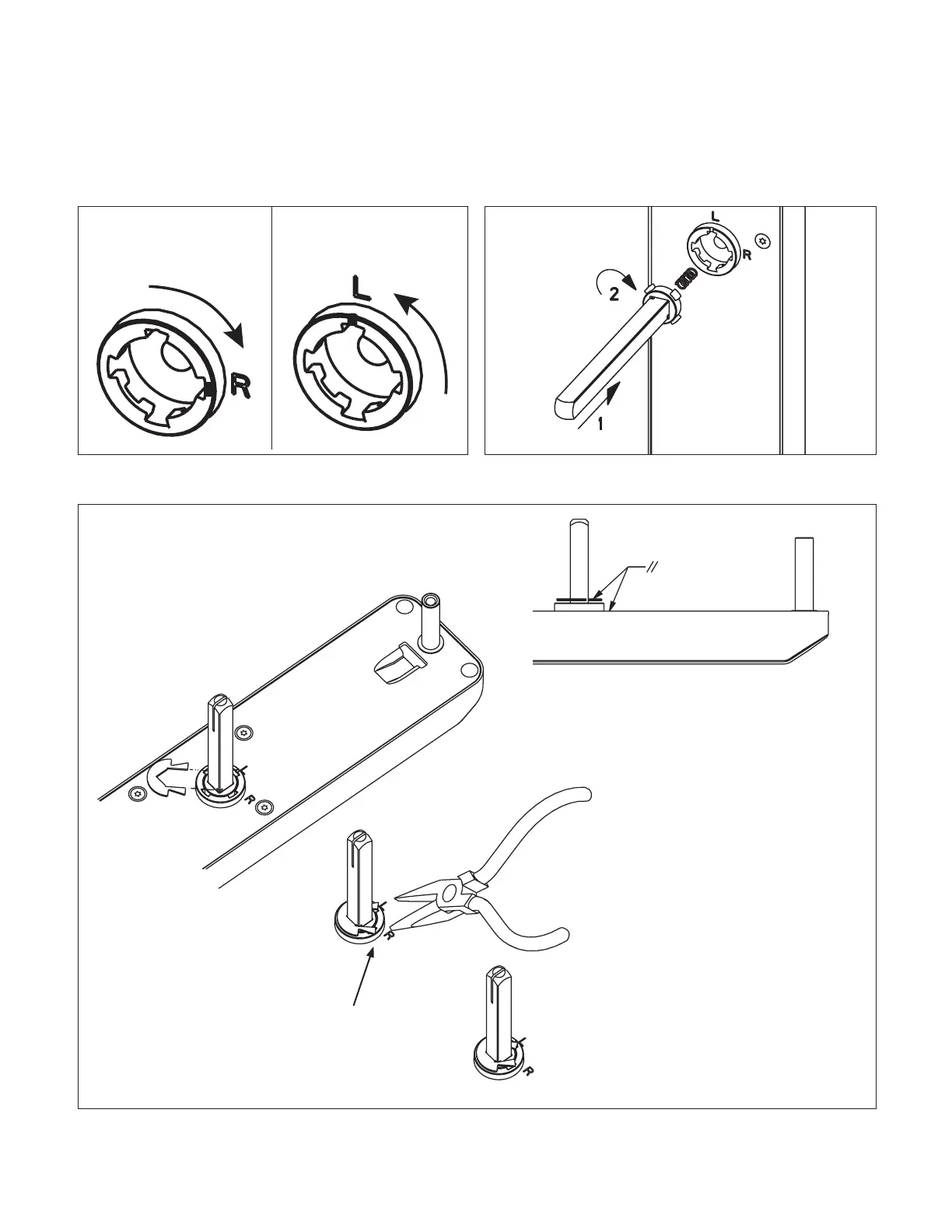

3- Install Spindle
1- Check Handing:
Adjust for Right Hand (RH) or Left Hand (LH)
2- Insert Spindle.
3- Attach and Clamp Spindle Clip to Spindle as shown.
RH
LH
Ensure legs are firmly clamped
against the spindle
