Confidant RFID ASM Mortise / Tubular Latch PK3692_T 02-19 17

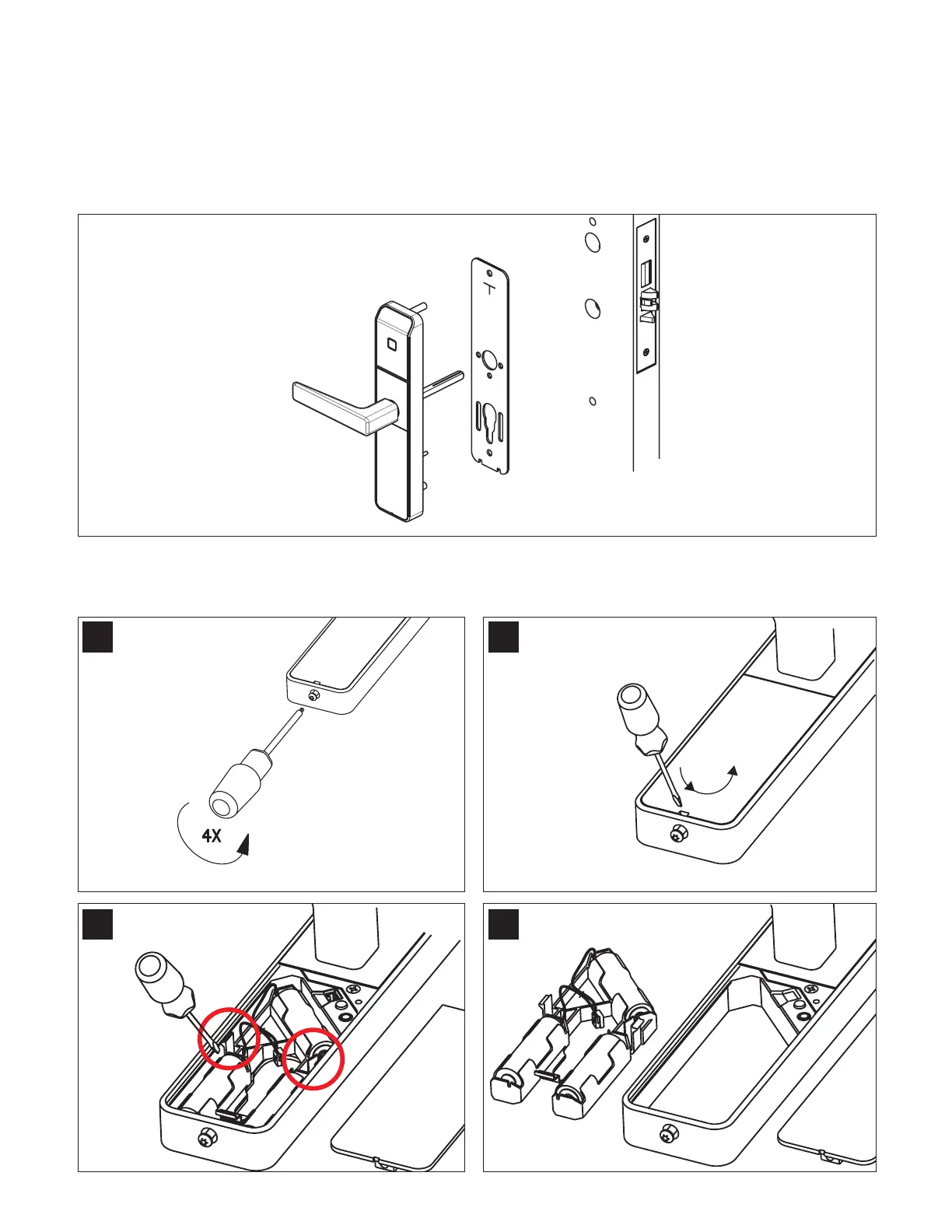

Annex B- Install Outside Housing with Gasket
(Exterior and Ocean Front Versions)
Annex C • Remove Battery Holder
A
C
B
D
Unscrew
Unclip Battery Holder
Remove Door
Remove Battery Holder
