Confidant RFID ASM Mortise / Tubular Latch PK3692_T 02-19 9
2
3
5
4
1
5C- Change The Position of Stopper
if Required (ASM and ADB)
5D- Apply Privacy Thumb Turn Sticker
(applicable only for multihousing locks or locks with automatic dead bolt)
LH
ASM
ASM
RH
Automatic Dead Bolt VersionAmerican Steel Mortise Version
Back Plate Rear Back Plate Front

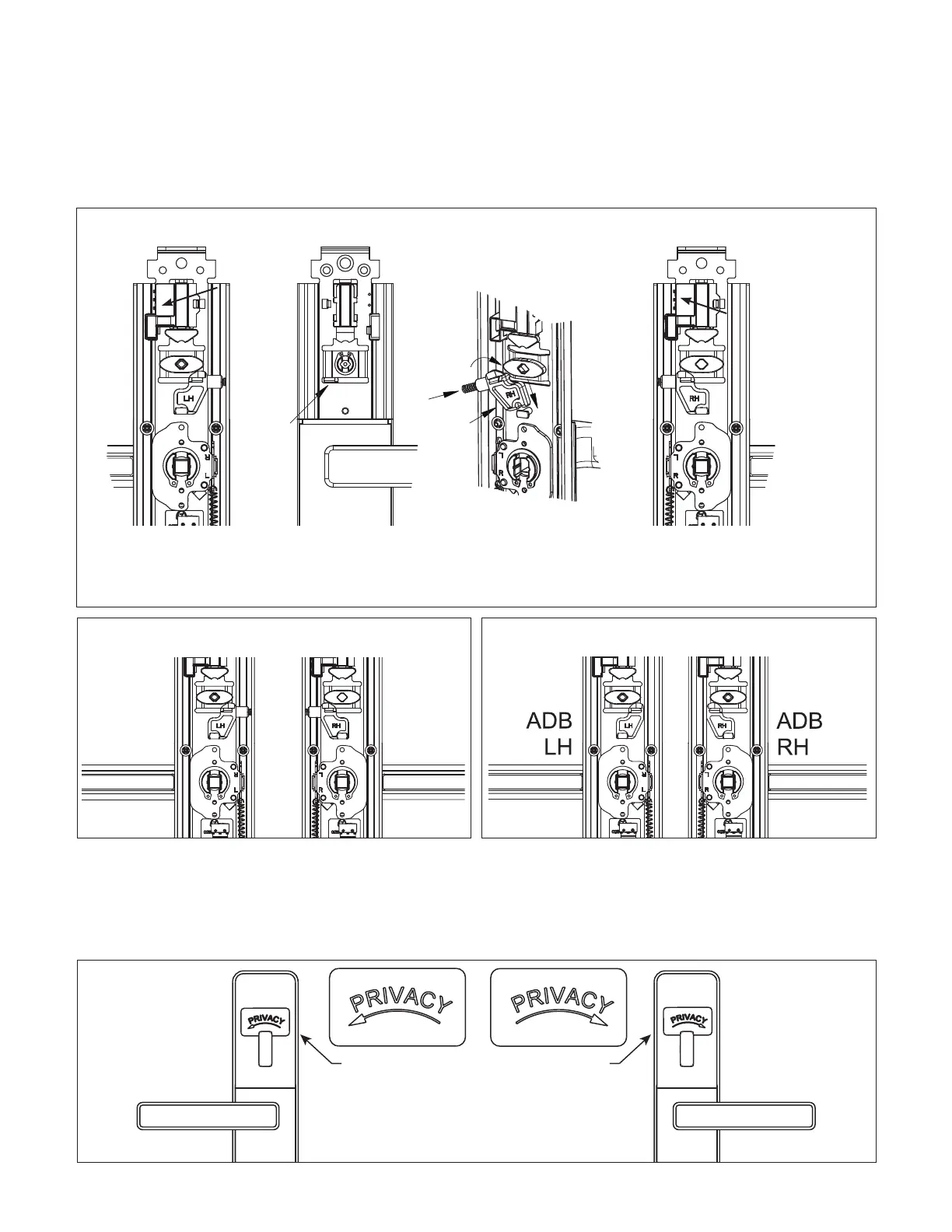

- To change the turn knob stopper from LH to RH, push stopper from FRONT (See 1)
- Assemble it in the REAR. Follow the arrows as shown
- Spring NOT required for Automatic Dead Bolt (ADB) versions
RH/RHR LH/LHR
