Dormakaba Saflok Quantum Pixel User Manual

8 Saflok Quantum Pixel PK3693_T 02-19
Installing the lock trim (continued)

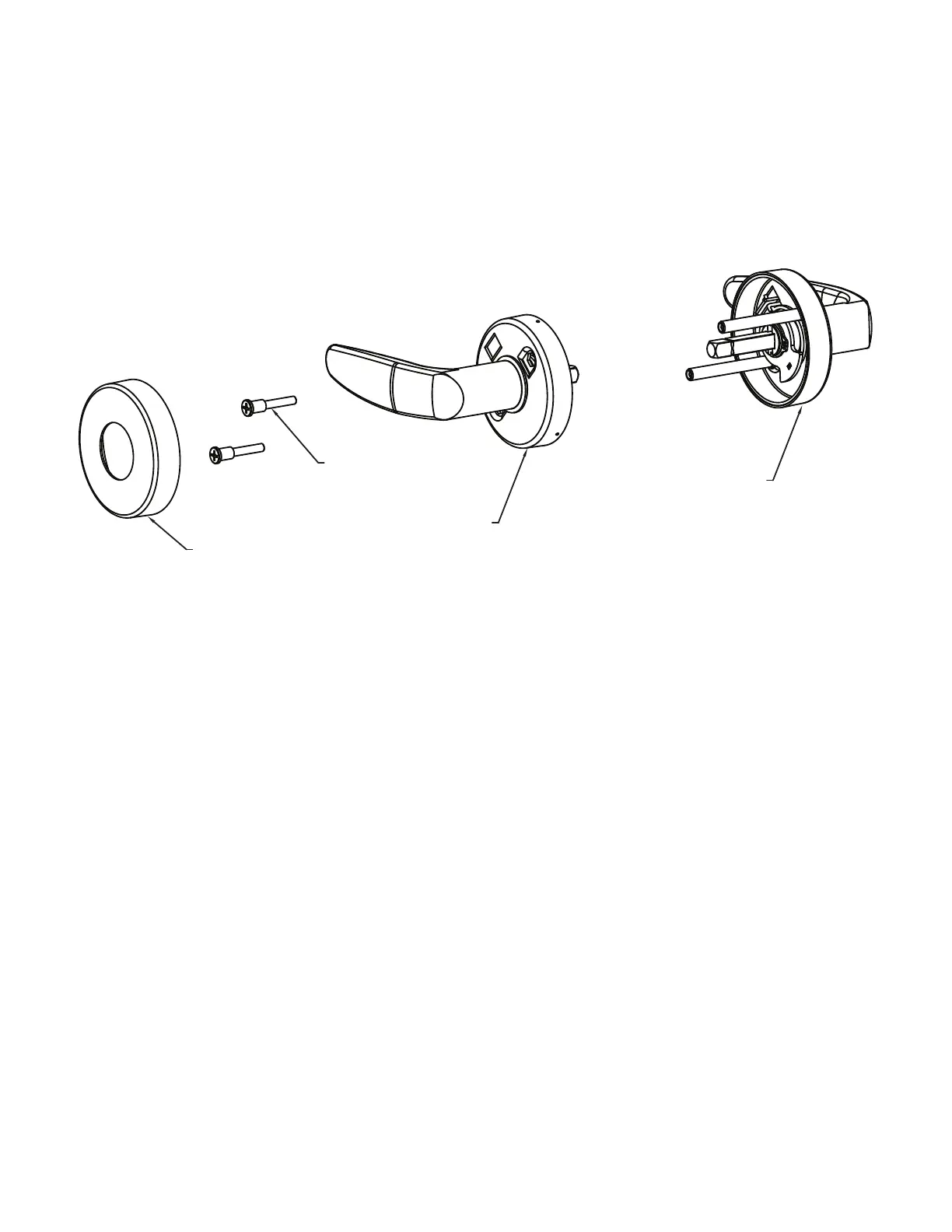

Figure 10 - Exploded Lever Set Assembly
I/S Lever Assy
O/S Lever Assy
I/S Lever Rose
#8-32 Shoulder Screws
5. Lever Set Installation (If supplied by dormakaba)
a. Place the outside lever rose assembly on the outside of the door
b. Place the inside lever rose assembly on the inside of the door
c. Secure to the outside rose assembly using the included shoulder screws
d. Carefully slide the escutcheon over the lever and ensure removal notch is aligned below
lever set for concealment
