SVA 6xxx Commissioning instructions
060652-45532 – 05/20232
2 Safety
2.1 Intended use
The SVA6xxx is a lock for the active door leaf on
2-leaf door units.
• Only use the components approved by dormakaba
for mounting:
- SVI4xxx or SVI5xxx lock on passive door leaf
- SVP-A1100 or SVP-A2100 connection cable
• Only mount combinations of lock and fitting that
have been tested and approved in accordance with
EN179 or EN1125. The list of approved components
can be found in the constancy of performance
certificate at www.dormakaba.com. Other
combinations on request.
• Mounting on fire and smoke protection doors
is only permitted if the usability certificates for
these doors provide for this mounting and if the
requirements are followed.
• The SVA6xxx lock is suitable for use on fire and
smoke protection doors.
2.2 Non-intended use
• The lock must not be opened by third parties. If
the lock is opened by a third party, there is a risk
that safety-relevant functions (e.g. escape/panic
functions) will no longer exist.
• The identification plate on the lock contains
important information required by law and must
not be damaged or obscured.
2.3 Reasonably foreseeable misuse
• There may be no further locking devices on the door
unit.
• Do not make any changes to the door unit that are
not described in this manual.
• If door seals (e.g. profile seals, floor seals) are used,
they must not impede the intended function
•
3 Product description
The SVA 6xxx is a mechatronic lock for the active door
leaf. The SVA lock locks automatically as soon as the
door leaf is closed. In case of emergency, the door can
be opened in the escape direction at any time. The
SVA lock canquery the status of the trip latch, bolt,
door handle/panic bar and the locking cylinder.
The door handle can be electrically engaged or
disengaged on the access side (split follower), e.g.
for door units with access control systems. The door
handle is controlled via GND contact by means of
potential-free locks (operating current) or normally
closed contacts (quiescent current).
Installation example

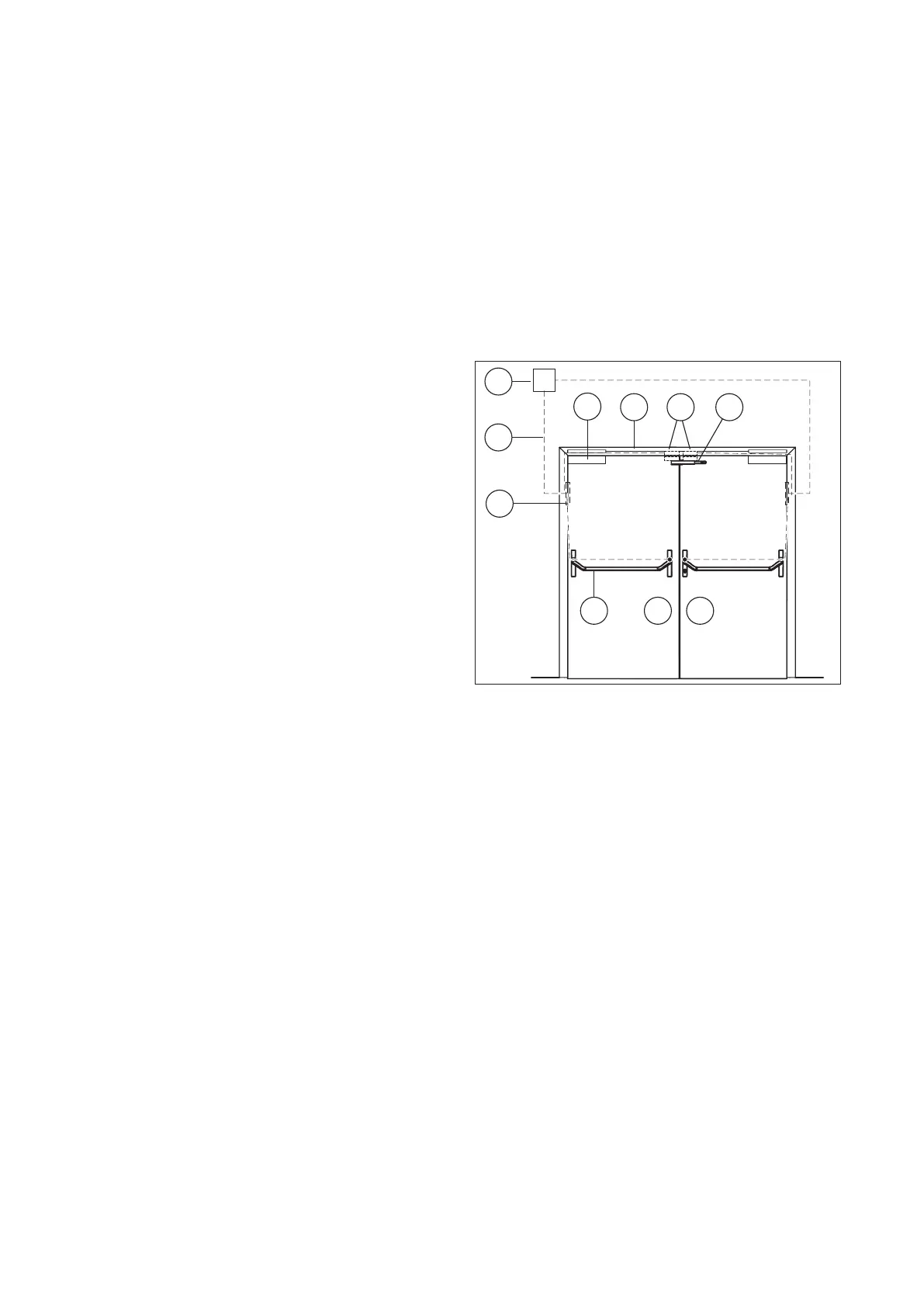

Fig.1
12
7
3
5
6
8
S G
4
109
Door handle controlled installation situation (example)
(1) Active door leaf with SVA6xxx
(2) Passive door leaf with SVI4xxx
(3) Panic door fitting
(4) Cable transfer CT, cable spiral CS and if
necessary detachable cable transfer DT
(5) Connecting cable SVP-A1100/2100
(6) Monitoring (optional)
(7) Door closer
(8) Sequential locking control
(9) Door contact TK (optional)
(10) Carry bar
3.1 Parts included
• SVA lock
• Screws required for mounting
• SVA6xxx commissioning instructions
3.2 Door fittings required
Inner side of the door: Door handle or panic bar
Outer side of the door: Door handle
Locking pin: split 9 mm square, e.g. PHS 55
