Dorner 32MVA1121 Series User Manual

Dorner Mfg. Corp. 12 851-953 Rev. A
Variable Speed VFD Controllers
Installation
AquaPruf® Sanitary Controller
Mounting

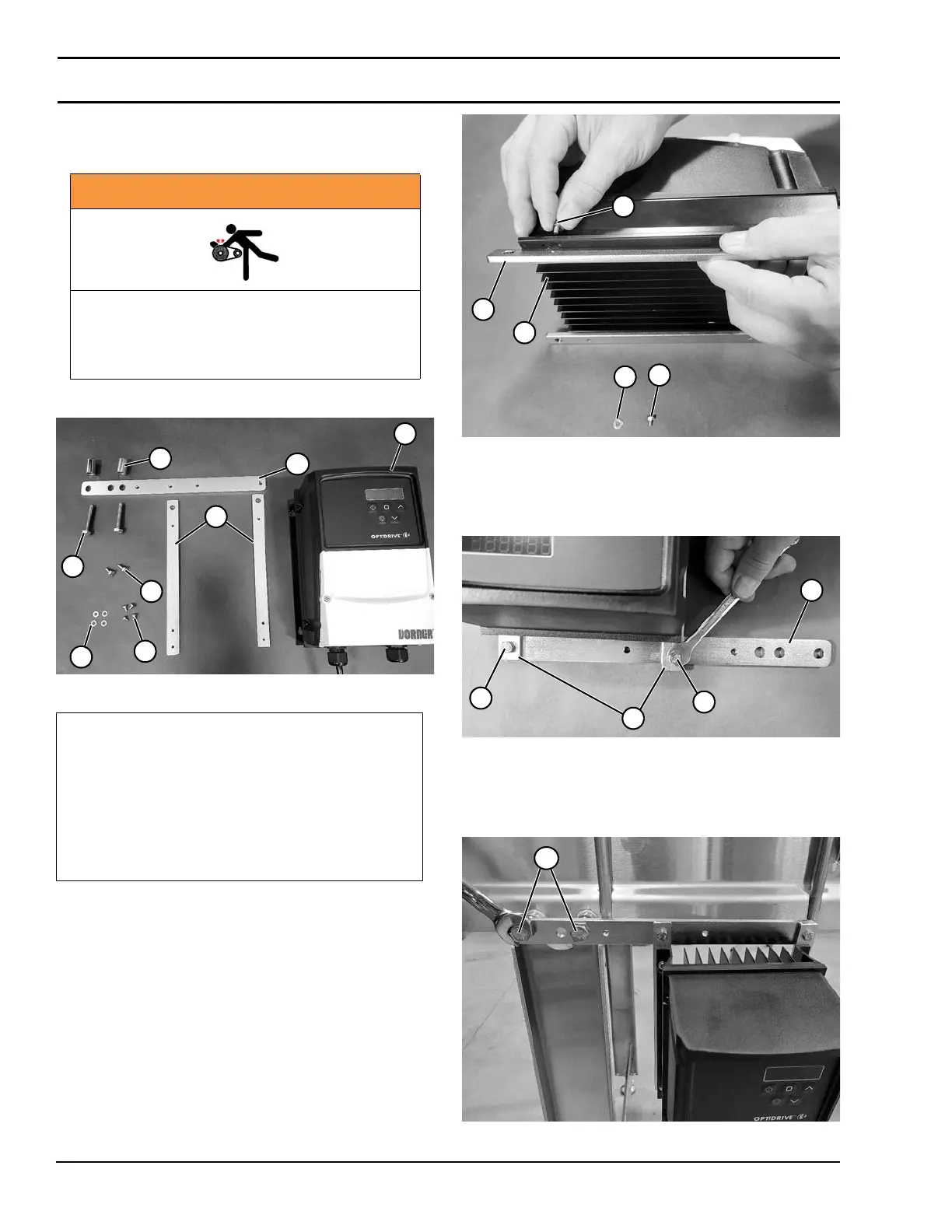

Installation Component List (Figure 23):
Figure 23
Figure 23
1. Attach mounting plates (Figure 24, item 1) to controller
(Figure 24, item 2) with washers (Figure 24, item 3)
and screws (Figure 24, item 4).
Figure 24
Figure 24
2. Attach controller mount plate (Figure 25, item 1) to
mounting plates (Figure 25, item 2) with screws
(Figure 25, item 3).
Figure 25
Figure 25
3. Install assembly to conveyor at stand location by
removing screws and replacing with new screws
(Figure 26, item 1).
Figure 26
Figure 26
A
WARNING
Exposed moving parts can cause severe
injury.
LOCK OUT POWER before removing guards
or performing maintenance.
1 Controller Mount Plate
2 Mounting Plates (2x)
3 VFD Controller
4 Hex Head Screws (4x)
5 Washers (4x)
6 Hex Head Screws (2x)
7 Hex Head Screws (2x)
8 Standoffs (2x)
4
5
6
1
3
2
7
8
1
2
3
4
4
1
3
2
3
1
