Dorner 32MVA1121 Series User Manual

Dorner Mfg. Corp. 8 851-953 Rev. A
Variable Speed VFD Controllers
Installation

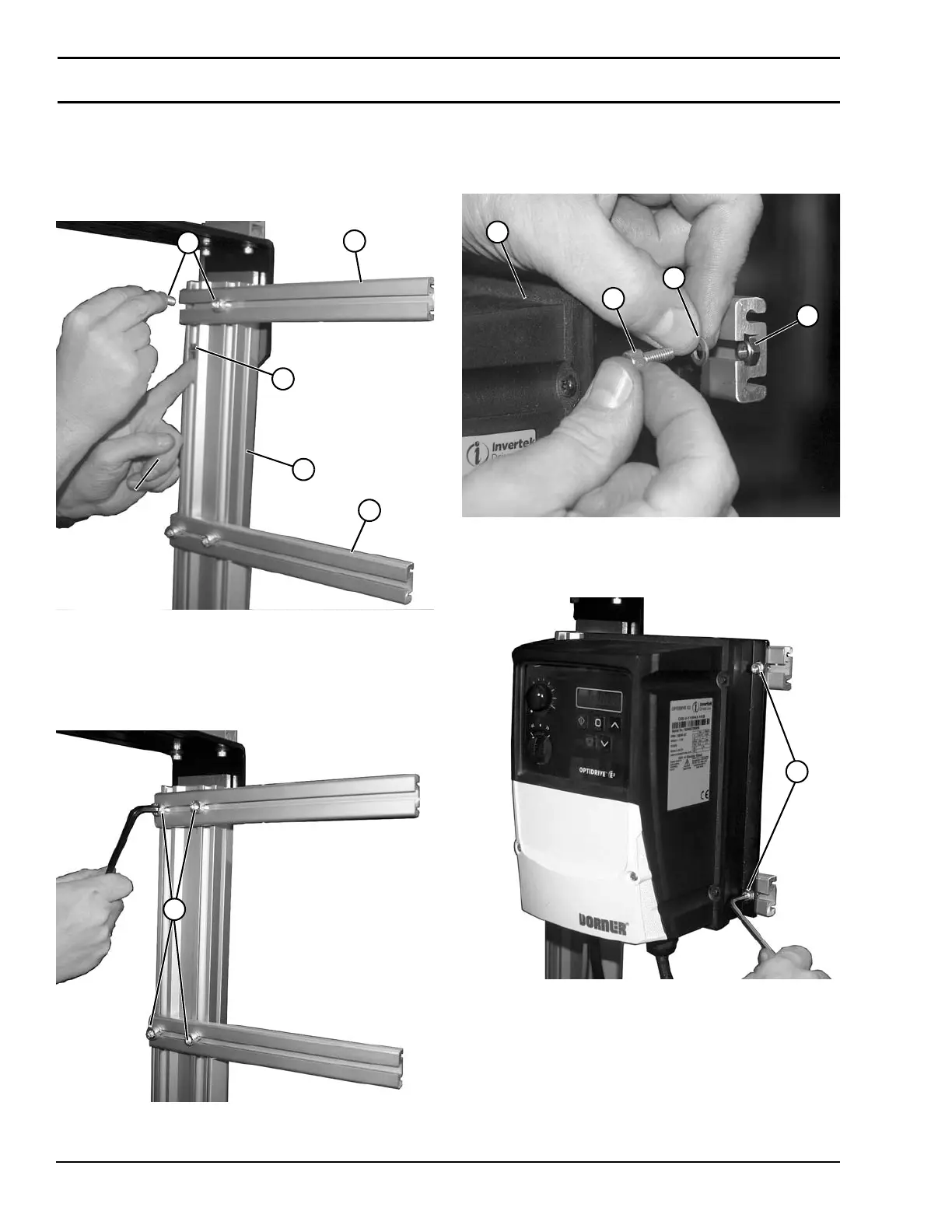

Aluminum Stand Leg Mounting
1. Install two drop-in tee bars (Figure 8, item 1) in stand
leg T−slots. Attach upper mounting rail (Figure
8, item 2) to stand (Figure 8, item 3) with two screws
(Figure 8, item 4).
Figure 8
Figure 8
2. Repeat step to install lower mounting rail (Figure
8, item 5).
3. Tighten four screws (Figure 9, item 1) until snug. Do
not fully tighten at this time.
Figure 9
Figure 9
4. Install two nuts (Figure 10, item 1) into slot in upper
mounting rail. Secure controller (Figure 10, item 2)
into stand leg T−slot with two washers (Figure
10, item 3) and screws (Figure 10, item 4).
Figure 10
Figure 10
5. Repeat step to secure controller to lower mounting rail.
6. Tighten four screws (Figure 11, item 1).
Figure 11
Figure 11
7. Fully tighten the four screws securing the upper and
lower mounting rails onto support stand, installed in
step 3.
5
3
1
2
4
1
1
3
4
2
1
