Variable Speed VFD Controllers
Installation

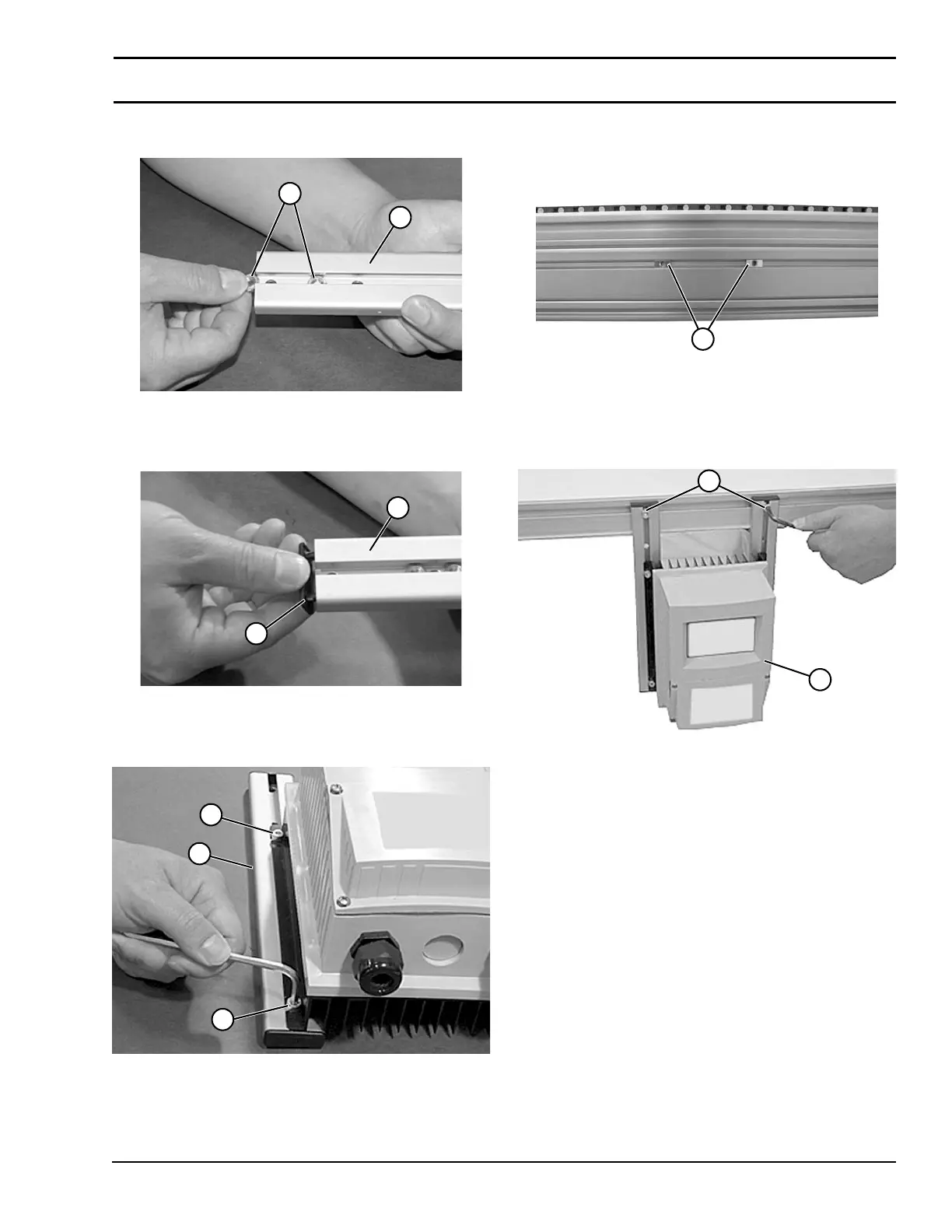

1. Insert two hex nuts (Figure 3, item 1) into slot on each
mounting rail (Figure 3, item 2).
Figure 3
Figure 3
2. Insert end caps (Figure 4, item 1) into ends of mounting
rails (Figure 4, item 2).
Figure 4
Figure 4
3. Attach mounting bars (Figure 5, item 1) to controller
with screws (Figure 5, item 2).
Figure 5
Figure 5
4. Install drop-in tee bars (Figure 6, item 1) in 2200 Series
or 3200 Series conveyor T-slots.
Figure 6
Figure 6
5. Attach controller (Figure 7, item 1) to conveyor with
screws (Figure 7, item 2).
Figure 7
Figure 7
