Dorner 32MVA1121 Series User Manual

Dorner Mfg. Corp. 6 851-953 Rev. A
Variable Speed VFD Controllers
Installation
Required Tools
• 3 mm hex wrench
• 4 mm hex wrench
• 5 mm hex wrench
• 7 mm wrench
• 10 mm wrench
• 13 mm wrench
• 17 mm wrench
Determine Conveyor Type
Select the appropriate section based on your conveyor type:
Industrial Conveyors
• For 2200 and 3200 series conveyors, see “2200 and 3200
Conveyor Mounting” on page 6.
• For aluminum stand leg mounting, see “Aluminum Stand
Leg Mounting” on page 8.
Sanitary Conveyors
• For 7200 and 7300 series conveyors, see “7200 and 7300
Series Controller Mounting” on page 9.
• For AquaGard series conveyors, see “AquaGard® Sani-
tary Controller Mounting” on page 10.
• For AquaPruf series conveyors, see “AquaPruf® Sanitary
Controller Mounting” on page 12.
Industrial Controller Mounting
2200 and 3200 Conveyor Mounting

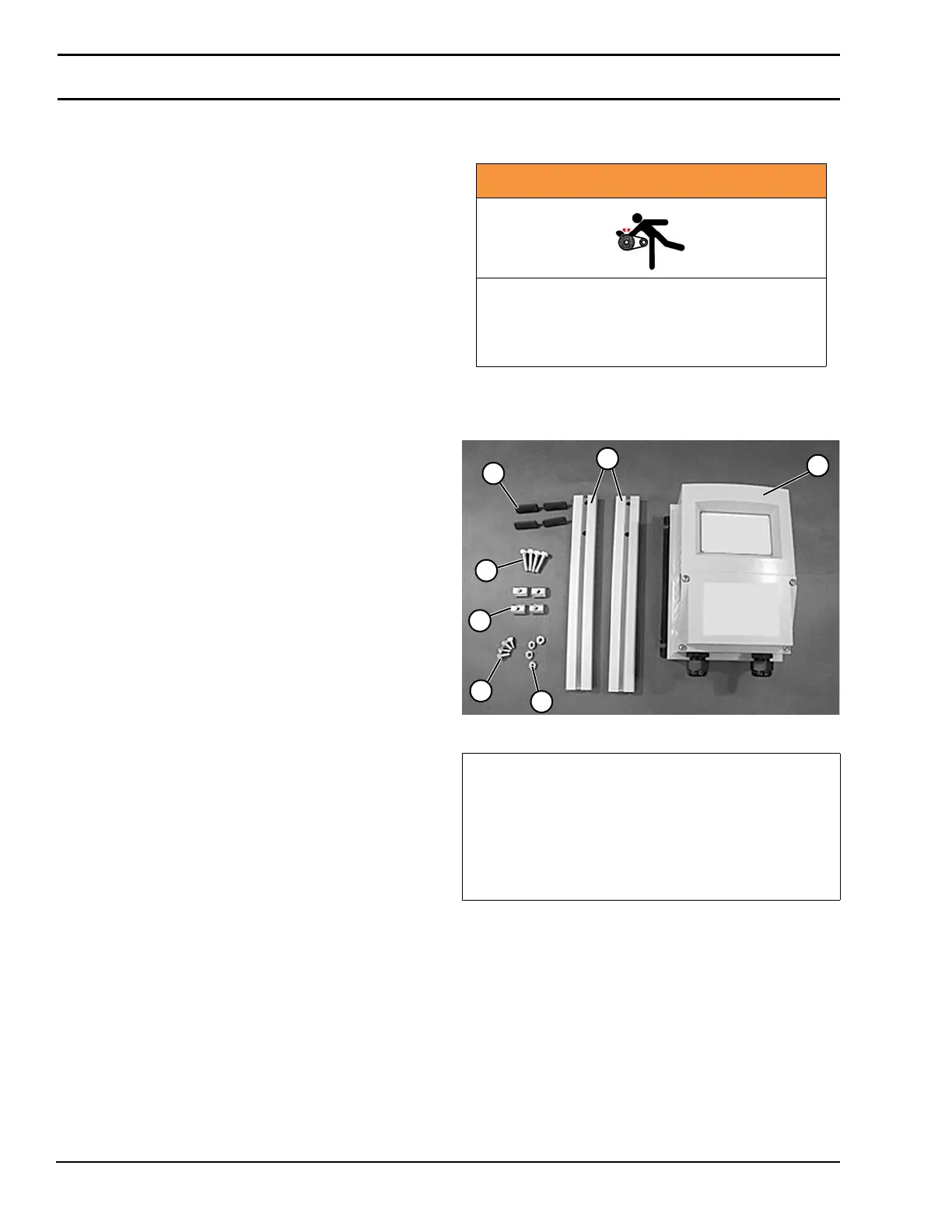

Installation Component List (Figure 2):
Figure 2
Figure 2
A
WARNING
Exposed moving parts can cause severe
injury.
LOCK OUT POWER before removing guards
or performing maintenance.
1VFD Controller
2 Mounting Rails (x2)
3 Drop-In Tee Bars (x4)
4 End Caps (x4)
5 Hex Nuts (x4)
6 Socket Head Screws (x4)
7 Socket Head Screws (x4)
1
3
2
4
5
6
7
