MACHINE FOR BINDING BANKNOTES AND SECURITIES (BANDING MACHINE) DORS 500
5
1. Control panel.
2. Fourdigit LED display.
3. Device ready indicator.
4. Table.
5. Proximity sensor No. 1.
6. Loop holders.
7. Back stop.
8. Side stop.
9. Back stop screw.
10. Side stop screw.
11. Rotary grip (shank).
12. Loop availability sensor.
13. Proximity sensor No. 2
14. Front cover.
15. Power connector.
16. Power switch.
17. Fuse.
18. Connector for additional devices.
19. Tape start sensor (Start IR tran
sistor unit, receiver)
20. Tape start sensor (Start IR diode
unit, backlight)
21. Heating element upper position
sensor
22. Heating element lower position
sensor
23. Heating element guide bearing
24. Heating element guide bearing
25. Tape drive motor
26. Shank drive motor
27. Loop mitigator
MACHINE FOR BINDING BANKNOTES AND SECURITIES (BANDING MACHINE) DORS 500
4

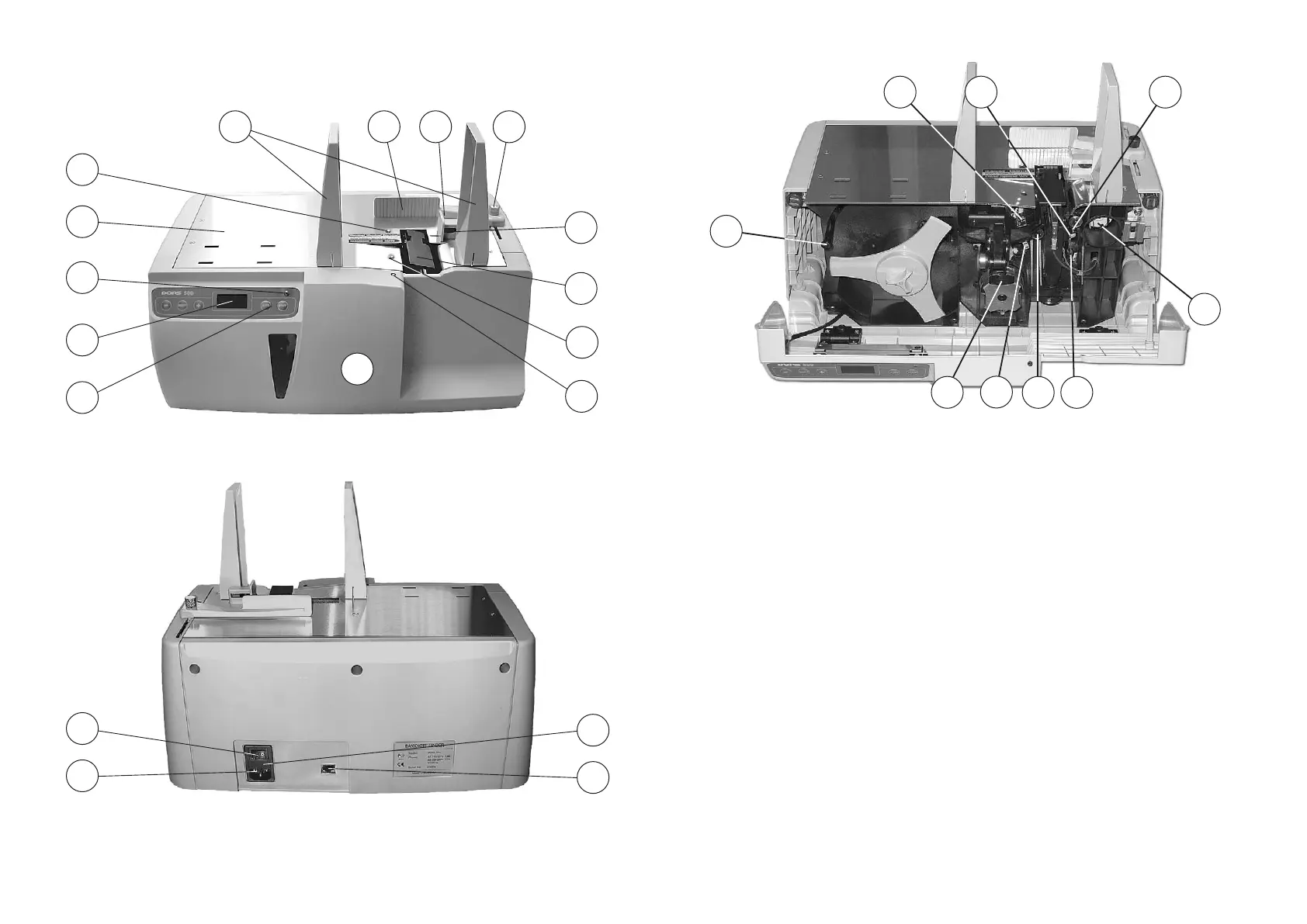

APPEARANCE
Fig. 1. Front view
Fig. 2. Rear view
1
15
16
18
17
2
3
4
5
6 7 8 9
10
11
12
13
14
Fig. 3. Front panel open view
27
19
24 22
21 23
26
20
25
