dosatron D8R - Fitting the Suction Tube

DOSATRON 49
FITTING THE SUCTION TUBE
If the DOSATRON has already been used, please imperatively refer to
CHAPTER 3 : PRECAUTIONS.
- Unscrew the dip tube retainer (Fig. 13-E) at the bottom of the injection
assembly and thread it onto the dip tube.
- Push the tube onto the dip tube insert as far as it will go and screw up the nut
by hand.
- In the case of the tube Ø 20 (D8RV), unscrew the screw with a screwdriver
(Fig. 14-C) to loosen the tube clamp.
- Slide the tube onto the barb as far as it will go.
- Tighten the clamp around the tube to hold it air tight on the barb.

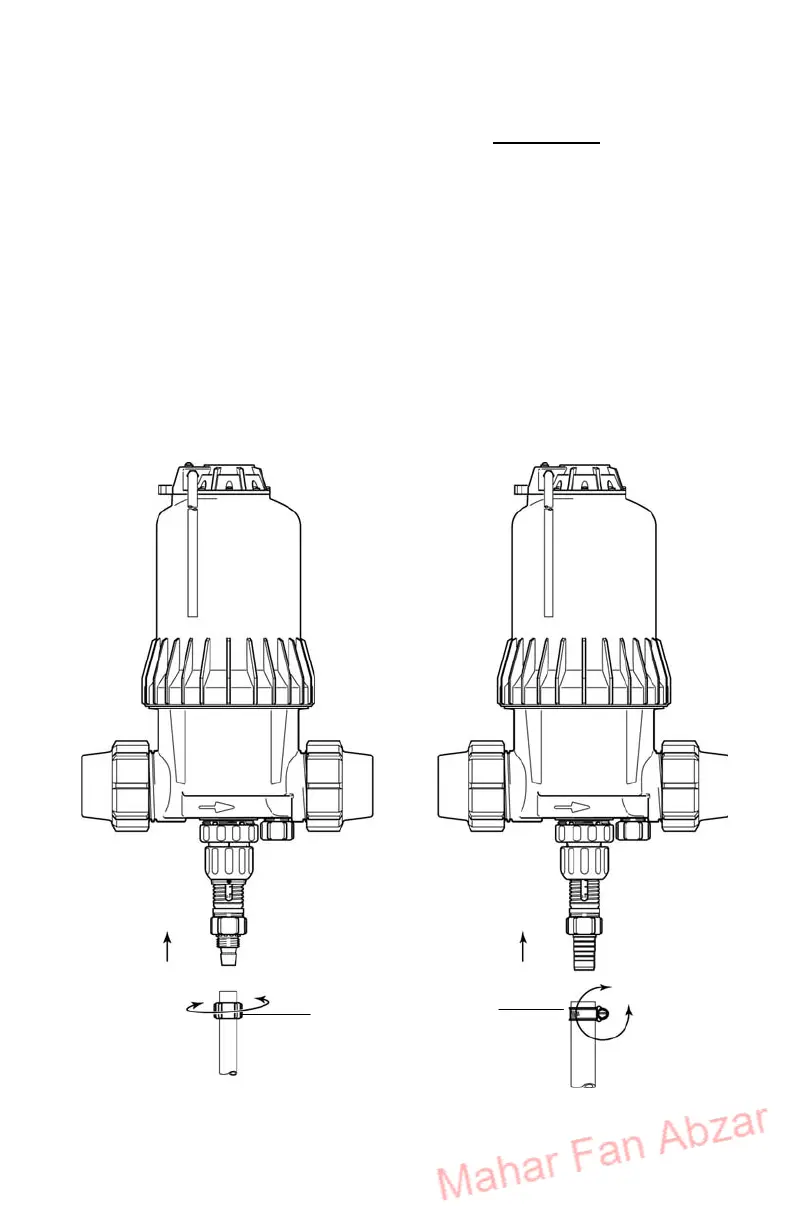

Fig. 13
E
C
Fig. 14
Ø 12 Ø 20
(option "V")
