Dosmatic SUPERDOS 20 - Installation

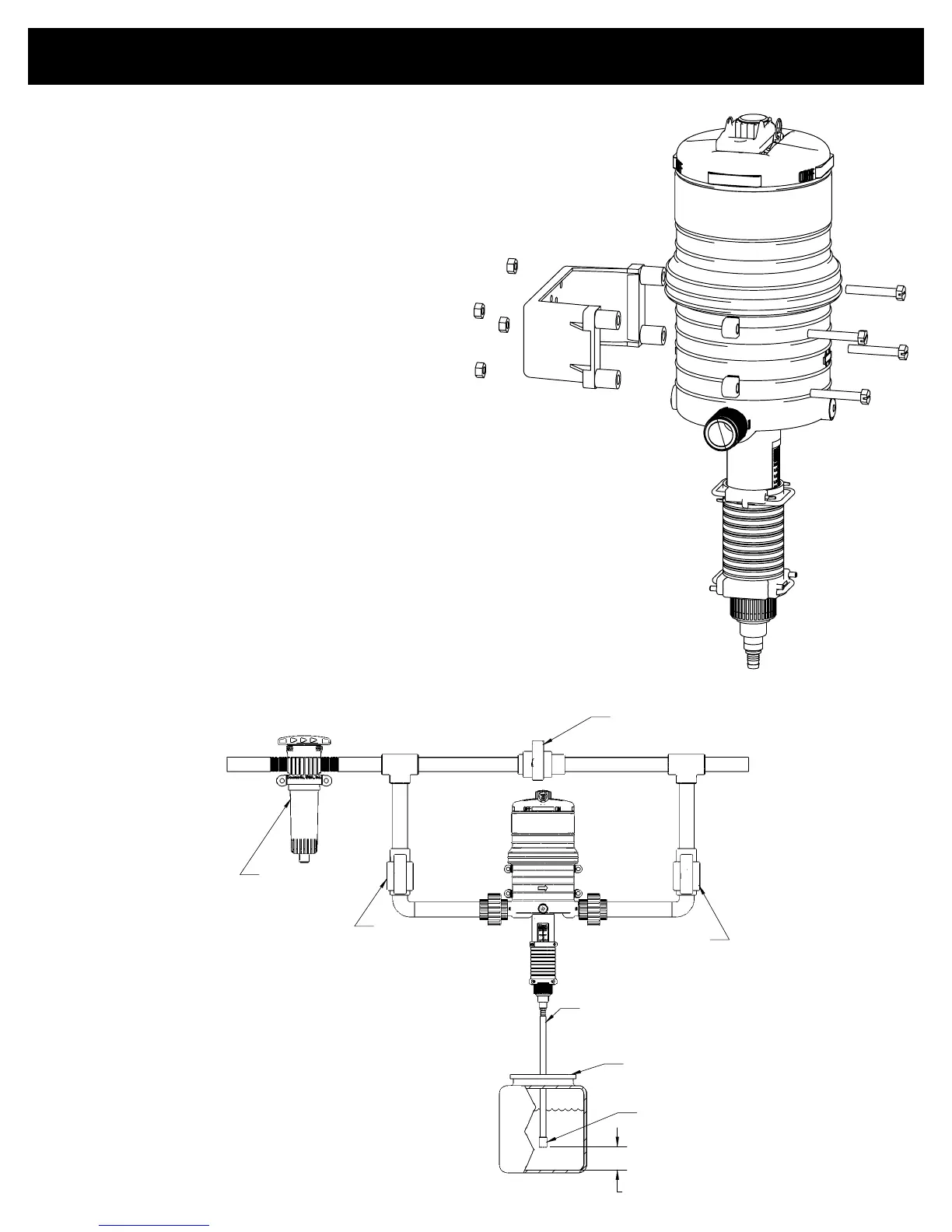

INSTALLATION DRAWINGS:
TYPICAL WALL MOUNTING
Covered Container
Inlet Filter (Required)
Inlet Valve (Required)
Bypass Valve (Required)
Outlet Valve (Required)
Suction Tube
Solution Filter
50 MM
2" Required
(A)
(B)
(C)
Fig.4
TYPICAL INSTALLATION
Fig.3
