DoubleTake MAX 5 - SECTION 2 - SEAT BACK SUPPORT INSTALLATION; 2:1 POSITION AND INSTALL SEAT BACK SUPPORTS

Manufactured By Custom Golf Car Supply, Inc.
SEAT BACK SUPPORT INSTALLATION
SECTION 2

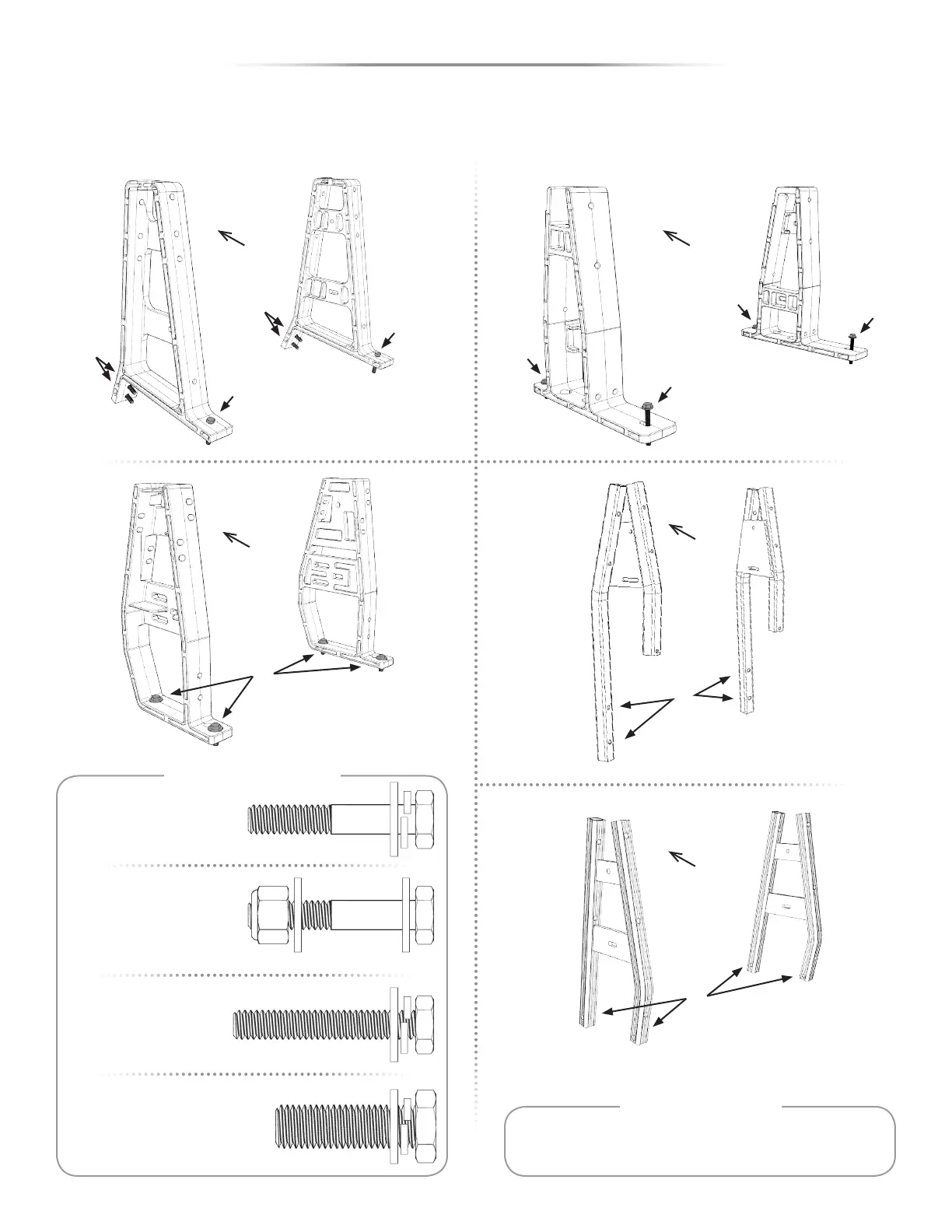

POSITION AND INSTALL SEAT BACK SUPPORTS
2:1
NOTE: Fully tighten Bolts.
Front of Car Front of Car
(E)
Front of Car
Front of Car
(D)
E-Z-GO TXT / STAR
HW BAG: RSK SBS HW TXT
TXT - rear holes / Star - front holes
E-Z-GO RXV
FACTORY HW
YAMAHA DRIVE
FACTORY HW
CLUB CAR DS
HW BAG: RSK SBS HW DS
CLUB CAR PRECEDENT
HW BAG: RSK SBS HW PD
Front of Car
HARDWARE - SCALE 1:1
FACTORY HARDWARE
(E) x4
(C) x4
3/8” X 1-1/4” Hex Bolt - 3/8” Lock Washer - 3/8” Flat Washer
(D) x4
1/4” X 1-1/2” Hex Bolt - 1/4” Lock Washer - 1/4” Flat Washer
(A) x4
1/4” X 1-1/2” Hex Bolt - 1/4” Flat Washer (x2) - 1/4” Nyloc Nut
(C)
(B)
(C)
(C)
(B)
(C)
(A)
(A)
(E)
(B) x2
M8 X 40mm Hex Bolt - 1/4” Lock Washer - 1/4” Flat Washer
REUSE FACTORY HARDWARE FROM BAG RACK REMOVAL
