DoubleTake MAX 5 - SECTION 3 - ARMREST INSTALLATION; 3:1 ARMREST PREPARATION; 3:2 INSERT ARMRESTS IN BASE; 3:3 SECURE ARMRESTS

CAT-4: Max 5 Rear Seat Kit - 3

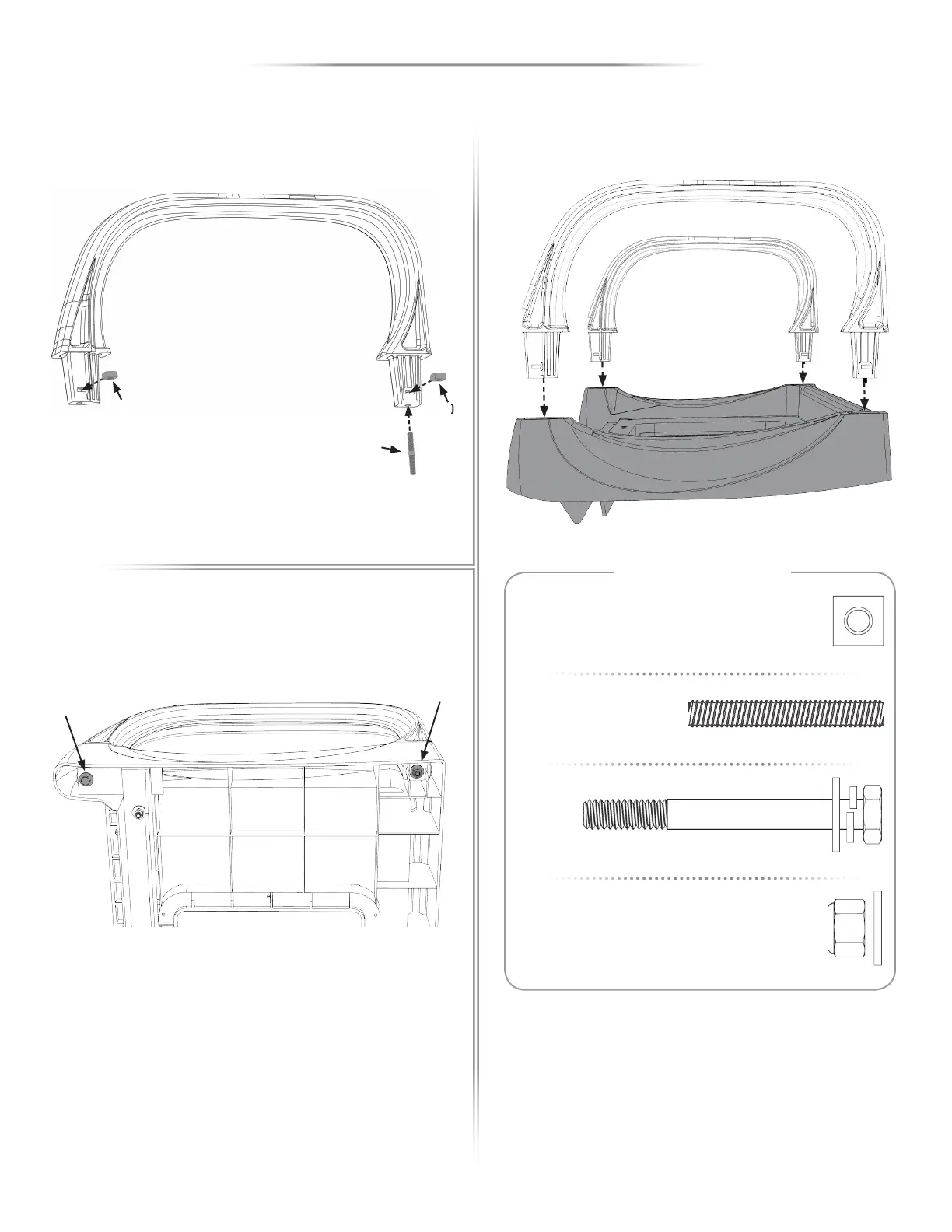

ARMREST INSTALLATION
SECTION 3
(F)
(F)
(G)
INSERT ARMRESTS IN BASE
3:2
SECURE ARMRESTS
3:3
NOTE: Fully tighten all hardware.
x2
x2
(H)
(I)
1/4” X 1-3/4” Threaded Stud
1/4” Flat Washer - 1/4” Nylock Nut
Square Nut
1/4” X 2-1/2” Hex Bolt - 1/4” Lock Washer - 1/4” Flat Washer
(G) x2
HARDWARE - SCALE 1:1
(F) x4
(I) x2
(H) x2
Insert short end of threaded stud (G) into square end of Armrest.
3:1
ARMREST PREPARATION
HW BAG: MAX5 ARMREST HW
HW BAG: MAX5 ARMREST HW
