Manufactured By Custom Golf Car Supply, Inc.

FOOTREST SUPPORTS AND BUMPER ANGLE INSTALLATION

SECTION 4

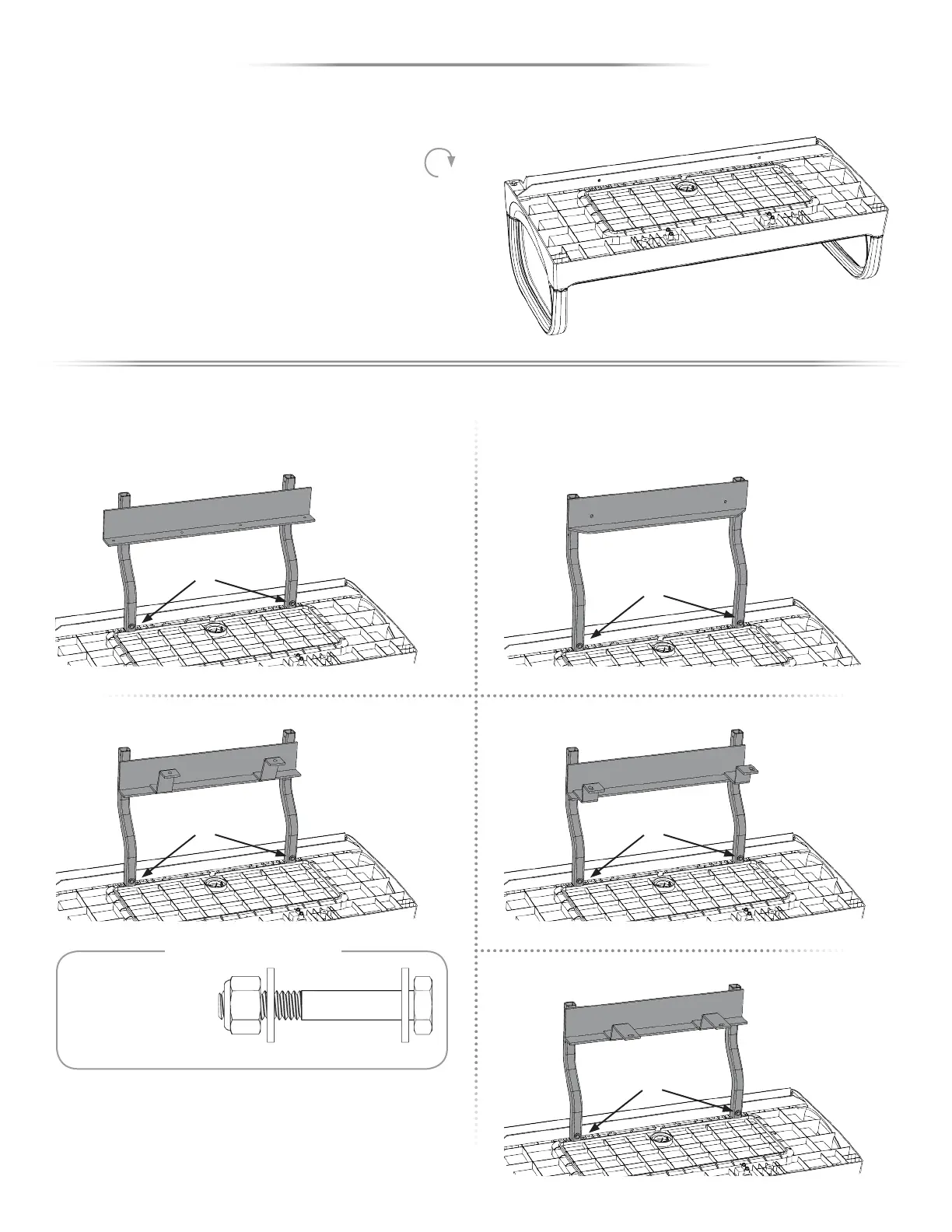

Place bottom side up for assembly.

NOTE: Place Seat on Cardboard or Blanket to prevent from scratching.

4:1

POSITION SEAT BASE

4:2

INSTALL BUMPER ANGLE

(J)

(J) (J)

(J)

NOTE: Fully tighten Hardware.

1/4” X 1-3/4” Hex Bolt - 1/4” Flat Washer (x2) - 1/4” Nyloc Nut

(J) x2

HARDWARE - SCALE 1:1

CLUB CAR DS

HW BAG: RSK BA HW DS

CLUB CAR PRECEDENT

HW BAG: RSK BA HW PD

E-Z-GO RXV

HW BAG: RSK BA HW RXV

E-Z-GO TXT / STAR

HW BAG: RSK BA HW TXT

YAMAHA DRIVE

HW BAG: RSK BA HW DRV
