Manufactured By Custom Golf Car Supply, Inc.
6:1

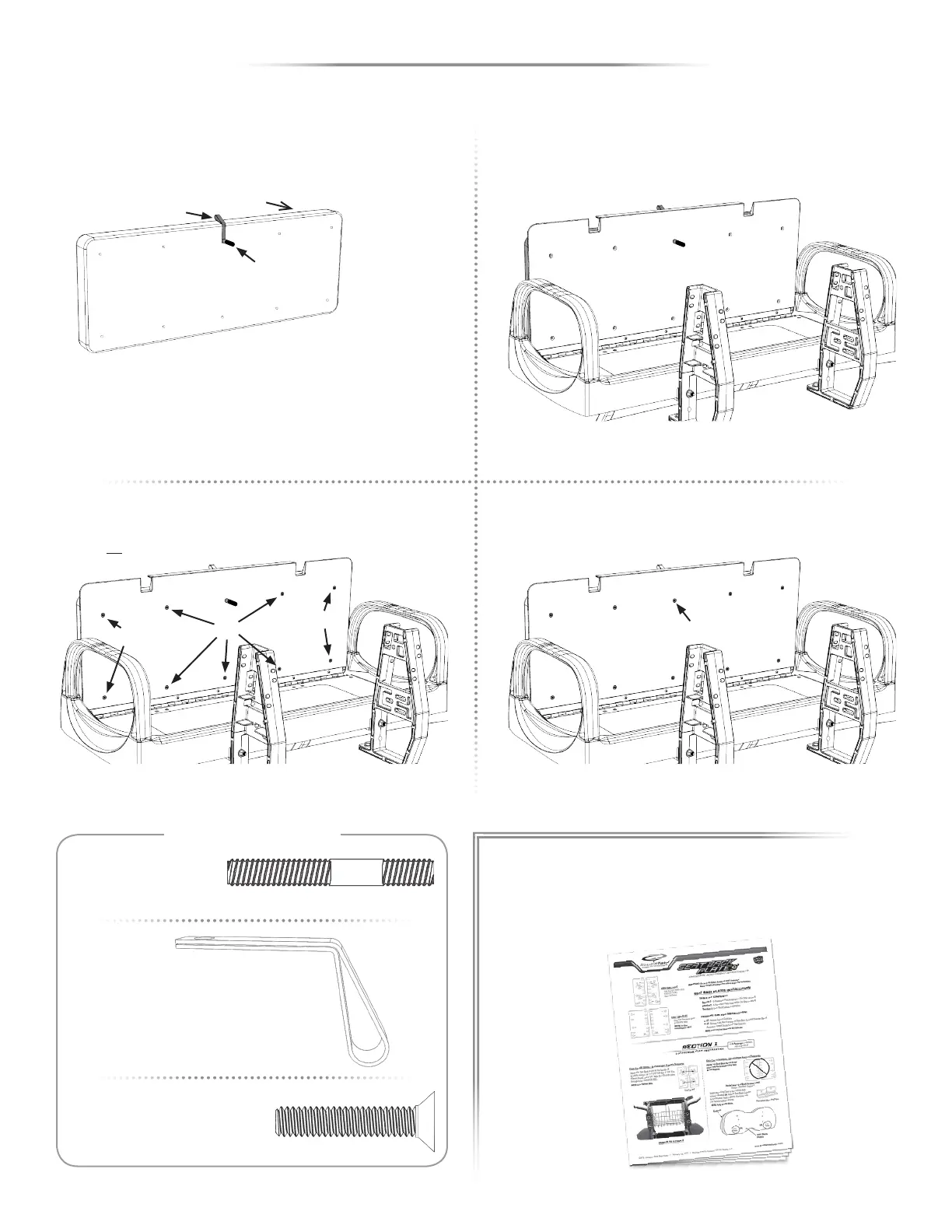

SEAT BOTTOM CUSHION INSTALLATION
Angle Seat Bottom Plastic upright to 90° and insert 2/1 Seat Bottom
Cushion in the top center hole using the Temporary Stud.
Insert Temporary Stud (S) into the 2/1 Seat Bottom Cushion then slip the
2/1 Strap (T) over the Temporary Stud as shown below.
Remove the Temporary Stud.
NOTE: Fully tighten Hardware.
6:2
SEAT BACK CUSHION INSTALLATION
Installation instructions are provided in the Seat Plate Kit Hardware Box,
located in the 2/1 Cushion Box.
CUSHION INSTALLATION
SECTION 6
(W)
Loosely screw in all four corner holes first, then screw in the remaining
vacant holes.
NOTE: Do not fully tighten.
(Y)
(Y)
(Y)
(Y)
(X)
Tag
HARDWARE - SCALE 1:1
1/4” X 1-1/4” FHP Screw
Temporary Stud
(W) x1
(Y) x10
2/1 Strap (Not to Scale)
(X) x1
BOTTOM CUSHION
HW BAG: MX5GRDN CSHN HW
HW BAG: MX5GRDN CSHN HW HW BAG: MX5GRDN CSHN HW
To Next Page
