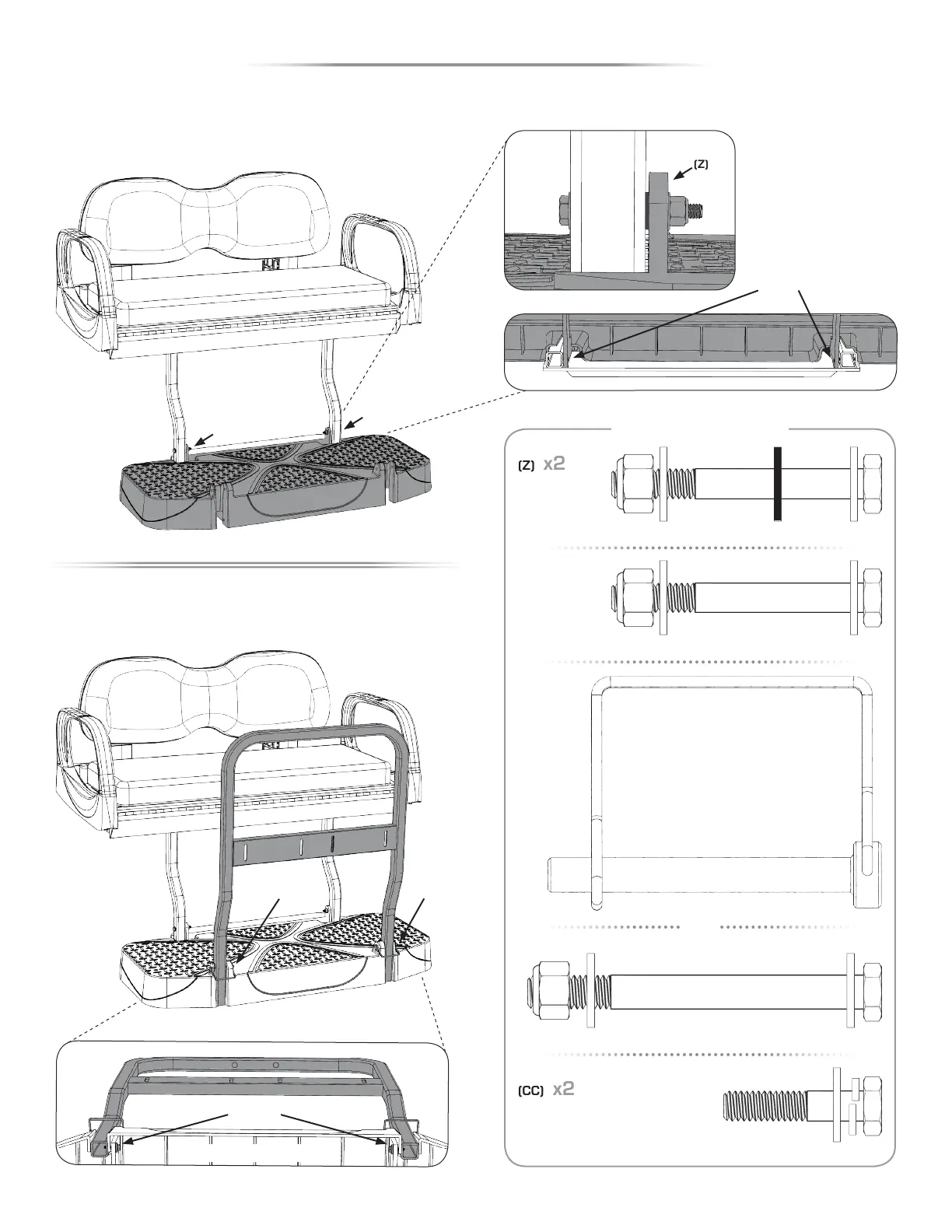

DoubleTake MAX 5 - SECTION 7 - FOOTREST, SAFETY BAR AND CUP HOLDERS INSTALLATION; 7:1 FOOTREST INSTALLATION; 7:2 SAFETY BAR INSTALLATION

CAT-4: Max 5 Rear Seat Kit - 9
(AA)
OPTIONAL
Shown from below
7:2
SAFETY BAR INSTALLATION
7:1
FOOTREST INSTALLATION
NOTE: Fully tighten Hardware.
NOTE: Fully tighten Hardware.
FOOTREST, SAFETY BAR AND CUP HOLDERS INSTALLATION
SECTION 7
(BB) (BB)
Shown from below
Shown from back
(Z)
(Z)
FOOTREST BOTTOM
(Z)
1/4” X 2-1/4” Hex Bolt - 1/4” Flat Washer (x2) - 1/4” Nyloc Nut
1/4” X 2-1/4” Hex Bolt - 1/4” Plastic Washer - 1/4” Flat Washer (x2) - 1/4” Nyloc Nut
5/16” X 3” Hex Bolt - 5/16” Flat Washer (x2) - 5/16” Nyloc Nut
1/4” X 1-1/4” Hex Bolt - 1/4” Lock Washer - 1/4” Flat Washer
(Z) x2
(AA) x2
(BB
1
) x2
(CC) x2
HARDWARE - SCALE 1:1
5/16” D-Ring Pin
(BB
2
) x2
OR
INSTALL FOR FOLDING SAFETY BAR
ONLY INSTALL TO LOCK
FOLDING FOOTREST FUNCTION
ONLY INSTALL TO LOCK
FOLDING SAFETY BAR FUNCTION
INSTALL TO LOCK FOLDING SAFETY BAR
HW BAG: MAX5 FOOTREST HW
HW BAG: MAX5 SAFETY BAR HW
(CC)
OPTIONAL
FOOTREST BOTTOM
