DoubleTake MAX 5 - 5:1 ATTACH REAR SEAT KIT TO SEAT BACK SUPPORTS

Manufactured By Custom Golf Car Supply, Inc.
HARDWARE - SCALE 1:1
REAR SEAT MOUNTING
SECTION 5
5:1
ATTACH REAR SEAT KIT TO SEAT BACK SUPPORTS

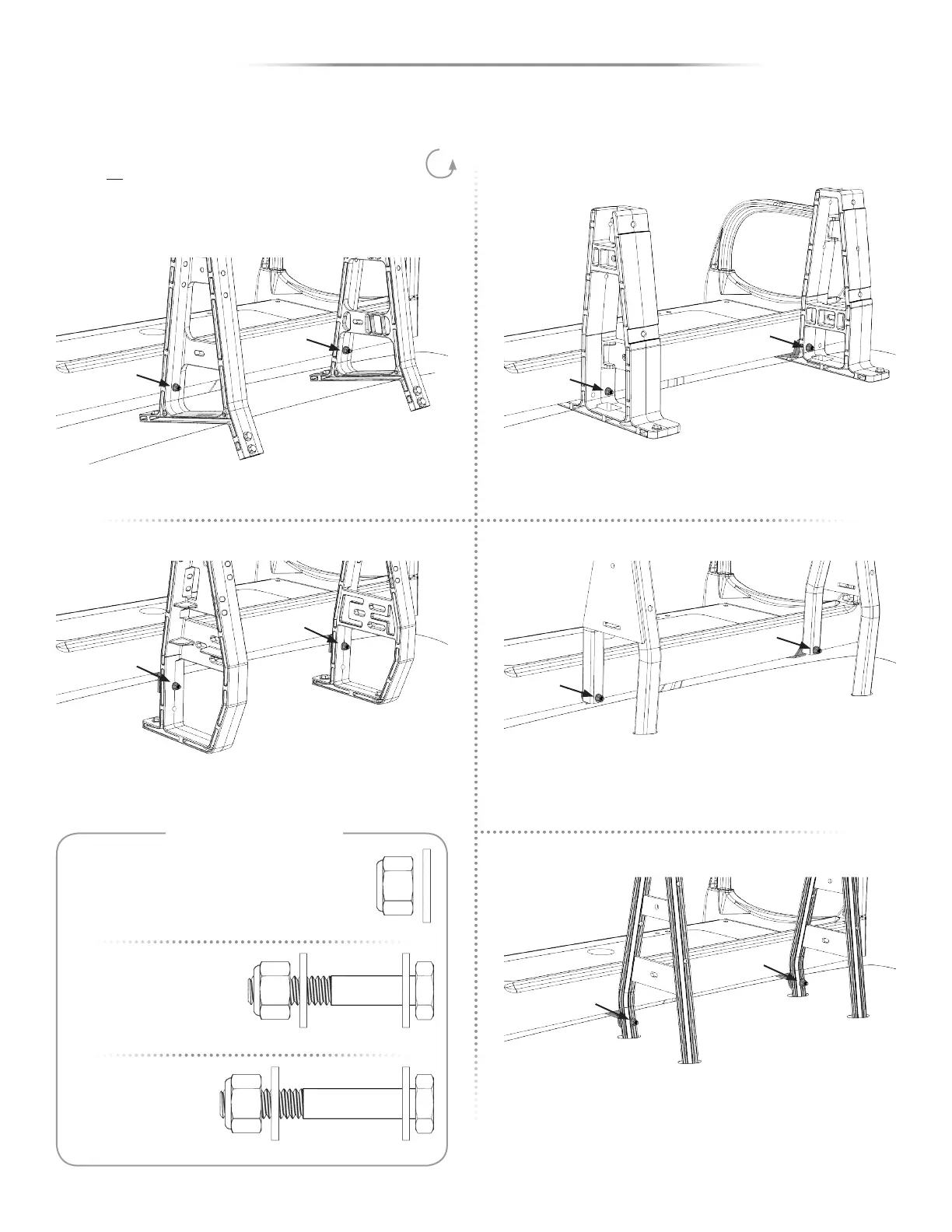

Flip Rear Seat Base over and attach to Seat Back Supports.
NOTE: Do not fully tighten until Bumper Angle is attached in next step.
1/4” Flat Washer - 1/4” Nylock Nut
1/4” X 1-1/2” Hex Bolt - 1/4” Flat Washer (x2) - 1/4” Nylock Nut
1/4” X 1-3/4” Hex Bolt - 1/4” Flat Washer (x2) - 1/4” Nylock Nut
(N) x2
(O) x2
(P) x2
(N)
(N)
(N)
(N)
(N)
(N)
(O)
(P)
(P)
(O)
E-Z-GO RXV
HW BAG: MAX5 BKT HW RXV
CLUB CAR DS
HW BAG: MAX5 BKT HW DS
CLUB CAR PRECEDENT
HW BAG: MAX5 BKT HW PD
E-Z-GO TXT / STAR
HW BAG: MAX5 BKT HW TXT
TXT - top holes / Star - bottom holes
YAMAHA DRIVE
HW BAG: MAX5 BKT HW DRV
