operator menus (continued)
Operator Menu Tree (All Menus)
EMERGENCY STOP
LOAD WEIGHT : 075 LB
USER PRIME
USER MANUAL FLUSH
INSTALLER MENU
VIEW LOAD COUNT
MAIN MENU
SET PRIME
P1 PRE-WASH
P2 DETERGENT
P3 LIQUID BLEACH
P4 BLEACH ALTERNAT
P5 SOUR-CONDITIONR
P6 ENZYME LIFT
PRIME
P3 LIQUID BLEACH
START/STOP EXIT
Home Screen (User Prime) Select Product to Prime Start / Stop Prime
EMERGENCY STOP
LOAD WEIGHT : 075 LB
USER PRIME
USER MANUAL FLUSH
INSTALLER MENU
VIEW LOAD COUNT
MAIN MENU
MANUAL FLUSH
START/STOP EXIT
Home Screen (Manual Flush) Start / Stop Flush
EMERGENCY STOP
LOAD WEIGHT : 075 LB
USER PRIME
USER MANUAL FLUSH
INSTALLER MENU
VIEW LOAD COUNT
MAIN MENU
TOTAL LOAD COUNT
04-01-21 TO 04-30-21
F01 PADS 0
F02 CURTAINS 123
F03 TOWELS 75
F04 BED LINEN 2
F05 BLANKETS 0
Home Screen (View Load Count) View Load Count
EMERGENCY STOP
LOAD WEIGHT : 075 LB
USER PRIME
USER MANUAL FLUSH
INSTALLER MENU
VIEW LOAD COUNT
MAIN MENU
LOAD WEIGHT
075 LB
(SINGLE LOAD)
OK EXIT


Home Screen (Load Size) Input Actual Load Weight
SELECT FORMULA
F01 PADS
F02 CURTAINS
F03 TOWELS
F04 BED LINEN
F05 BLANKETS
F06 TABLE LINEN
*
_ _ _ __ _
_ _ _ __ _
HYDRO SYSTEMS
SELECT FORMULA
Home Screen Formula Select
Selects Formula
and returns to
Home Screen.
Installer Menu Access
INSTL PASSWORD
0 1 2 3 4
OK EXIT


MAIN MENU
EMERGENCY STOP
LOAD WEIGHT : 075 LB
USER PRIME
USER MANUAL FLUSH
INSTALLER MENU
VIEW LOAD COUNT

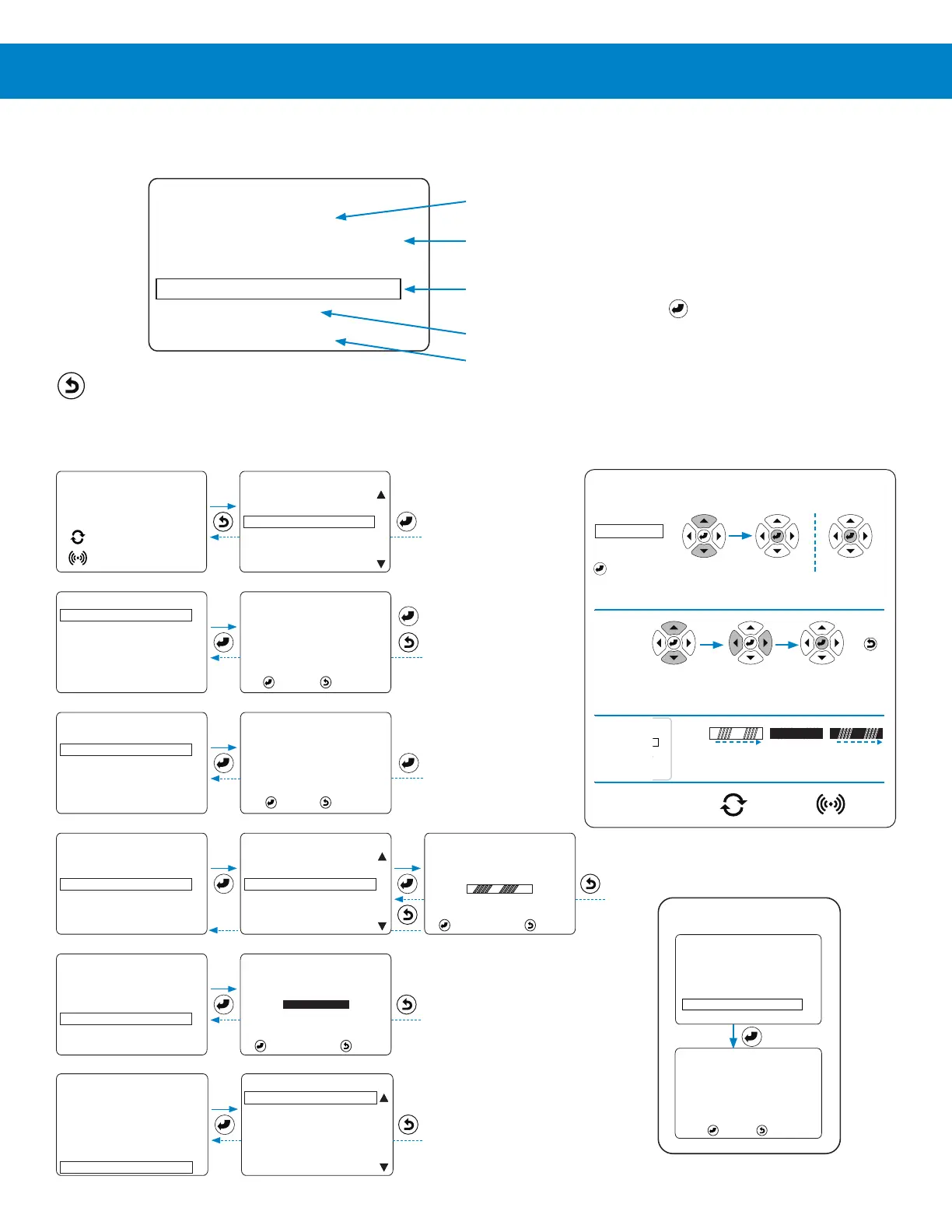

Guide to Keypad & Menus
=
=
220 LB


Selection Box
&
Enter key
Value
Edit
Menu
Symbols
Home
Screen
Icons
Up/Down
Arrows Move
Selection Box
Up/Down
Arrows Edit
Value (0-9, A-Z)
Left/Right
Arrows Move
Digit Cursor
Dispensing
(No Flush)
Flush Only Dispensing
(With Flush)
Product
Row Icon
Trigger
Row Icon
Enter key
Starts/Stops
Actions
Enter key
Selects or
Launches
Enter key
Saves
& Exits
Exit
(No
Save)
More
Items
or
F03 PUMPS
P1 PRE-WASH
P2 DETERGENT
P3 LIQUID BLEACH
P4 BLEACH ALTERNATIVE
P5 SOUR/CONDITIONER
P6 SOFTENER


EMERGENCY STOP
LOAD WEIGHT : 075 LB
USER PRIME
USER MANUAL FLUSH
INSTALLER MENU
VIEW LOAD COUNT
MAIN MENU
EMERGENCY STOP
STOP ALL DISPENSING
AND FORMULAS
STOP EXIT
Home Screen (Emergency Stop) Emergency Stop
+
Main Menu
To reach the Main Menu from the Home Screen press any key (except the Exit key).
EMERGENCY STOP
LOAD WEIGHT : 075 LB
USER PRIME
USER MANUAL FLUSH
INSTALLER MENU
VIEW LOAD COUNT
MAIN MENU
Emergency Stop: Stops all dispensing and formulas.
Load Weight Menu: Displays the default load weight for the
current formula.
Installer Programs and Settings: Enter Installer password.
View Load Count: View the number of loads run for each
formula.
(The View Load Count menu will appear when the Selection
Box is moved below the Installer Menu using the Down Arrow.)
Selection Box: Use Up / Down Arrow to move to the desired
menu. Press Enter key to launch the menu.
Return to HOME SCREEN: Just press the Exit
key, or wait 15 seconds without pressing any keys.
