Dover Hydro Connected Total Eclipse - Specifications

15
programming (continued)
NAME F01
PADS


OK EXIT
Clear Formula Settings
PRODUCT SETTINGS
SET DEFAULT WEIGHT
SET COUNT PUMP
SET END TIME OFFSET
EDIT NAME
CLEAR FORMULA
F01 PADS
WARNING! FORMULA
WILL BE CLEARED TO
FACTORY DEFAULT!
CLEAR F01
OK EXIT

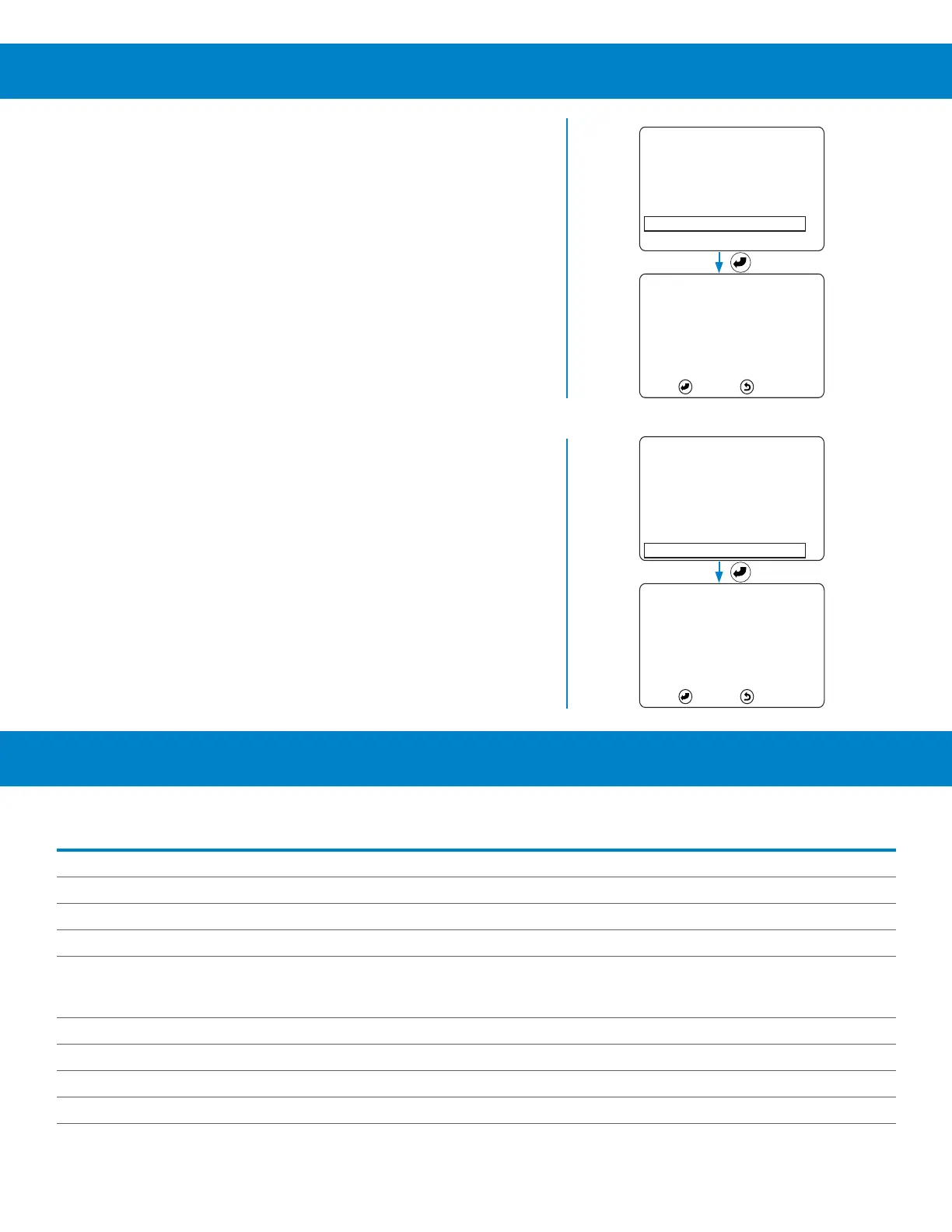

Clear Formula
Use this menu only if you want to completely clear a formula’s settings.
This option will revert all the formula’s settings to their factory default
values.
1) Move the selection box onto the CLEAR FORMULA menu item and
press the Enter key to launch the CLEAR F## confirmation screen.
2) Press the Enter key to indicate it is OK to completely clear this formula’s
settings, or press the Exit key to cancel the CLEAR FORMULA function.
3) After the Formula’s settings are deleted, the display will automatically
return the F## <formula name> menu.
Edit Name (Optional)
This feature allows a customized name to be added to a formula, up to 15
characters in length.
1) Move the selection box onto the EDIT NAME menu item and press the
Enter key to launch the NAME F## input screen.
2) Change the active digit by pressing the Up / Down Arrow keys. Move
the digit selection cursor with the Left / Right Arrow keys.
3) When the desired formula name has been input, press the Enter key
to save the new customized name and return to F## <formula name>
menu.
Set Formula Name
PRODUCT SETTINGS
SET DEFAULT WEIGHT
SET COUNT PUMP
SET END TIME OFFSET
EDIT NAME
CLEAR FORMULA
F01 PADS
Controller Specifications
Category Specification
Size 5.2” W x 4.50” H x 2.5” D (13.2 cm W x 11.4 cm H x 6.4 cm D)
Weight 0.65 lb. (0.30 kg)
Power Rating SELV - Power source is dispenser.
System Capacity 99.99 oz. (2999 ml.) 8 product (with 3 amount settings per product) maximum
Data Input Field 15 characters maximum: (letters A-Z, numbers 0-9, hyphen [-], underscore [_] and space [ ]
Environmental Specifications
IP, Pollution, Installation IP Rating : 44 Pollution Category: 2 Installation Category: II
Operating Temperature 10° to 49° C (50° to 120° F) maximum
Operating Humidity 95% relative humidity, maximum
Operating Altitude Install at or below 6.500 ft. (2000 M) maximum
Indoor Installation Approved for indoor use only. Must not be installed outdoors.
Specifications subject to change without notice.
