11
Torque: 6N·M

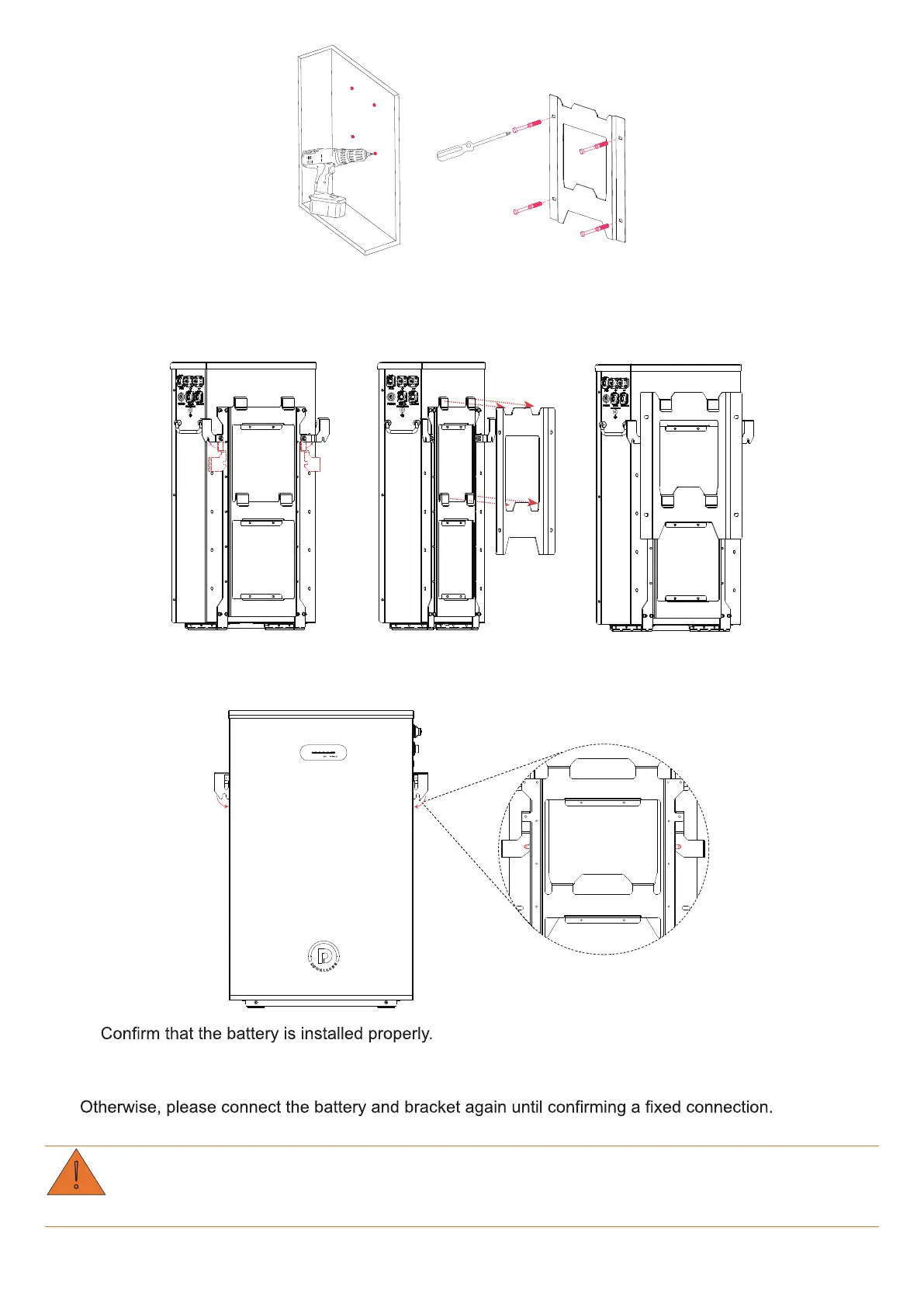

Step 3.
Fix battery on bracket.
1.
Rotate the left latch leftward and the right latch rightward until they keep perpendicular to the battery.
2.
Install battery from the top down and lock the connection part of battery with the support plate of bracket.
3.
Rotate the left latch rightward until the notch locks limiting pin, and rotate the right latch leftward until the
notch locks limiting pin too.
Step 4.
1.
Visually inspect the two upper joints to guarantee a stable connection between battery and bracket.
2.
Pull the lower part of battery away from wall and ensure that the battery cannot be moved at all.
CAUTION
• Leave a minimum clearance of 133 mm before the front surface of battery.
To Next Page
