4
Report alarm messages and operation data to inverter via CAN network ports.
• Parallel connection:
Support a maximum of 8 batteries in parallel connection.
•
•
When battery does not connect to mains supply, hold POWER button for two seconds and battery powers
• Activation:

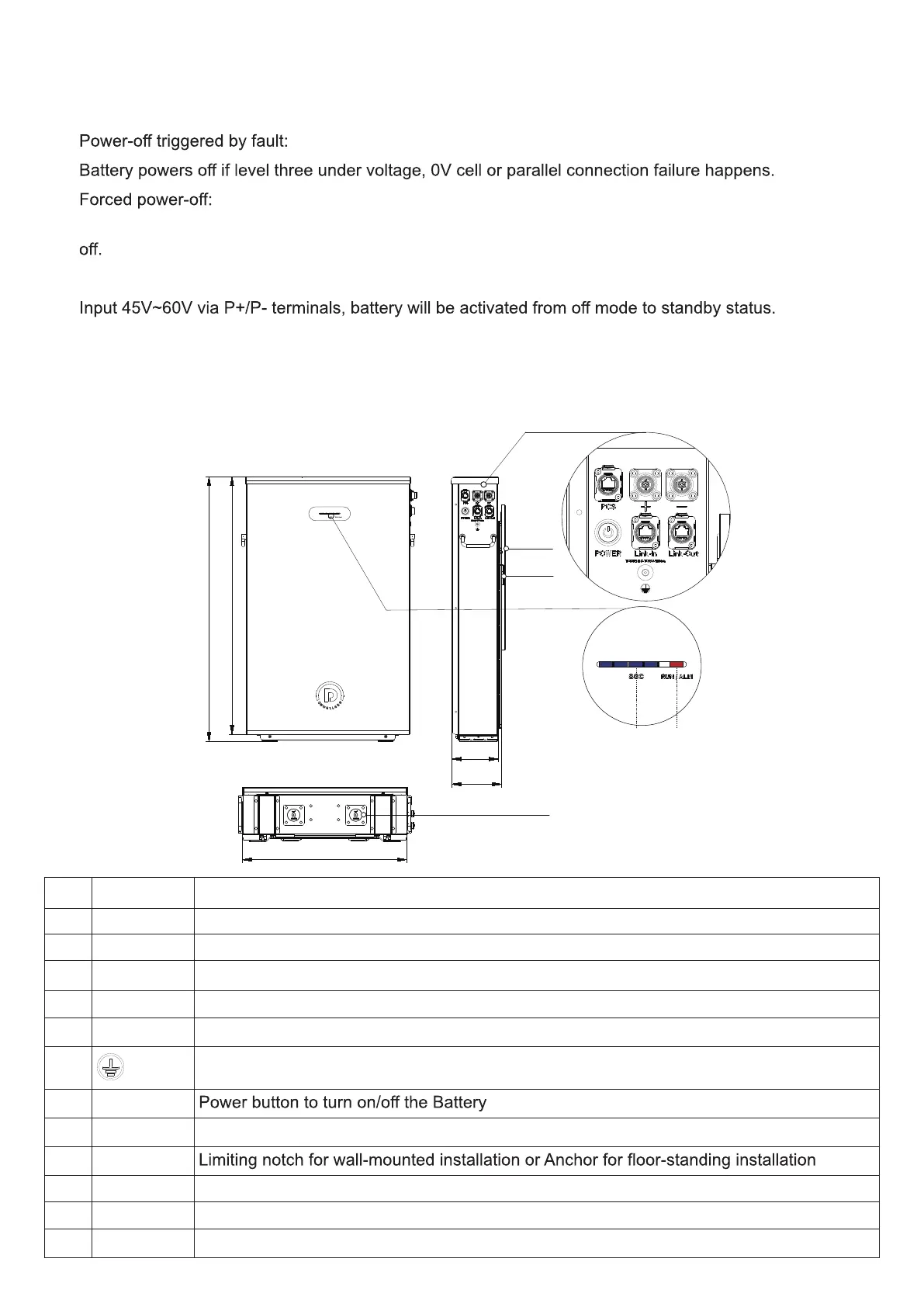

2.3 Appearance
The battery is an energy storage unit composed of cells, mechanical parts, battery management system (BMS)
as well as power and signal terminals. Product dimensions (unit: mm) and appearance are as shown below:
766.5
475
746.5
143
133
10 11
1 2 3
4 5
6
7
9
8
12
No. Label Name
1 PCS Network port for communication with inverter
2 + The terminal stands for the Battery cathode output.
3 - The terminal stands for the Battery anode output.
4 Link-In Input network port for parallel connection
5 Link-Out Output network port for parallel connection
6 Grounding terminal
7 POWER
8 / Support bracket for wall-mounted installation
9 /
10 RUN/ALM LED indicator of running status and alarm
11 SOC LED indicator of battery SOC
12 / Safety vent
