MACH LED 150F / 150 / 150FP
59593206 Service manual 06.02.2018; Edition 01 / Bar;Bak page 4
2. Exchanging the protective glass
Failure description: The protective glass of the light can become dull in time or can be
scratched. As a result the light efficiency decreases. In such cases we recommend the ex-
change of the protection glass. The part number is 32035201.

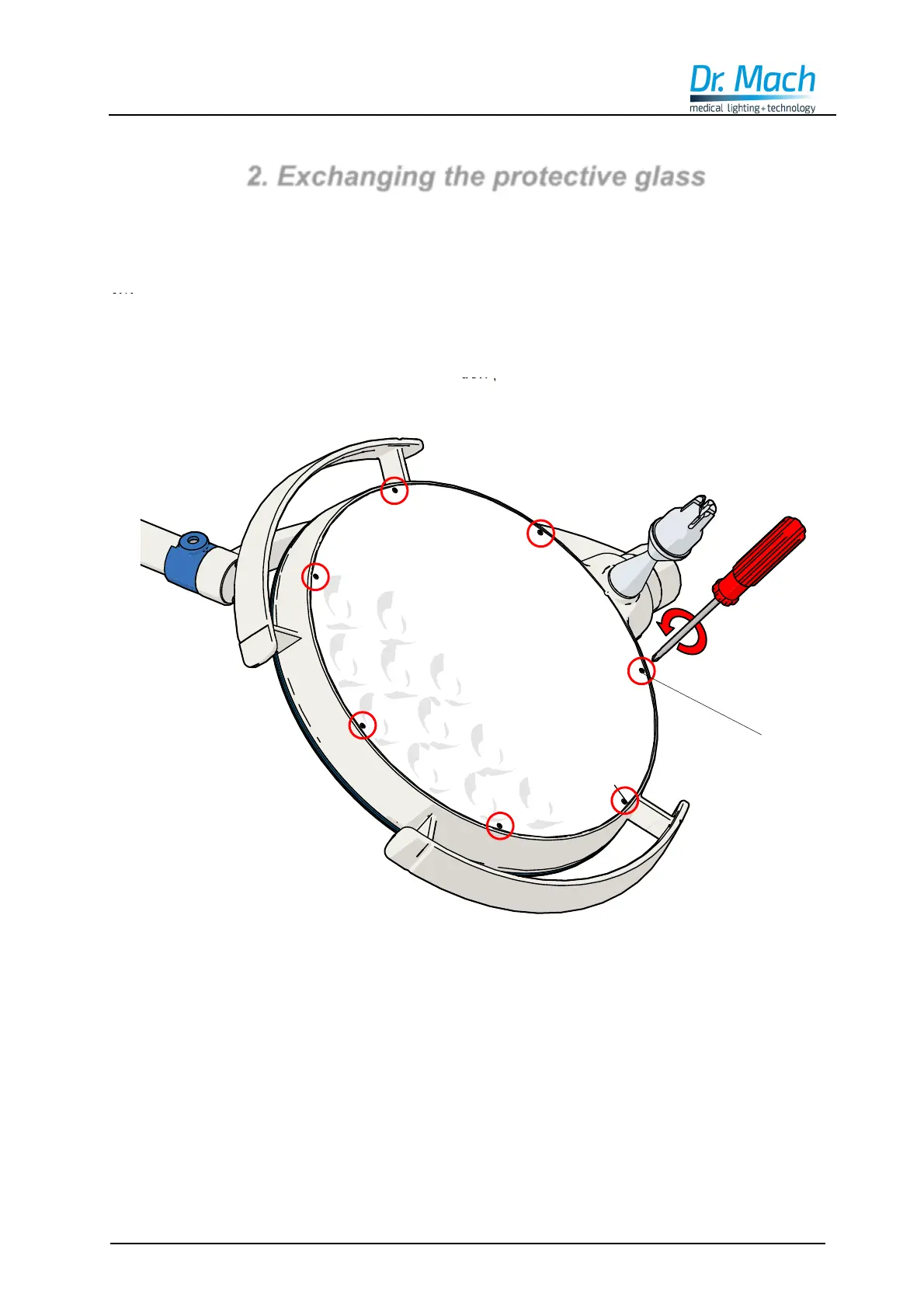

Turn off the light and position it like shown in the picture.
Loosen and remove the seven marked fixation screws (pos. 1) with a crosshead screw-
driver and remove the damaged protection glass.
Mount the new protection glass (Pos. 2) in reverse order:
First of all remove the protective foil at the inner side.
Please observe the correct position: the recess in the protective glass must match with
the nose in the lamp housing, see detail!
Fix the protective glass with seven screws, part number 65872004 DIN 7982 2,2x9,5 and
then remove the protective foil at the outer side of the protective glass.
