Dr. Mach 150F - Exchanging the Keypad

MACH LED 150F / 150 / 150FP
59593206 Service manual 06.02.2018; Edition 01 / Bar;Bak page 6

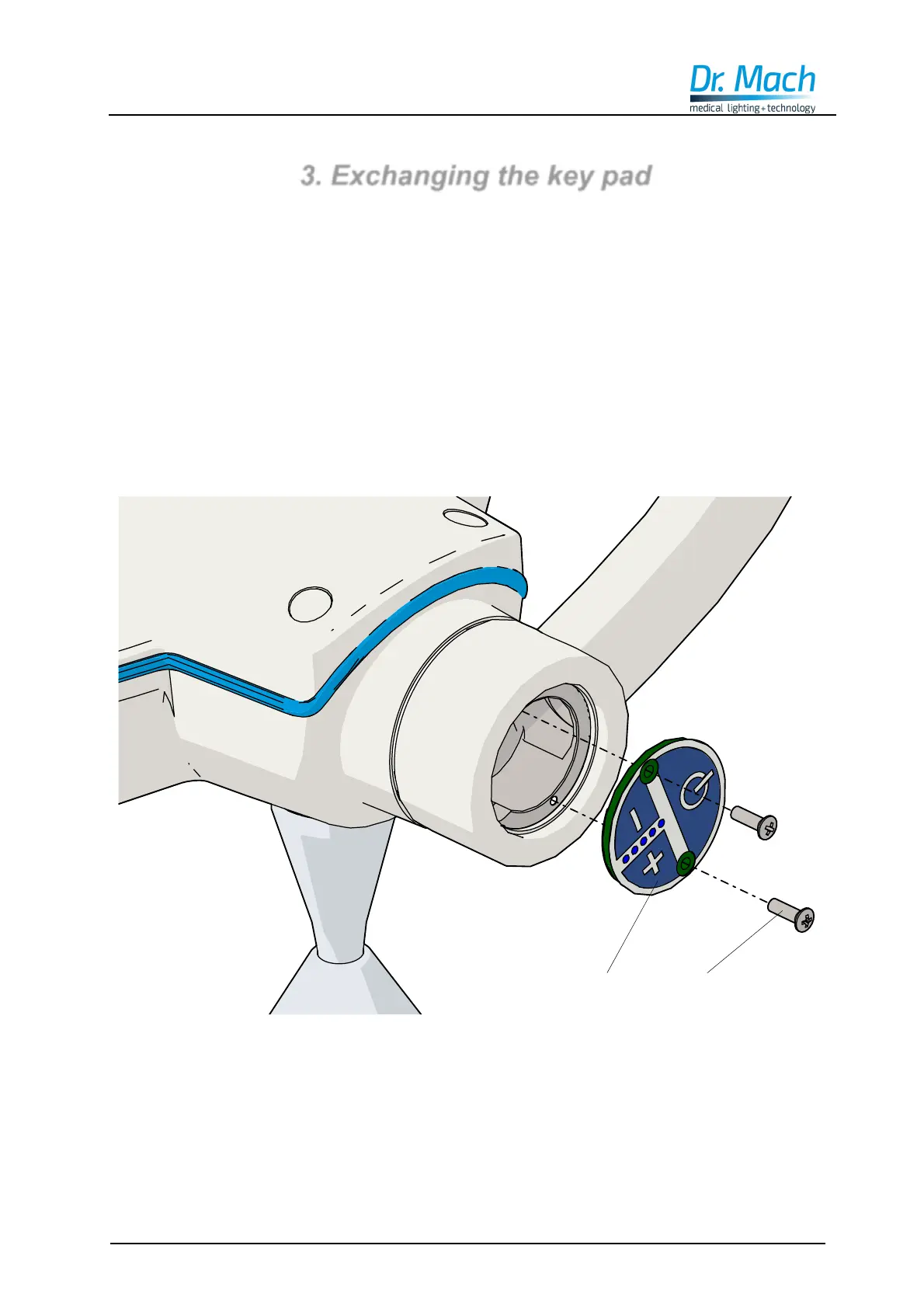

3. Exchanging the key pad
Failure description: In case of malfunction the key pad must be replaced.
 Disconnect the light from mains.
 Loosen and remove the two fixation screws DIN966-HM3x10-4.8-Ni (pos. 3), part num-
ber 65112003.
 Remove carefully the key pad (pos. 4), part number 14117002 and unplug the connec-
tion cable from the key pad.
 Plug in the new connection cable and check the function of the light.
 Mount the new key pad in reverse order.
3
4
