Mach LED 150F / 150 / 150FP
59320002 Edition 12 08.08.2018 / Bak We page 20/26
10.

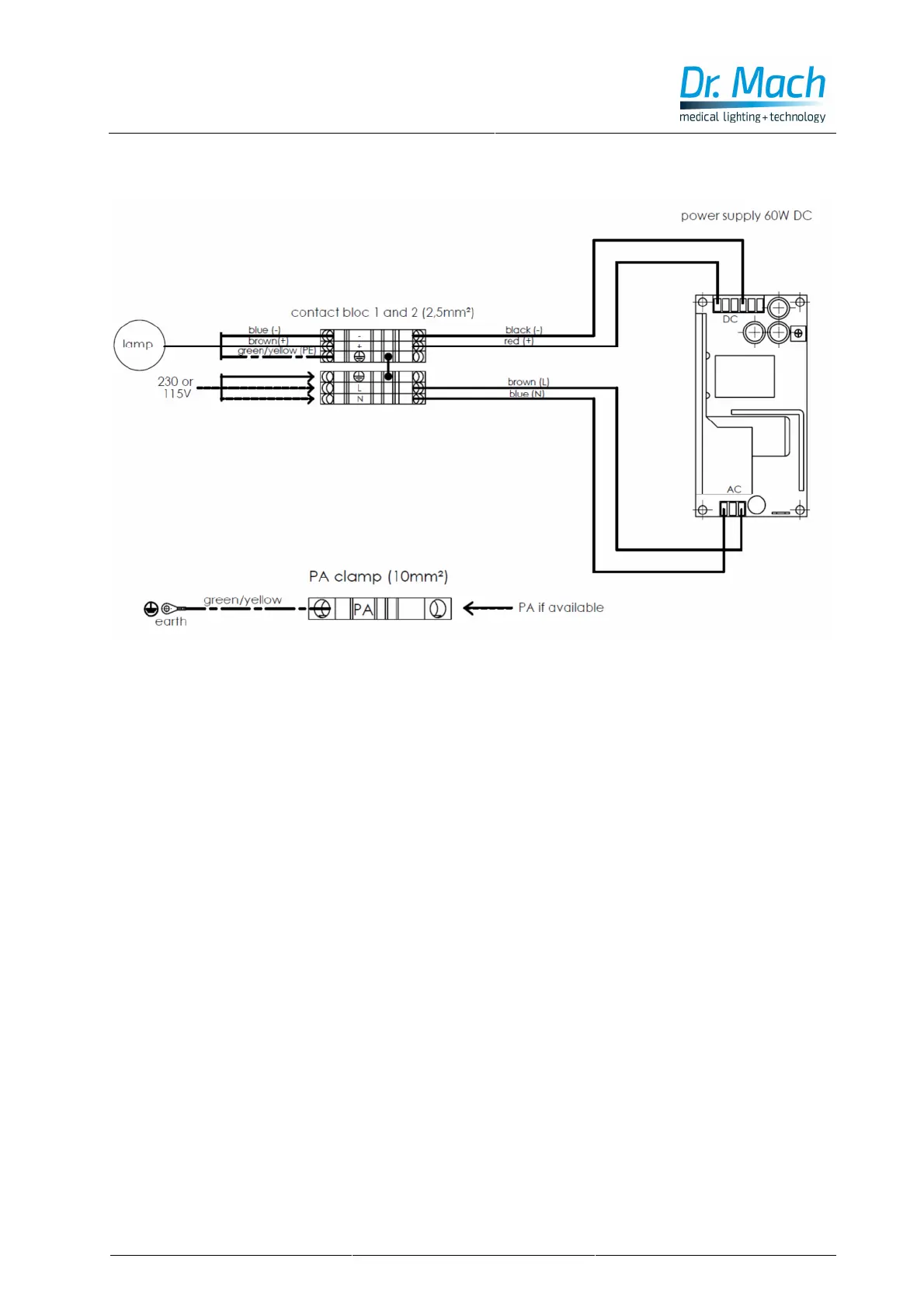

Wiring diagram for single attachments
power supply type: XP Power ECM60US24
