SELF-FEEDING CHIPPER
Specifications
Models 16.5 Manual and Electric Start Models 21.0
Engine Briggs & Stratton (See Engine Manual for Engine
Specifications)
Briggs & Stratton Electric Start (See Engine Manual
for Engine Specifications)
Series 1650 2100
Chipping Capacity 4-3/4" Diameter 5-3/4" Diameter
Number of
Chipper Knives
1 1
Chipper Knife Size 6-1/4" x 1-1/4" x 9/32" 7-1/4" x 1-1/4" x 9/32"
Chipper Knife
Material
Heat Treated Tool Steel Heat Treated Tool Steel
Adjustable Wear
Plate
Yes Yes
Chipper Flywheel 17-3/4" Diameter x 5/8" Thick 20" Diameter x 5/8" Thick
Flywheel Weight 50 Lbs 62.5 Lbs
Chipper Knife Tip
Speed
128 mph 144 mph
Wheel Size 4.10/3.50-6 Pneu. (Yard-Tow Models)
4.80/4.00-8 Pneu. (Road-Tow Models)
4.10/3.50-6 Pneu. (Yard-Tow Models)
4.80/4.00-8 Pneu. (Road-Tow Models)
Axle 3/4" Diameter (Yard-Tow Models)
1" Diameter w/Welded Angle (Road-Tow Models)
3/4" Diameter (Yard-Tow Models)
1" Diameter w/Welded Angle (Road-Tow Models)
Hopper Material 10 GA Neck, 16 GA Hopper, Steel 10 GA Neck, 16 GA Hopper, Steel
Frame Material 12 GA Steel 12 GA Steel
Hopper Opening
at Top
17" x 27" 19" x 30-1/2"
Assembly
Parts supplied in Shipping Container:
 DR SELF-FEEDING CHIPPER
 Hopper Assembly
 Lights, Light Brackets and Wiring (Road-Tow models only)
 Tow Bar Assembly
 Extended Top-Discharge Chute (if ordered, see Chapter 6 “Chipper
Accessories”)

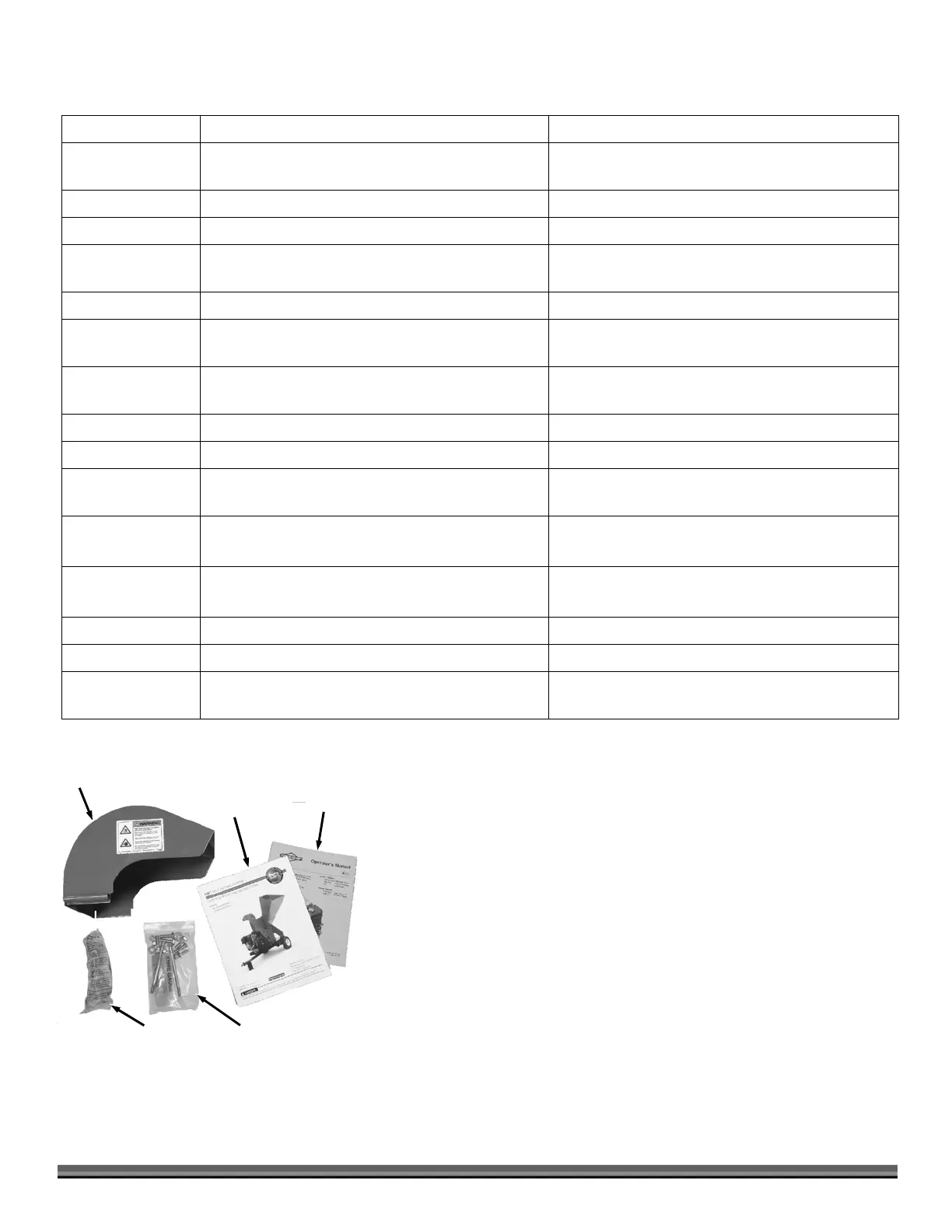

 Parts Box containing (Figure 2):
 Discharge Chute
 Safety Glasses
 Safety & Operation Instructions Manual
 Engine Owner’s Manual
 Hardware Package (Figure 3 and Table on next page)
Discharge
Chute
Safety
Glasse
s
Safety &
Operating
Instructions
Manual
Hardware
Packa
g
e
Engine
Owners
Manual
Fi
g
ure 2
