DR 16.5 - Page 11

CONTACT US AT www.DRpower.com 11

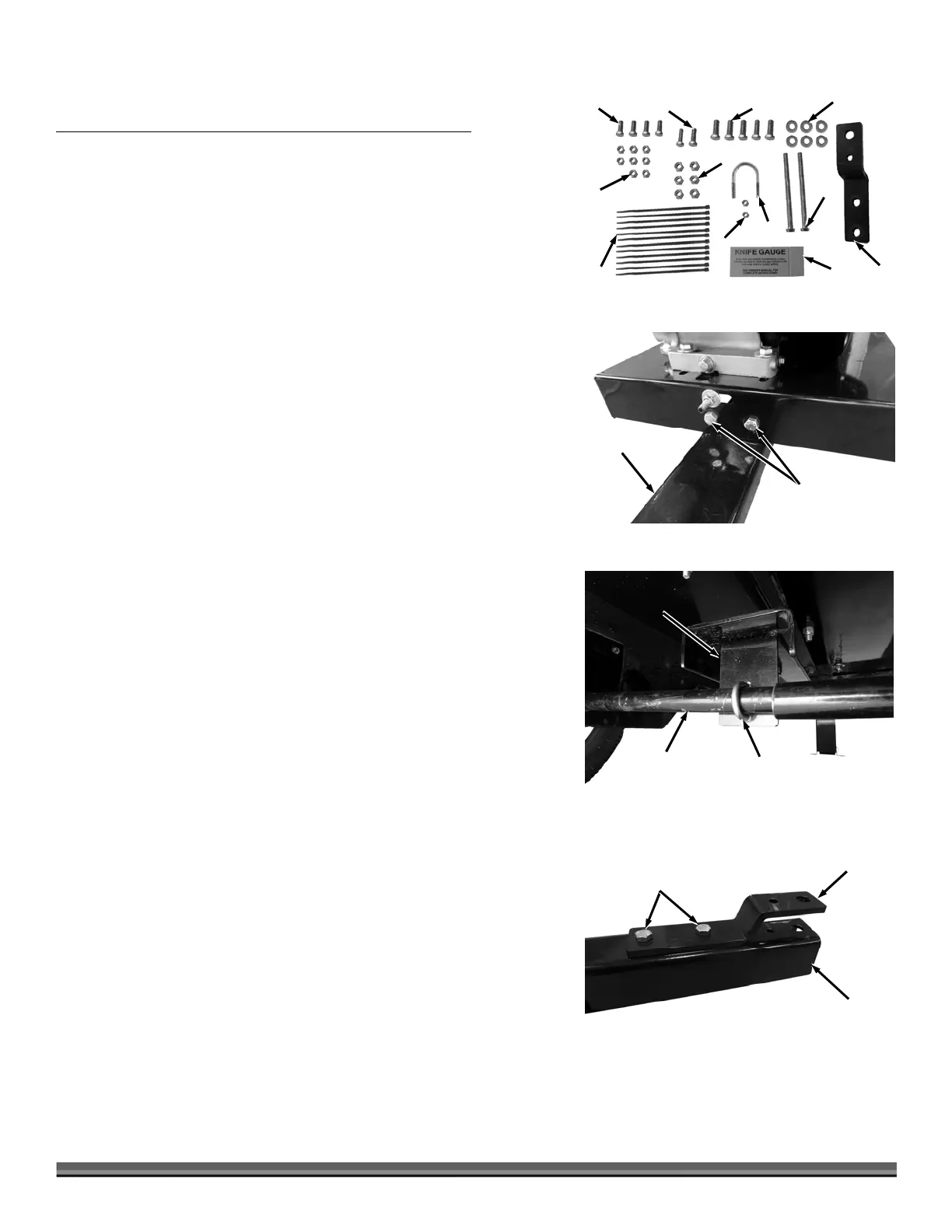

Hardware Package Parts:
Item # Part # Description Qty
1 ........... 24197 ....... Bolt, 5/16-18 x 4-1/2" .................................. 2
2 ........... 14313 ....... Nylon Locknut, 5/16-18 .............................. 8
3 ........... 15448 ....... Nylon Locknut, 3/8-16 ................................ 6
4 ........... 11152 ....... Bolt, 3/8-16 x 1" ........................................... 5
5 ........... 11241 ....... Flat Washer, 5/16" ...................................... 6
6 ........... 16679 ....... Bolt, 5/16-18 x 3/4 ....................................... 4
7 ........... 16003 ....... Knife Gap Gauge ......................................... 1
8 ........... 37459 ....... U-Bolt ........................................................... 1
9 ........... 14340 ....... Nylon Locknut, 1/4-20 ................................ 2
10 ......... 14906 ....... Cable Tie ...................................................... 12
11 ......... 14605 ....... Bolt, HCS, 5/16-18 x 1, Gr5 ......................... 2
12 ......... 14292 ....... Hitch Plate, Tow Bar ................................... 1
Note: You may have extra hardware that is not needed for your model.
Installing the Tow Bar for the Yard-Tow Model
Note: For easier installation, keep the machine on the pallet and supports until the
Tow Bar is installed.
Tools Needed:
 7/16 Wrench
 Two 9/16" Wrenches
 Two 1/2" Wrenches
1. Position the Tow Bar under the Base and secure the front Bracket with two
3/8-16 x 1" Bolts and Locknuts using two 9/16" Wrenches (Figure 4).
2. Secure the Bracket at the rear of the Tow Bar to the Axle with a U-Bolt and
two Locknuts using a 7/16" Wrench. (Figure 5).
3. Attach the Hitch Plate to the Tow Bar with Two 5/16-18 x 1" Bolts and
Locknuts using two 1/2" Wrenches (Figure 6).
1
Figure 3
3
6
4
2
7
8
9
10
5
11
12
U-Bolt and
Locknuts
Figure 5
Tow Bar
Bracket
A
xle
Bolt and
Locknut
Figure 4
Tow Bar
Base
Tow Bar
Figure 6
Hitch Plate
5/16-18 x 1" Bolts
and Locknuts
