DR PILOT 2 User Manual

8 DR
®
PILOT 2 Cycle Tiller/Cultivator
Unpacking and Assembling the Machine
Your DR PILOT 2 Cycle Tiller/Cultivator shipped in one carton, completely assembled except for the Handlebars.
Parts Supplied in Shipping Carton:
 DR PILOT 2 Cycle Tiller/Cultivator
 Upper Left Handlebar
 Upper Right Handlebar
 Middle Handlebar
 Safety & Operating Instructions Manual
 Hardware Bag:
- (4) T-Handle Nut
- (4) Curved Washer
- (4) Handle Clamp Bolt
Stabilize the shipping carton on a flat ground surface before attempting to unpack and assemble the machine. Do not
place the machine on a bench or table where it can fall and cause personal injury or damage the machine.
1. Carefully lift the DR PILOT 2 Cycle Tiller/Cultivator out of the carton and set the machine upright with the Tines and
Wheels on a level surface.
2. Remove the Hardware Bag from the Shipping Carton.
3. Remove any packing material from the machine and cut the Ties holding the Handlebar pieces to the Tiller/Cultivator
assembly.
NOTE: Use care with the Upper Right Handlebar so as not to kink the Throttle Cable; it is pre-attached to the Engine.
4. Using two (2) T-Handle Nuts, two (2) Handle Clamp Bolts and two (2) Curved Washers, assemble the Middle Handlebar
to the Lower Handlebar already attached to the machine (Figure 2).
NOTE: You can install the Middle Handlebar in either of two (2) positions, one high, and one low. DO NOT over tighten the T-
Handle Nuts.

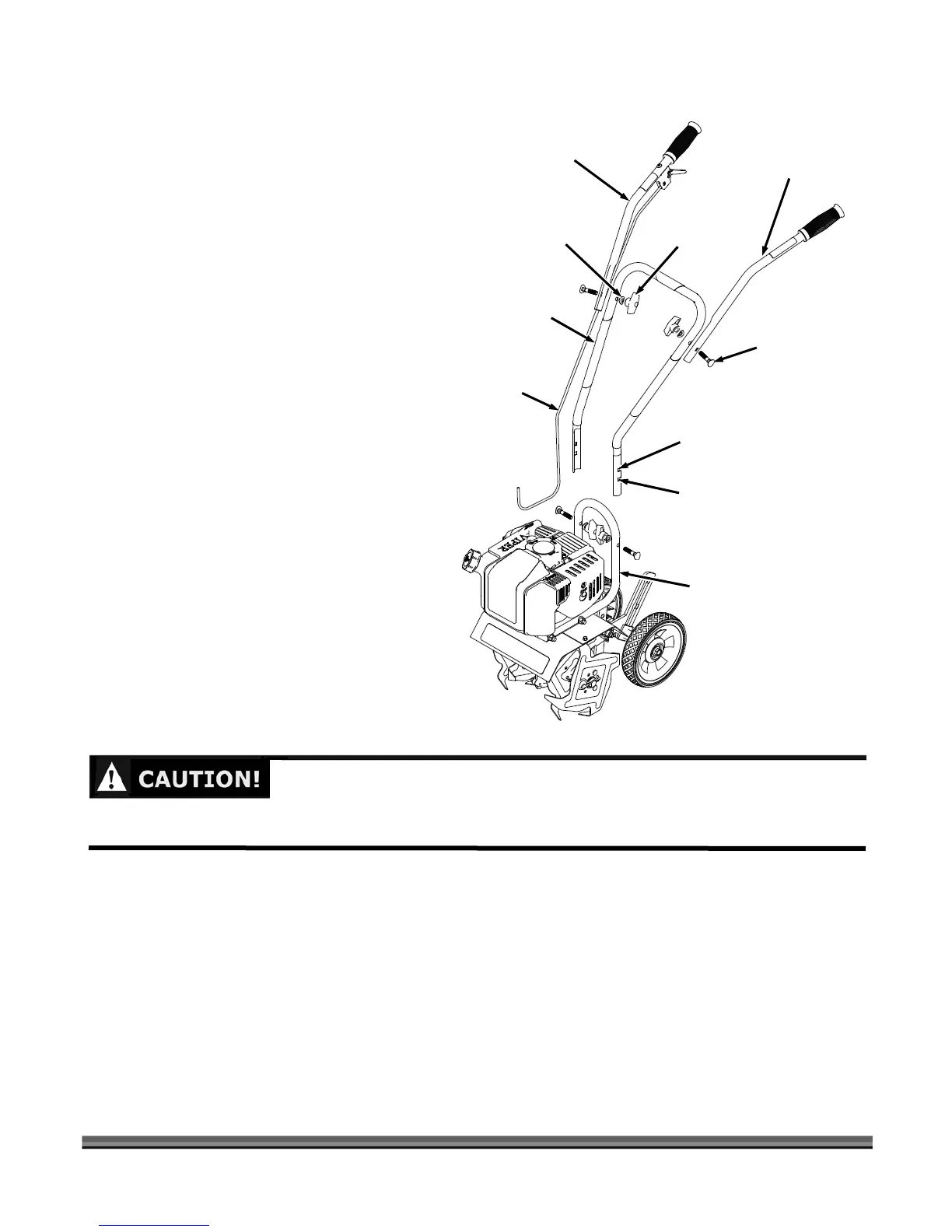

Figure 2
Upper Left Handlebar
Upper Right Handlebar
Curved Washer
(4 places)
T-Handle Nut
(4 places)
Handle Clamp Bolt
(4 places)
Throttle Cable
Middle Handlebar
Lower Handlebar
Low Position
Mounting Hole
s
High Position
Mounting Hole
s
