PRO-21 Battery Lawn Mower
Specifications
Model Number
CE75021XEN
Cutting Width
510mm (21")
Cutting Height 30 - 90 mm (1.2 -3.5"); 7 positions; single point adjustment
Motor Power
850 W brushless motor
Peak Voltage (V)
62.7
Battery
41422 (5 Ah) battery Included
Charger
41424 (5 Ah) charger included
Wheel Size Front: 180mm (7"); Rear: 250mm (10")
Wheel Material
PVC and rubber
Dimensions
57.25" Long X 21" Wide (Side Discharge Chute removed) X 40.5
Weight
30.5 kg

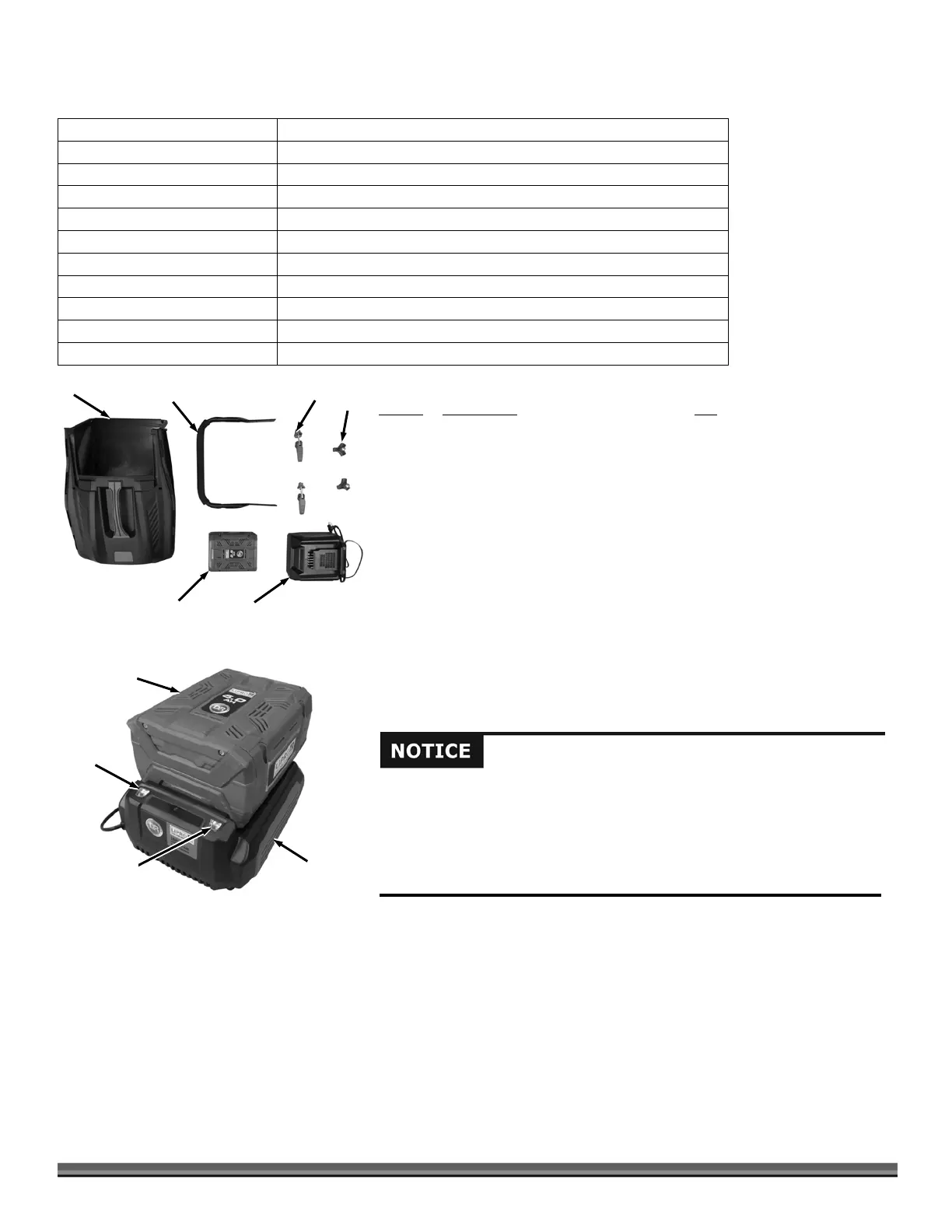

Parts Supplied in Shipping Box (Figure 3 and Table Below):
Item # Description Qty
1 ............. Grass Catcher Assembly ............................. 1
2 ............. Lower Handlebar .................................... 1
3 ............. Wrench Handle Assembly ...................... 1
4 ............. Rotary Knob Assembly ............................ 1
5* ........... 5.0 Ah Battery Charger ............................ 1
6* ........... 5.0 Ah Battery .......................................... 1
* Shipped separately
Compare the contents of the Shipping Box with the “Parts Supplied” list above.
If you have any questions please contact us at www.DRpower.com or call 1-800-
DR-OWNER (376-9637) for assistance.
Charge the Battery Pack before your first use
The DR PRO-21 Battery Lawn Mower uses a sealed, Lithium-Ion Battery Pack.
You MUST charge the Battery Pack for at least 90 minutes before you use the
Mower for the first time. If you do not charge it before using the Mower, the
Battery Pack’s charging capacity may decrease.
1. Connect the charger to a 120VAC outlet. When the Battery is not installed
(no load condition): The Red LED will be lit.
2. Insert the Battery into the Charger (Figure 4). Under normal charging the
Green LED will Blink.
3. When the Battery is fully charged, the Green LED will remain light,
indicating that charging is complete.
4. Unplug the Charger from the Outlet and remove the Battery.
Note: There are more detailed instructions for charging and maintaining the
Battery/Charger in Chapter 4.
