Chapter 3: Operating the DR PRO-21 Battery Lawn Mower
It may be helpful to better familiarize yourself with the features of your Mower by reviewing Figure 2 in Chapter 2 before beginning
the steps outlined in this chapter.
Your Mower is set up initially to Mulch. If you would like to use the side discharge or bagging features, go to the “Installing the
Side Discharge Chute” or “Installing the Bagger Assembly” section for details.

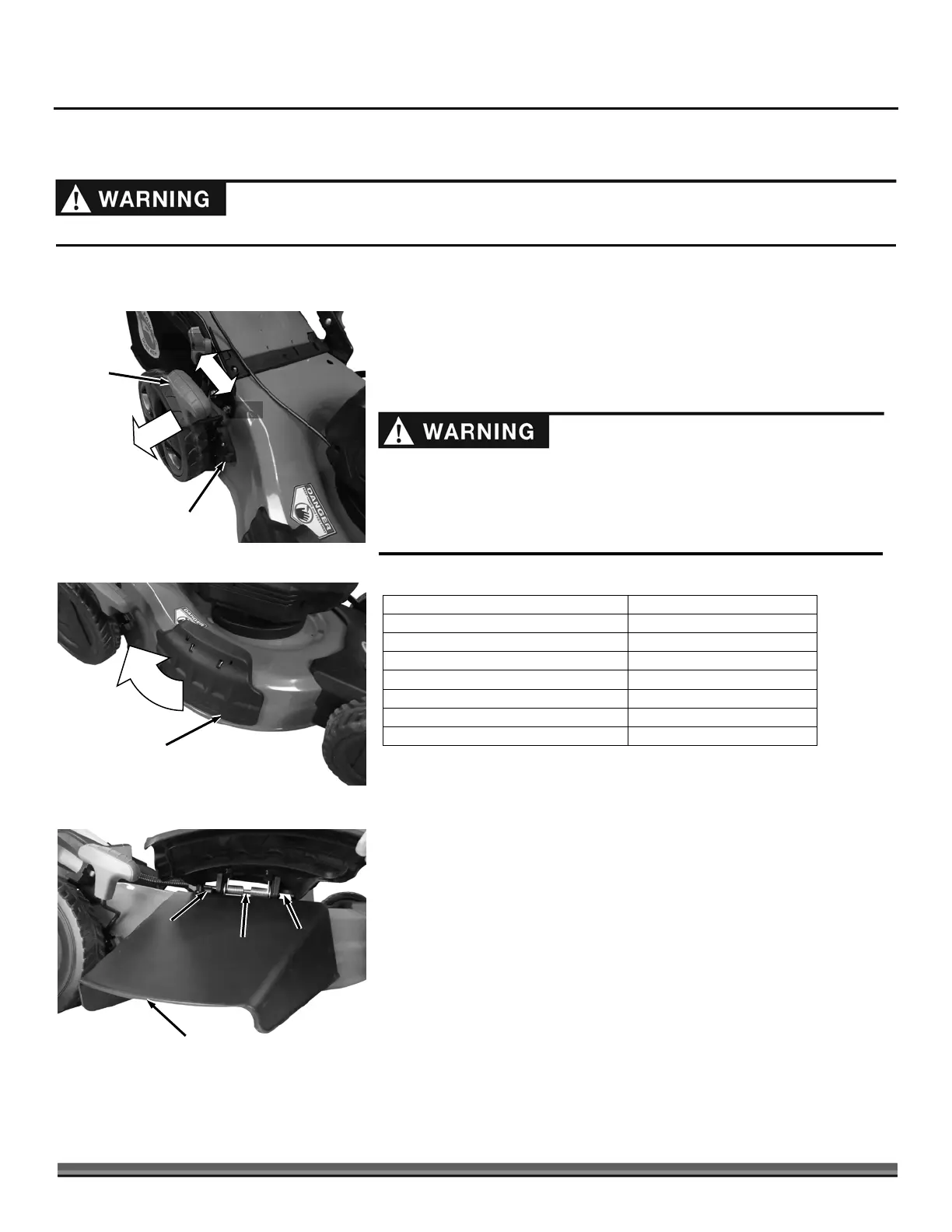

Adjusting the Cutting Height
Use the Height Adjustment Handle to set all four Wheels to the same cutting
height as desired (Figure 9). Pull Lever outward, move Lever to desired position,
and release Lever to lock in notch.
Notch Position
Cutting Height
1st: Fully towards rear of mower
1.2 inch (3.0 cm)
2nd:
1.6 inch (4.1 cm)
3rd:
2.0 inch (5.1 cm)
4th:
2.3 inch (5.8 cm)
5th:
2.7 inch (6.9 cm)
6th:
3.1 inch (7.9 cm)
7th: Fully towards front of mower
3.5 inch (8.9 cm)
Side Discharge Setup
The Side Discharge Chute can be installed to direct clippings out the right side
when the Bagger is not installed.
1. Lift the Side Discharge Cover to access the Hinge area (Figure 10).
2. Place the Tabs of the Side Discharge Chute under the Hinge Pin (Figure 11).
3. Lower the Side Discharge Cover onto the Side Discharge Chute.
4. Ensure that the Mulching Plug is installed when using the Side Discharge
Cover. See “Mulching Setup” on the next page.
Side Discharge
Chute
Figure 11
Tab
Tab
Hinge
Pin
Height
Adjustment
Handle
Figure 9
Height Locking Notches
Lower
Higher
2
1
Adjusting the cutting height may bring you into contact with the mowing
bla
de, causing serious injury.
•
Stop the Motor and remove the Safety Key.
•
Do not put your fingers under the housing when adjusting the cutting
height.
Read and understand all warnings listed
in “Chapter 2 General Safety Rules” before operating this Mower.
Side Discharge
Cover
Figure 10
