Handlebar Height Adjustment
We ship all DR Field and Brush Mowers with the handlebars in the highest
position setting. If you would like to lower the handlebars to the Low position
please follow these steps:
Tools Needed:
9/16” Wrench
1. Remove Rear Handlebar Bolt with a 9/16” Wrench from both handlebars
(Figure 13).
2. Loosen Front Handlebar Bolt on both handlebars but do not remove.
3. Align Handlebar Rear hole to Handlebar Low Position hole in the Frame.
4. Reinstall Rear Bolts on both handlebars.
5. Tighten Front and Rear Bolts on both handlebars.
Deck Pivot Bolt Check/Adjustment
There are two Deck Pivot Carriage Bolts on your DR Field and Brush Mower
Deck. The machine should have been shipped with both Bolts in the lowest
position (Figure 14). If they are not both in the lowest position, perform the
following procedures.
Note: The Carriage Bolts should be adjusted all the way down for easy to moderate
mowing. For aggressive mowing see “Cutting Brush and Saplings” in
Chapter 3.
1. Loosen both Locknuts using a 3/4" Wench as you hold the square portion of
the Carriage Bolts using a 1/2" Wrench (Figure 14). Turn the Locknut up
against the Bolt Head.
2. Turn the Carriage Bolts down using a 1/2" Wrench until the threaded end is
contacting the Deck Bracket.
3. Turn the Locknut down against Deck Bracket and hold the Carriage Bolt as
you tighten the Locknut.

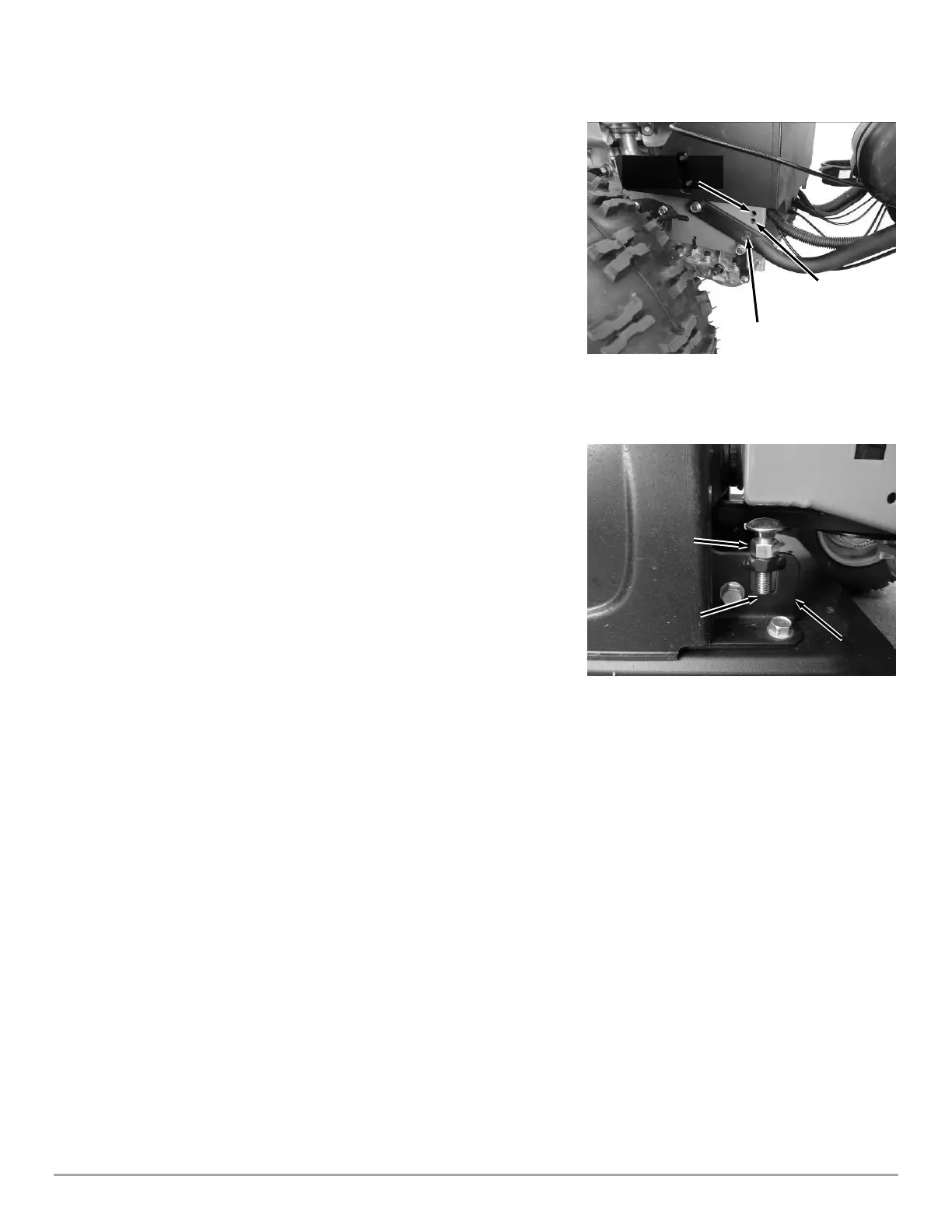

Handlebar Low
Position hole
Handlebar High
Position hole
Rear Handlebar
Bolt Removed
Carriage Bolt
Against Bracket
