Preparation
35
Operating Instructions Caleo, Software 2.n
Installing Accessories

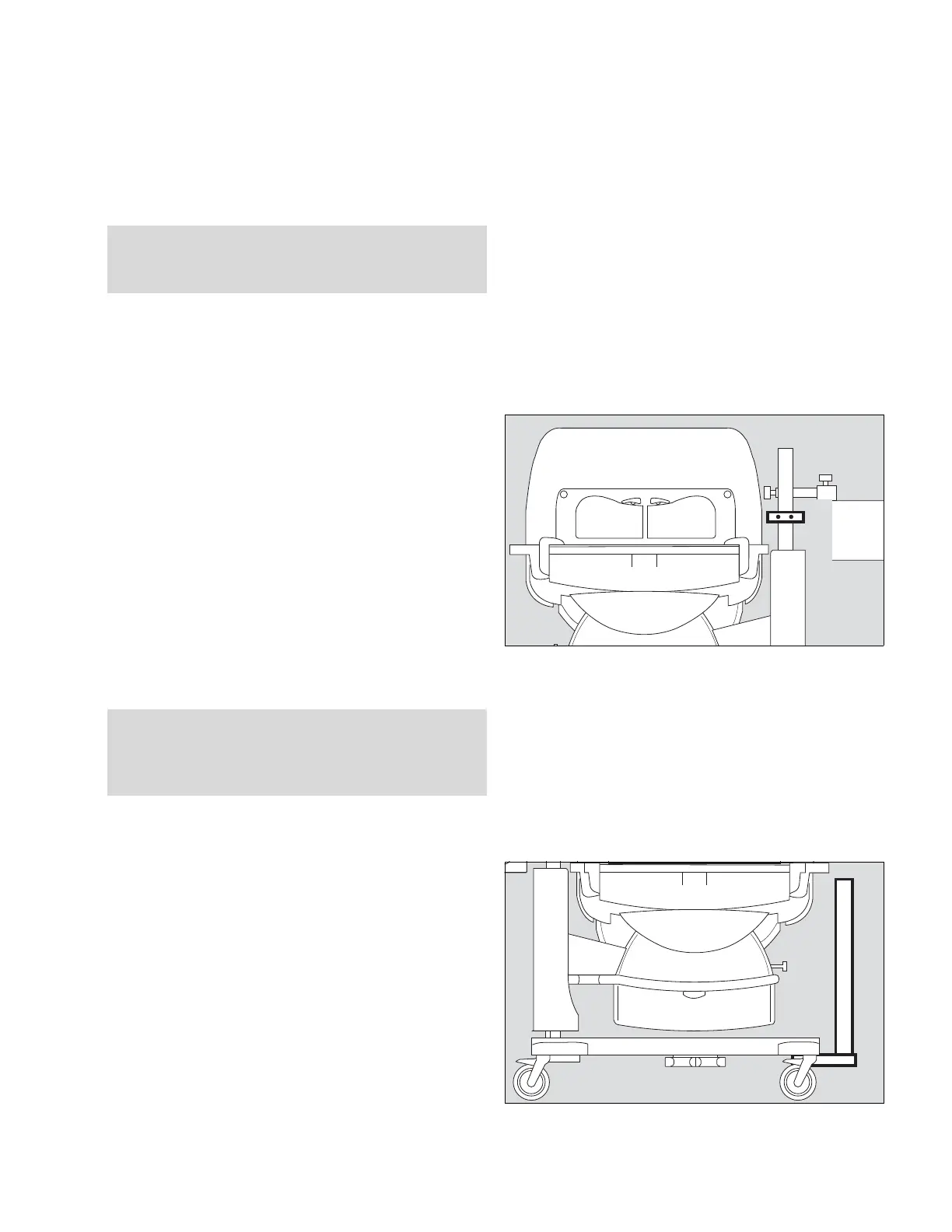

Compact mounting rail clamp (2M 85 337)
for 38 mm pole
The compact mounting rail clamp may only be installed by
qualified technical personnel.
For mounting such accessories as:
–O
2 analyzer
z Adjust height of compact rail clamp to the required height of
the accessories to be installed.
1 To attach compact rail to upright mounting support for
accessories, slide over pole, and
2 secure with screws.
Base-mounted accessory pole (2M 50 680)
The base-mounted accessory pole may only be installed
by qualified technical personnel.
z Mount as specified in the Installation Instructions.
For mounting such accessories as:
– additional pole extensions, see page 36,
– swivel table (2M 21 186), see page 34,
– monitor support shelf (2M 50 085), see page 37.
CAUTION !
Maximum load for compact rail clamp is 5 kg (11 lbs).
CAUTION !
Maximum load for base pole is 10 kg (22 lbs).
Max. distance between loads and pole: 150 mm (6 inches).
