Installing Accessories

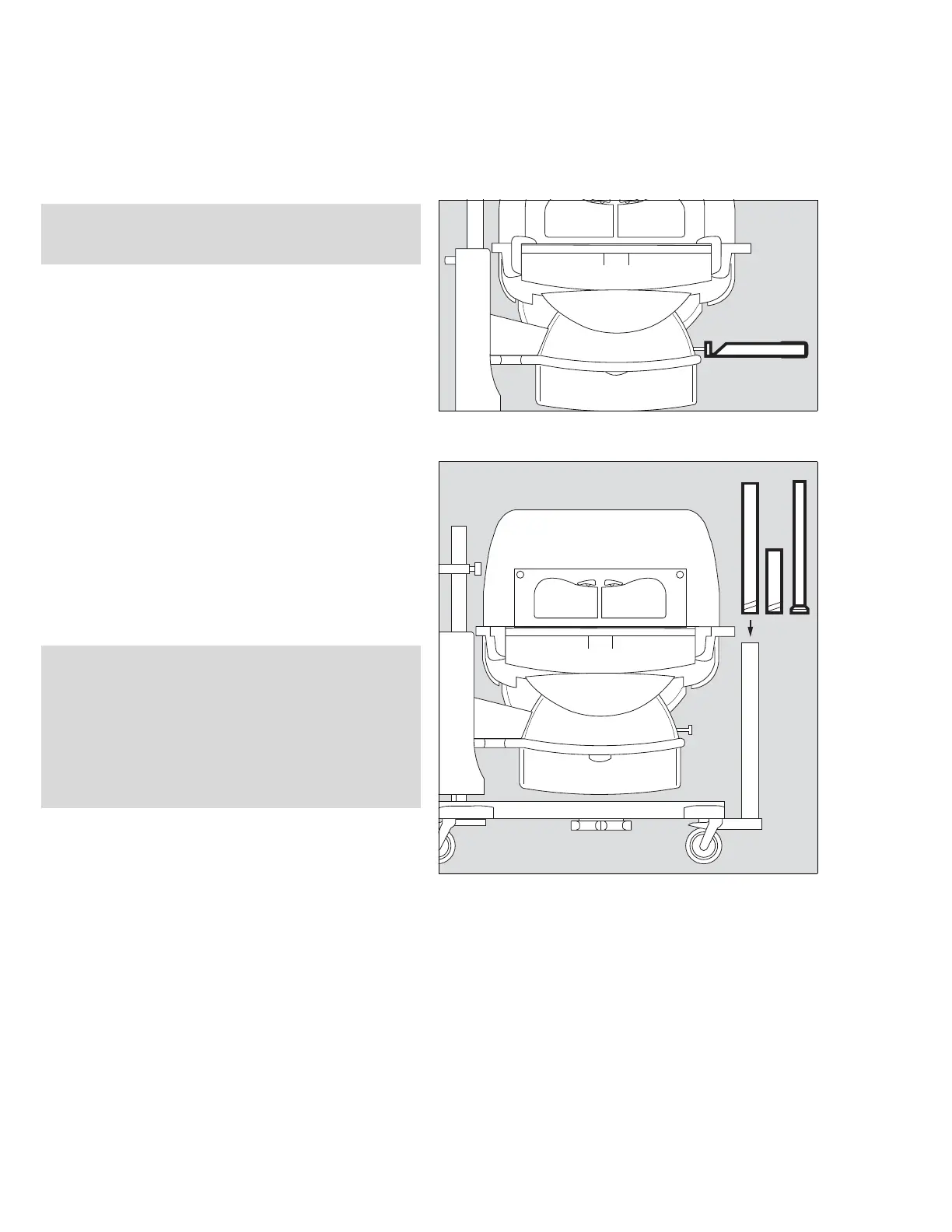

Instrument tray 3020 (M 24 678)
z Hang tray from a standard (5 x 25 mm) rail on the wall or on
the handle side and secure in position.
Pole extensions
The following poles can be attached to the base-mounted
accessory pole as extensions:
– pole 38 mm/600 (2M 50 691) or
– pole 38 mm/310 (2M 50 688) or
– pole 25 mm/600 (2M 50 689).
z Screw pole into the base pole as far as it will go and tighten
securely. Check that pole extension is securely held in
place.
CAUTION !
Maximum load for instrument tray is 2 kg (4.4 lbs).
CAUTION !
Maximum loads for pole extensions
– 38 mm/600 is 5 kg (11 lbs).
– 38 mm/310 is 5 kg (11 lbs).
– 25 mm/600 is 3 kg (6.6 lbs).
Max. distance between loads and pole: 150 mm (6 inches).
