Preparation
37
Operating Instructions Caleo, Software 2.n
Installing Accessories

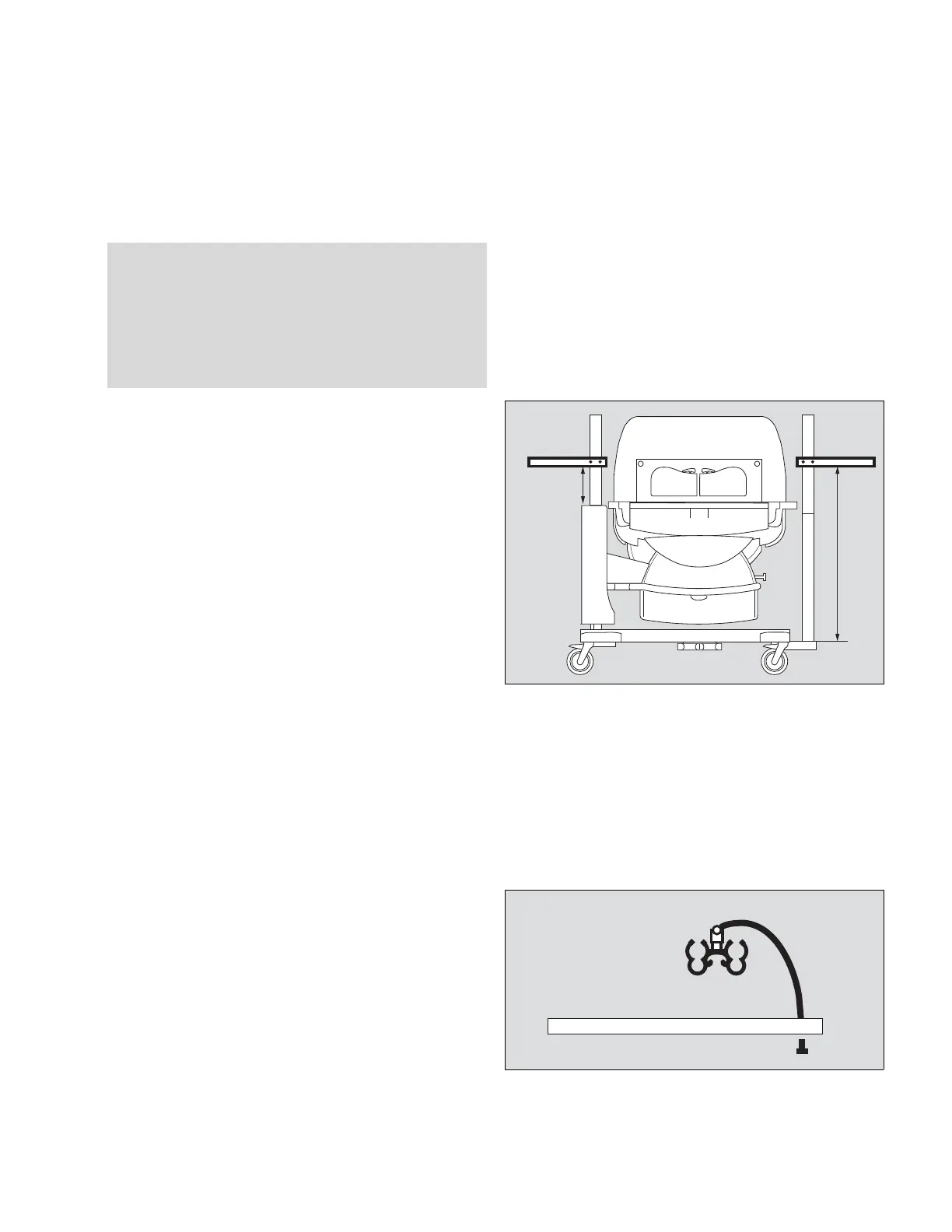

Monitor support shelf (2M 50 085)
The monitor shelf can be mounted on the wall side and/or the
handle side.
Shelf for monitor and ventilation equipment.
The monitor support shelf may only be installed by quali-
fied technical personnel.
Before attaching the monitor shelf:
– on the wall side, fit a second 38 mm pole (see page 32),
– on the handle side, fit a second base pole (see page 35)
with a 38 mm pole extension (see page 36).
z Mount shelf as specified in its Installation Instructions.
z To attach monitor support shelf, slide shelf over both 38 mm
poles and
1 secure in position with screws.
Flexible ventilator circuit support arm (84 11 075)
z Open front door.
z Raise bed and pull it out of the incubator.
z Push mattress slightly to one side.
z Place the support arm in one of the mounting holes in the
bed and fasten from underneath with its locking screw.
z Re-install the bed in the incubator and close front door.
NOTE: The circuit support arm may be installed in any of the
four corners of the bed.
2 Clip ventilation circuits and cables into the clips at the end of
the support arm.
CAUTION !
Maximum load for monitor shelf is 20 kg (44 lbs).
Do not exceed the maximum installation height.
Vertical distance between monitor shelf and stand must not
exceed 20 cm (7.8 inches) on the wall side and 100 cm
(39 inches) on the handle side (see page 170).
max. 20 cm
(7.8 inches)
max. 100 cm (39 inches)
11
