Preparation
46
Operating Instructions Caleo, Software 2.n
Use of Doors, Ports, and Bed Adjusting Mechanism

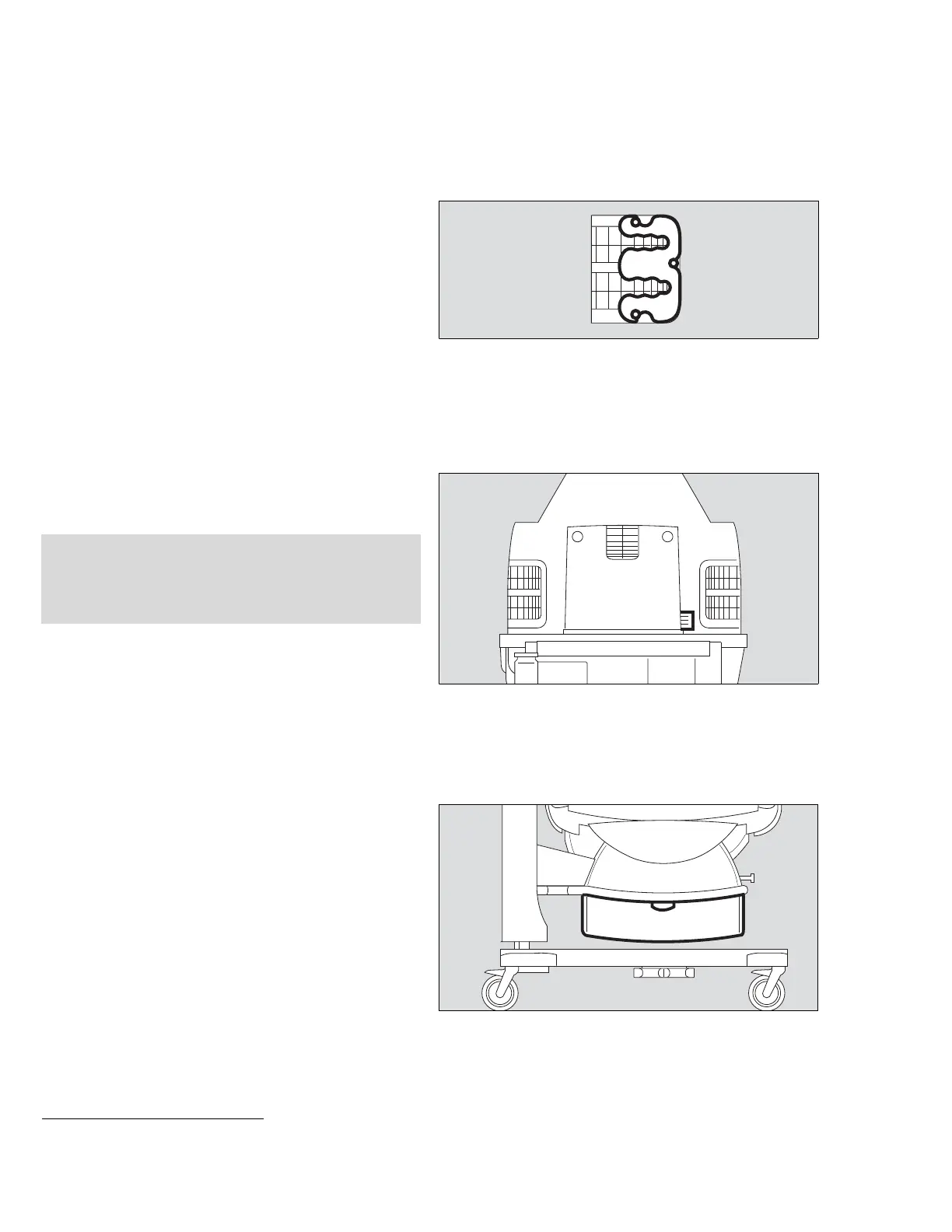

Ventilation hose strain relieves*
The ventilation hose strain relieves (2M 51 140) can only be
attached to hose modules with pins (2M 51 139). Ventilation
hose strain relieves act as guides for hoses and cables.
Drainage module*
The drainage module (2M 51 142) can only be mounted on the
pillar elements (2M 51 154 and 2M 51 156).
The drainage module can be used to fit hoses for draining off
liquids.
z Open the side door.
1 Fit the hoses in the drainage module
z Close the side door.
Drawer (2M 50 565)
Drawer for storing items required for nursing or treatment.
NOTE: The drawer is accessible from both sides.
To open the drawer:
2 Grasp drawer by its handle and pull it out as far as it will go.
z Place the required material in the drawer.
To close the drawer:
2 Push drawer back in using the handle.
* Available option
WARNING !
Make sure that the installed hoses are routed freely and
safely.
