Preparation
45
Operating Instructions Caleo, Software 2.n
Use of Doors, Ports, and Bed Adjusting Mechanism

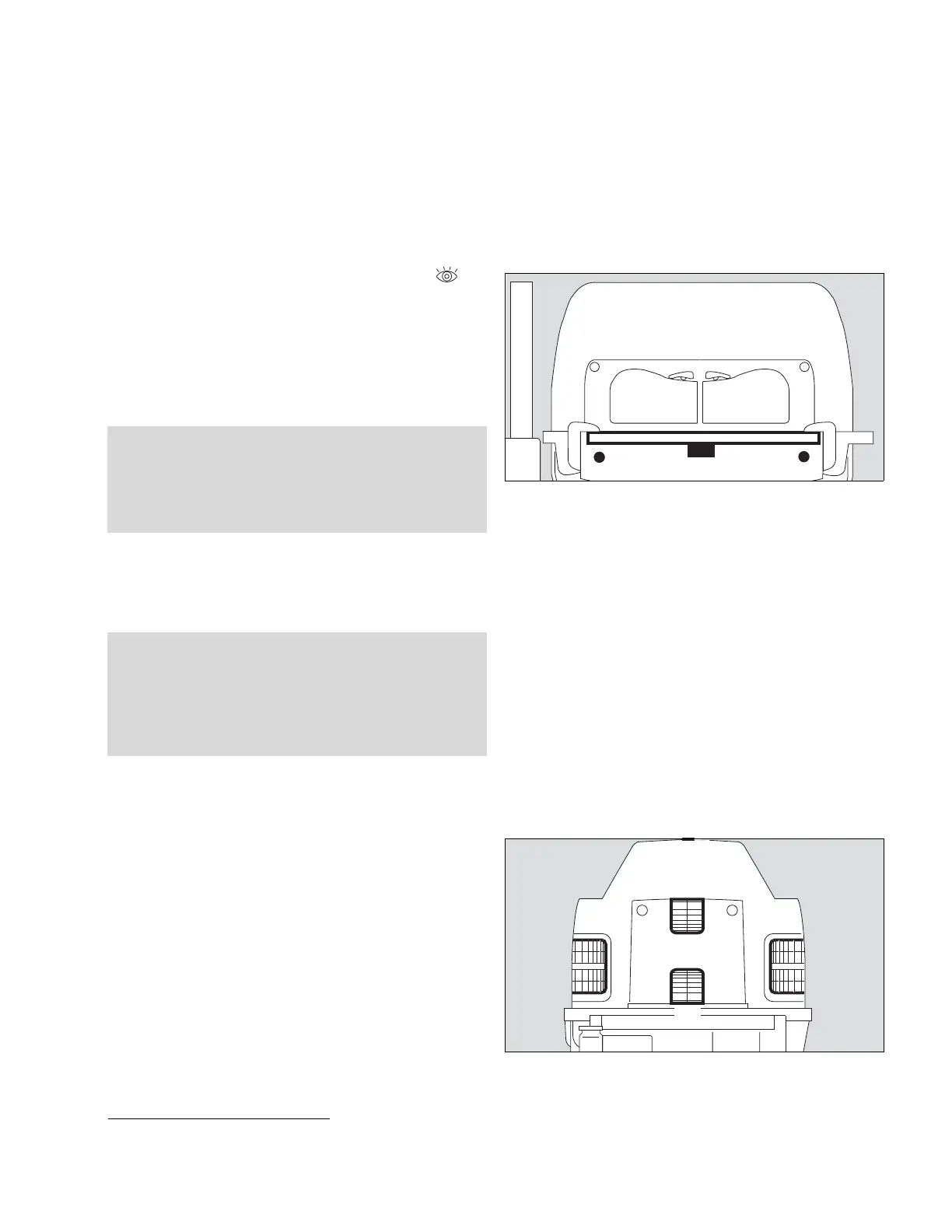

Using the x-ray drawer
NOTE: The x-ray drawer can be pulled out while the front door
is either open or closed.
To open the x-ray drawer:
1 Turn both knobs to the horizontal position marked ,
2 Pull drawer out by its recessed handle or by the knobs.
z Insert or remove the x-ray cassette.
NOTE: Recesses are provided in the x-ray drawer for
positioning.
To close the x-ray drawer:
2 Push drawer inwards under the bed until you can feel it click
into place.
Incubator access grommets
3 Single U-grommet (2M 50 412)
4 Tubing grommet (2M 50 412) for high-frequency ventilation*
5 Double U-grommets (2M 50 385)
6 Feeding grommet, hood (2M 51 109) can only be used if a
double wall is not attached to the canopy.
z Route cables, hoses, or tubes through the flexible
grommets.
To route ventilator circuits and cables through Caleo, use the
ventilation circuit support arm (see page 37).
WARNING !
Do not use the x-ray drawer as a writing support or as a
bed for the infant. Risk of equipment damage or patient
injury.
WARNING !
Always ensure that the x-ray drawer is pushed all the
way in! Otherwise the ducted flow of warm air will be
interrupted, and the infant may be warmed or cooled
excessively.
* optional equipment feature
