Dräger X-AM 2500 Technical Manual

Description
Dräger X-am 2500 5
2 Description

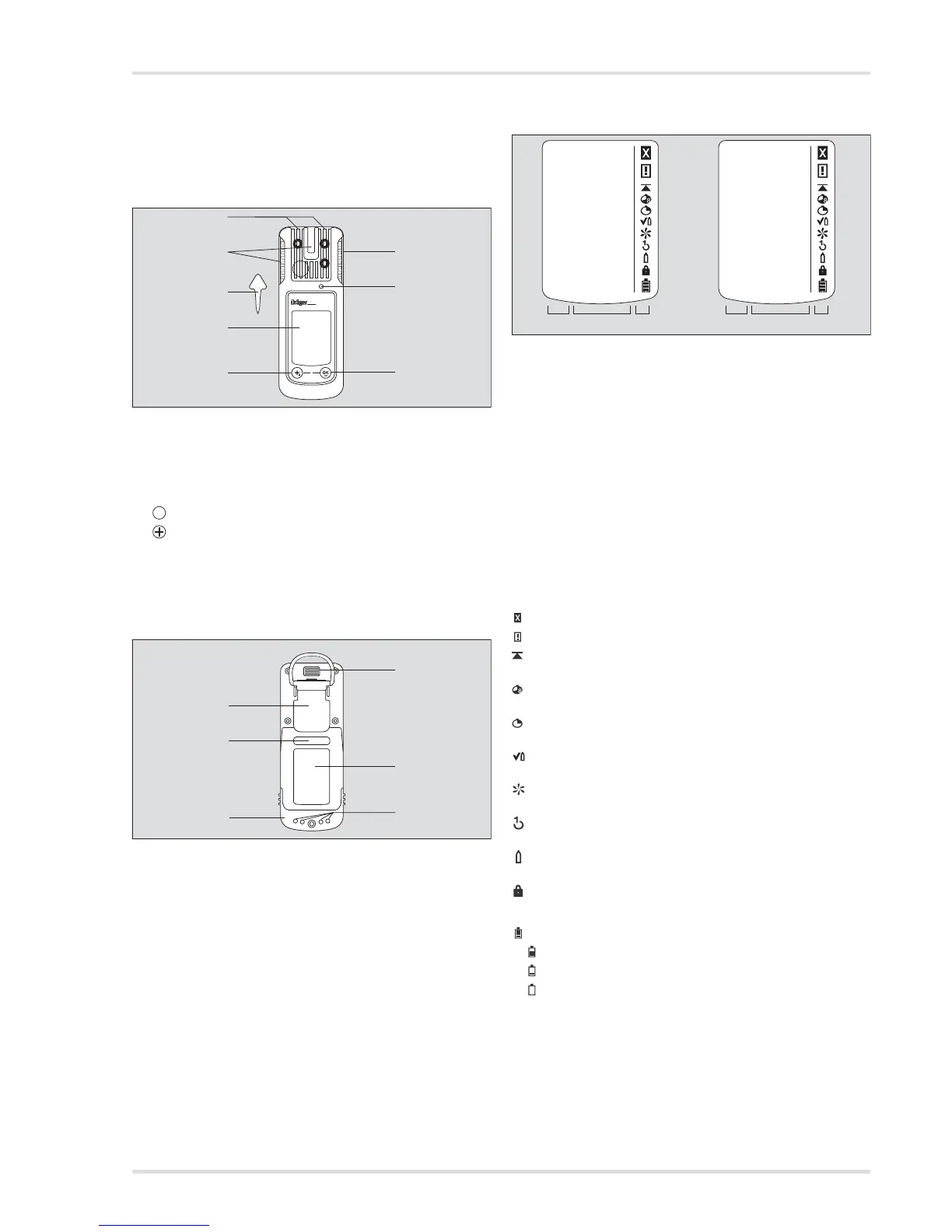

2.1 Product overview
2.1.1 Front
2.1.2 Rear side
2.1.3 Display
Display for 4 measuring channels:
otherwise:
The following only shows the instrument version with
4 measuring channels.
2.1.4 Special symbols
1
Gas entry
2
Alarm LED
3
Horn
4
key
5
key
6
Display
7
Tool for changing sensor
1
IR interface
2
Fastening clip
3
Nameplate
4
Charging contacts
5
Power pack
6
Serial no.
00133366.eps
0
1
2
6
5
4
3
2
X-am 2500
7
OK
00233366.eps
2
1
4
6
3
5
1
Measured gas display with unit
2
Measuring value display
3
Special symbols
4
Measured gas display
5
Measured value display with unit
6
Special symbols
Fault message, see section 4.1 on page 16
Warning message, see section 4.1 on page 16
Display of peak values for all measured gases,
see section 4.1 on page 16
The exposure evaluation display (TWA) for measured
gases, e.g. H
2
S and CO, see section 4.1 on page 16
The exposure evaluation display (STEL) for measured
gases, e.g. H
2
S und CO, see section 4.1 on page 16
The instrument is set to the bump test function,
see section 3.4 on page 13
The instrument is set to the fresh air calibration function,
see section 5.2 on page 17
The instrument is set to the 1-button calibration/
adjustment function, see section 5.3 on page 18
The instrument is set to the single gas calibration
function, see section 5.3.1 on page 19
Function for password input is active, see section 4.4
on page 16
Battery / rechargeable battery 100 % full
Battery / rechargeable battery 2/3 full
Battery / rechargeable battery 1/3 full
Battery / rechargeable battery empty
00333366_de.eps
456
CH4
O 2
CO
123
CH4 %UEG
0.0
O2 Vol%
20.9
CO ppm
0.0
H2S ppm
0.0
%UEG
0.0
Vol%
20.9
ppm
0.0

Dräger X-AM 2500 Specifications

General

Operating Temperature	-20°C to +50°C
Alarm	Visual, audible, and vibration alarms
Protection Class	IP67
Weight	Approx. 220 g
Detection Principle	Electrochemical
Gases Detected	O2, CO, H2S, Ex
Detection Range	Varies by sensor type
Resolution	O2: 0.1% vol, CO: 1 ppm, H2S: 1 ppm, Ex: 1% LEL
Response Time	< 15 seconds (typical)
Humidity Range	10 to 95% RH non-condensing
Battery Life	Up to 12 hours
Power Supply	Rechargeable NiMH battery or alkaline batteries
Certifications	ATEX, IECEx
Storage Temperature	-20 to +50 °C (-4 to +122 °F)
