• DO NOT use this product if it is functioning abnormally.
Have it checked by a qualied and authorised
technician before next use.
• DO NOT exceed the maximum rated capacity per
function for this device as it may expose you to a shock
hazard.
• Ensure that the probe contacts are disconnected from
the load or test circuit before moving the function dial.
• Assess any specic additional risks to the operator
before each use.
• DO NOT expose this product to excessive ambient
temperature, high humidity, ammable substances or
environments that produce a strong magnetic eld.
• DO NOT use this product around explosive gases,
vapours or dust.
• DO NOT immerse this device in water or expose it to wet
conditions.
• ALWAYS wear protective insulated gloves while using
this product.
• ALWAYS keep your ngers behind the guards on the
probes during use.
• ALWAYS remove the contact cables from the device
before removing the rubber cover or opening the back
panel.
• DO NOT operate this device with the rear housing open
or missing and DO NOT use it if the rear housing cannot
be closed properly.
• NEVER insert the probe contacts into the device
terminals.
• DO NOT abuse, mutilate or burn the battery.
• Remove the batteries when the product is stored for
extended periods.
• DO NOT attempt to repair this device; it contains no
user-serviceable parts.
• Keep this product out of reach of children.
WARNING! ALWAYS ensure that the operator is
not in contact with the ground while taking
measurements, using insulating materials to
prevent the current from earthing.
5.IdenticationandUnpacking
(3)
(2)
(4)
(5)
(6)
(7)
(1)
(8)

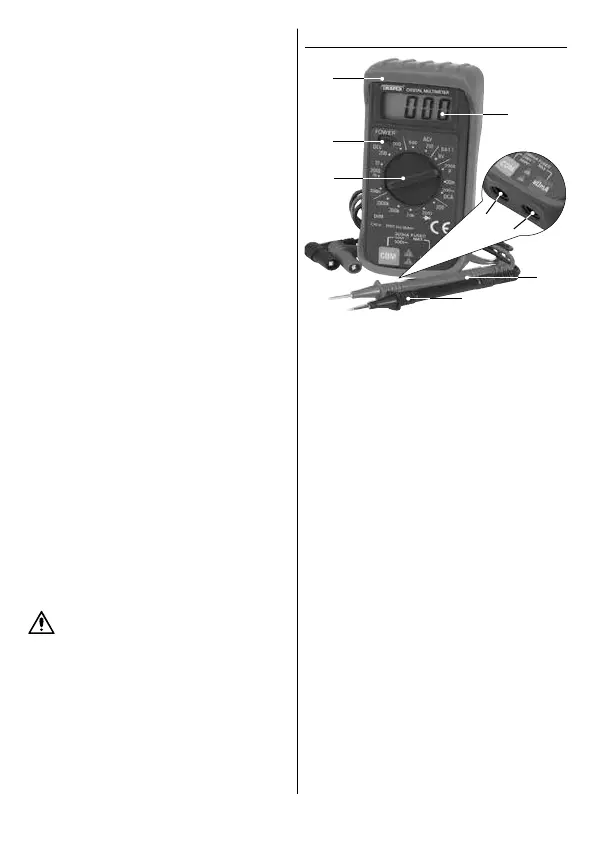

5.1 Product Overview
1. Common earth probe terminal
2. Function dial
3. LCD screen
4. Negative (black) probe
5. Positive (red) probe
6. Power switch
7. Rubber cover
8. Voltage, amperage and resistance probe terminal
5.2 What’s in the Box?
Carefully remove the product from the packaging and
examine it for any signs of damage that may have occurred
during shipment.
Before assembling the product, lay the contents out and
check them against the parts listed below. If any part is
damaged or missing, do not attempt to use the product.
Please contact the Draper Helpline; contact details can be
found at the back of this manual.
A. 1 × Digital multimeter
B. 1 × Positive (red) probe contact
C. 1 × Negative (black) probe contact
D. 1 × 12V battery (type 23A)
Please visit drapertools.com for our full range of
accessories and consumables.
5.3 Packaging
Keep the product packaging for the duration of the
warranty period in case the product needs to be returned
for repair.
– 4 –
